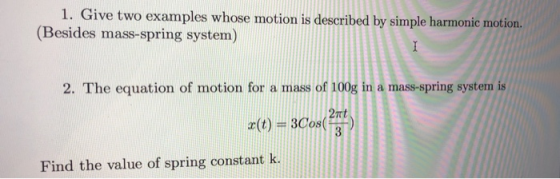

1. Give two examples whose motion is described by simple harmonic motion. (Besides mass-spring system) 2....

Question

Question

science physics

Answer 1

Answer #1

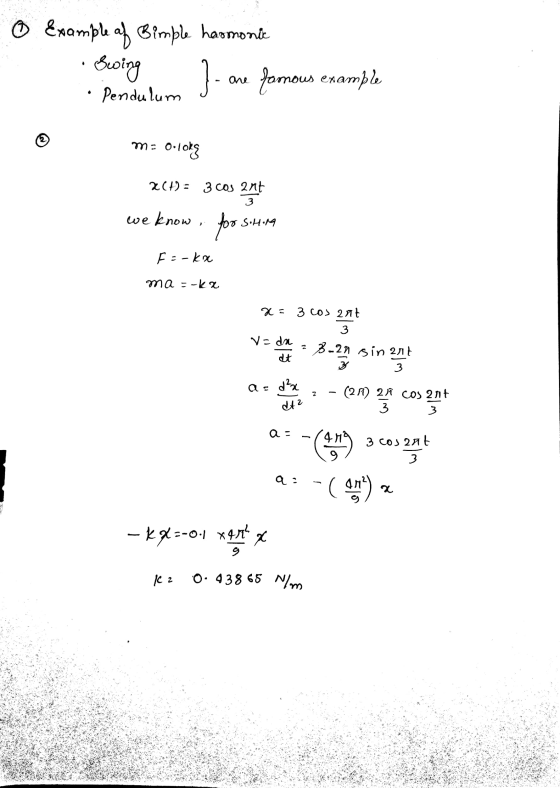

0 Example of Simple harmonie famous example · Swing } one Pendulum m= 0 lokg 2(1): 3 cos ant 3 we know, S.H.M for F:- ka ma =

Answer 2

Similar Homework Help Questions

2. The equation of motion for a mass of 100g in a mass-spring system is 27t....

2. The equation of motion for a mass of 100g in a mass-spring system is 27t. X(t) = 3Cos() Find the value of spring constant k.
Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed...

Problem 1 (Harmonic Oscillators) A mass-damper-spring system is a simple harmonic oscillator whose dynamics is governed by the equation of motion where m is the mass, c is the damping coefficient of the damper, k is the stiffness of the spring, F is the net force applied on the mass, and x is the displacement of the mass from its equilibrium point. In this problem, we focus on a mass-damper-spring system with m = 1 kg, c-4 kg/s, k-3 N/m,...
Problem3 A (2+0.1y) kg block attached to a spring undergoes simple harmonic motion described by x...

Can you please answer both questions, Y=0 Problem3 A (2+0.1y) kg block attached to a spring undergoes simple harmonic motion described by x (30 cm) cos[(6.28 rad/s)t + /4) Determine (a) the amplitude, (b) the spring constant, (c) the frequency, (d) the maximum speed (e) maximum acceleration of the block, and (e) the total energy of the spring-block. of the block Problem 4 A block attached to a spring, undergoes simple harmonic motion with a period of 1.5 + y)...

During simple harmonic motion, the position, x, in meters, of the mass in a spring-mass system,...

During simple harmonic motion, the position, x, in meters, of the mass in a spring-mass system, changes according to the equation: x = (0.25) cos (0.523 t). a) Find the period. T_s of this motion. b) Calculate the time when the position of the mass is +0.2 m from equilibrium.
Consider a mass-spring-damper system whose motion is described by the following system of differe...

Consider a mass-spring-damper system whose motion is described by the following system of differentiat equations [c1(f-k)+k,(f-х)-c2(x-9), f=f(t), y:' y(t) with x=x( t), where the function fit) is the input displacement function (known), while xit) and yt) are the two generalized coordinates (both unknown) of the mass-spring-damper systenm. 1. Identify the type of equations (e.g. H/NH, ODE/PDE, L/NL, order, type of coefficients, etc.J. 2. Express this system of differential equations in matrix form, assume f 0 and then determine its general...
A ball and spring system is moving with simple harmonic motion, described by the equation x=4cos(6πt),...

A ball and spring system is moving with simple harmonic motion, described by the equation x=4cos(6πt), where x is in cm and t is in seconds. What is the maximum velocity of the ball?

z waqod A 2- kg block attached to a spring undergoes simple harmonic motion described by...

z waqod A 2- kg block attached to a spring undergoes simple harmonic motion described by = (30 cm) cos[(6.28 rad/s)t + /4]. Determine (a) the amplitude, (b) the spring constant, (c) the frequency, (d) the maximum speed of the block, (e) maximum acceleration of the block, and (e) the total energy of the spring-block. Problem 3 A block attached to a spring, undergoes simple harmonic motion with a period of 1.5 s, and amplitude of 20 cm. The mechanical...
Part 2: (Theory) Simple Harmonie Motion in a Mass-Spring System Sketch a simple horizontal, mass-spring system...

Part 2: (Theory) Simple Harmonie Motion in a Mass-Spring System Sketch a simple horizontal, mass-spring system with the mass displaced slightly from its equilibrium position (x=0). Draw the forces acting on the mass (you should have three; neglect friction). Now imagine that the system is released from rest. According to Newton's Second Law, F=ma, the equation of motion for the mass can be written as: (1) m dr 1. By direct substitution, show explicitly that x(t) - Acos(wt + )...
A ball and spring system is moving with simple harmonic motion, described by the equation x...

A ball and spring system is moving with simple harmonic motion, described by the equation x = 4 cos(6t). What is the angular velocity of the oscillation system? Select the correct answer ?6? rads/sec. O 3 rads/sec 4 rads/sec. newer Your

An object–spring system moving with simple harmonic motion has an amplitude A. (a) What is the...

An object–spring system moving with simple harmonic motion has an amplitude A. (a) What is the total energy of the system in terms of k and A only? E : (b) Suppose at a certain instant the kinetic energy is twice the elastic potential energy. Write an equation describing this situation, using only the variables for the mass m, velocity v, spring constant k, and position x. (c) Using the results of parts (a) and (b) and the conservation of...
