1) Determine the tension in each rope-cable if the crate has a weight of 350 lb....

Question

Question

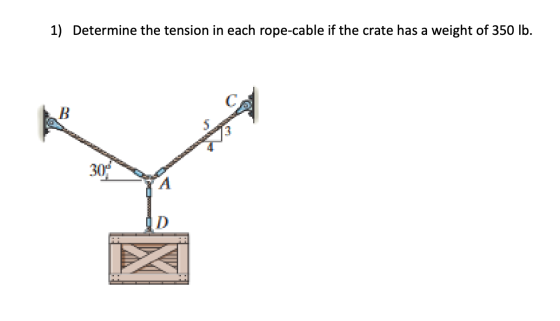

1) Determine the tension in each rope-cable if the crate has a weight of 350 lb. 307

engineering Civil-Engineering

Answer 1

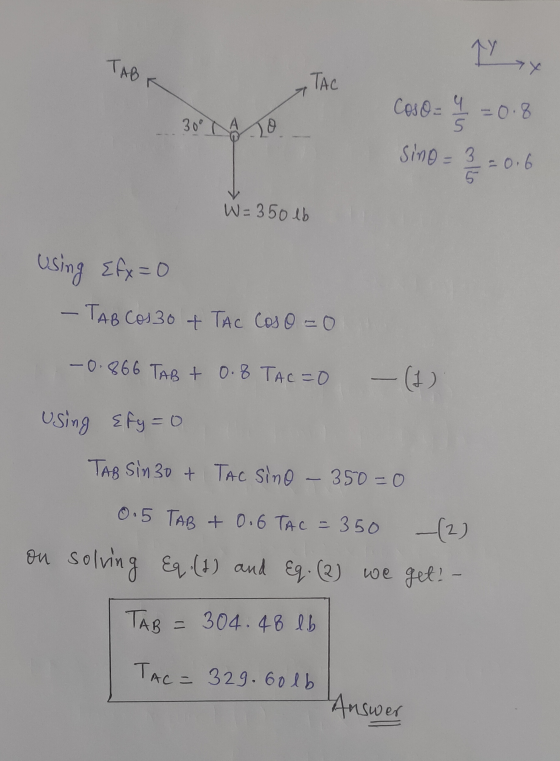

Answer #1

Plzzz give Positive Rating ?.. Thanks

Answer 2
