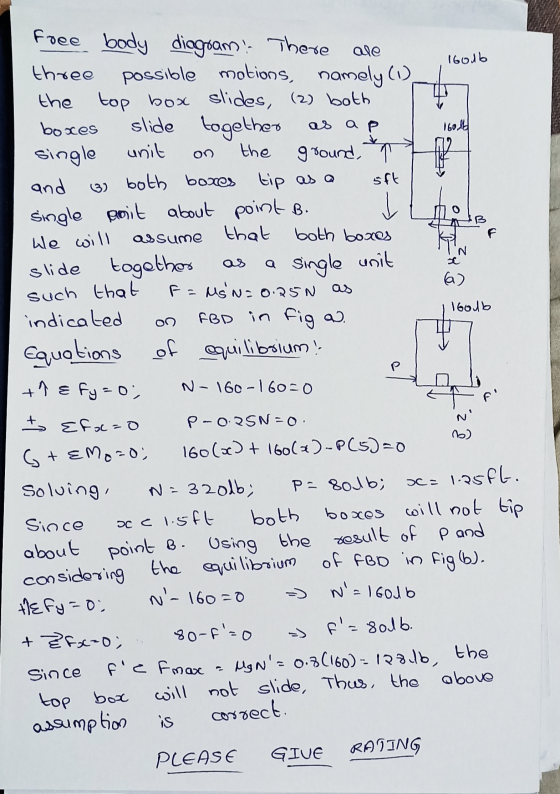

If each box weighs 160 lb ,
determine the least horizontal force P that the man must exert on
the top box in order to cause motion. The coefficient of static
friction between the boxes is μs = 0.80, and the coefficient of
static friction between the box and the floor is μ′s = 0.25.

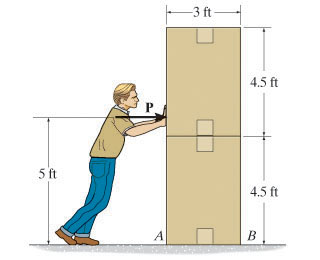

(Figure 1)
Homework Answers
Add Answer to:
If each box weighs 160 lb ,
determine the least horizontal force P that the man...
Part A If each box weighs 160 lb , determine the least horizontal force P that...
Part A If each box weighs 160 lb , determine the least horizontal force P that the man must exert on the top box in order to cause motion. The coefficient of static friction between the boxes is Ms = 0.80, and the coefficient of static friction between the box and the floor is M's = 0.25. (Figure 1) Express your answer with the appropriate units. μΑ ? re 1 of 1 P= Value Units -3 ft Submit Request Answer...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in units of lb) necessary to cause both boxes to tip as a single unit. The coefficient of static friction between the boxes is . -0.62, and the coefficient of static friction between the bottom box and the floor is H. -0.27. 4.5 ft 5 ft 4.5 ft
12.2) What is the smallest horizontal force, P, that the person must exert on the top...
12.2) What is the smallest horizontal force, P, that the person must exert on the top box to initiate motion (slip or tip). Each box weighs 125 lb. The coefficient of static friction between the boxes is 0.5 and the coefficient of static friction between the box and the floor is 0.35.
csn someone please help me solve this probkem? 1 of 1 -3 ft 4.5 ft 5...
csn someone please help me solve this probkem?
1 of 1 -3 ft 4.5 ft 5 ft 4.5 ft A B Part A it each box weighs 180 lb. determine the least horizontal force Phat the man must exert on the top box in order to cause motion. The collient of static friction between the boxes is 0.50, and the core of static friction between the box and the floor is 0.15 Figure 1) Express your answer with the appropriate...
The 75-kg man pushes on the 150-kg crate with a horizontal force F. The coefficients of...
The 75-kg man pushes on the 150-kg crate with a horizontal force F. The coefficients of static and kinetic friction between the crate and the surface are μs = 0.3 and μk = 0.1, and the coefficient of static friction between the man's shoes and the surface is μ′s = 0.8. What is the greatest acceleration the man can give the crate if the man's acceleration is zero at this instant? I keep getting 1.96 but it says answer is...
A horizontal force of 207 N is applied to a 63 kg box on a hard...
A horizontal force of 207 N is applied to a 63 kg box on a hard level floor. The coefficients of static friction and kinetic friction between the box and the floor are μs = 0.55 and μk = 0.35. What is the magnitude of the force of friction on the box?
3. Determine the maximum force P that can be applied without causing movement of the 300-lb...
3. Determine the maximum force P that can be applied without causing movement of the 300-lb crate that has a center of gravity at G. The coefficient of static friction at the floor is Is = 0.4. (20 Points) 1.5 ft 1.5 ft 2.5 ft P- 'T 4.5 ft 3.5 ft
A box that weighs 16N is resting on a horizontal surface. If a force of 6N...
A box that weighs 16N is resting on a horizontal surface. If a force of 6N is applied horizontally to the box and the coefficient of kinetic friction between the box and the surface is 0.4, the acceleration of the box will be:
Problem 3. Determine the smallest force P that must be applied in order to cause the...
Problem 3. Determine the smallest force P that must be applied in order to cause the 150-lb uniform crate to move. The coefficient of static friction between the crate and the floor is (s 0.5. 3 ft
1. A wagon weighs 12.0 lb, and the coefficient of rolling friction between the wheels and...
1. A wagon weighs 12.0 lb, and the coefficient of rolling friction between the wheels and the floor is 0.140. What horizontal pull is need to keep the wagon rolling in a straight line at 2.00 ft/s? 2. A wagon weighs 50.0 N, and the coefficient of rolling friction between the wheels and the level floor is 0.150. What horizontal pull is need to keep the wagon rolling uniformly?
Part A If each box weighs 160 lb , determine the least horizontal force P that the man must exert on the top box in order to cause motion. The coefficient of static friction between the boxes is Ms = 0.80, and the coefficient of static friction between the box and the floor is M's = 0.25. (Figure 1) Express your answer with the appropriate units. μΑ ? re 1 of 1 P= Value Units -3 ft Submit Request Answer...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in units of lb) necessary to cause both boxes to tip as a single unit. The coefficient of static friction between the boxes is . -0.62, and the coefficient of static friction between the bottom box and the floor is H. -0.27. 4.5 ft 5 ft 4.5 ft
12.2) What is the smallest horizontal force, P, that the person must exert on the top box to initiate motion (slip or tip). Each box weighs 125 lb. The coefficient of static friction between the boxes is 0.5 and the coefficient of static friction between the box and the floor is 0.35.
csn someone please help me solve this probkem?
1 of 1 -3 ft 4.5 ft 5 ft 4.5 ft A B Part A it each box weighs 180 lb. determine the least horizontal force Phat the man must exert on the top box in order to cause motion. The collient of static friction between the boxes is 0.50, and the core of static friction between the box and the floor is 0.15 Figure 1) Express your answer with the appropriate...
3. Determine the maximum force P that can be applied without causing movement of the 300-lb crate that has a center of gravity at G. The coefficient of static friction at the floor is Is = 0.4. (20 Points) 1.5 ft 1.5 ft 2.5 ft P- 'T 4.5 ft 3.5 ft
Problem 3. Determine the smallest force P that must be applied in order to cause the 150-lb uniform crate to move. The coefficient of static friction between the crate and the floor is (s 0.5. 3 ft
