3. Determine the maximum force P that can be applied without causing movement of the 300-lb...
3. Determine the maximum force P that can be applied without causing movement of the 300-1b...

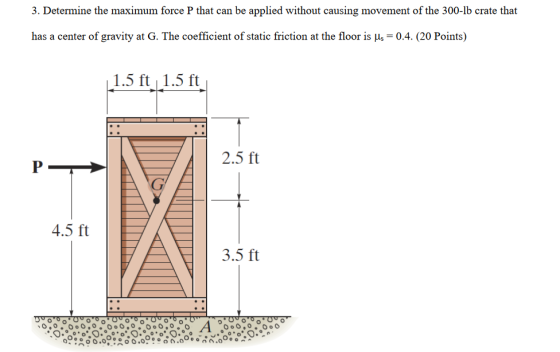

3. Determine the maximum force P that can be applied without causing movement of the 300-1b crate that has a center of gravity at G. The coefficient of static friction at the floor is Hs = 0.4.(20 Points) 1.5 ft_1.5 ft 2.5 ft P1 4.5 ft 3.5 ft A

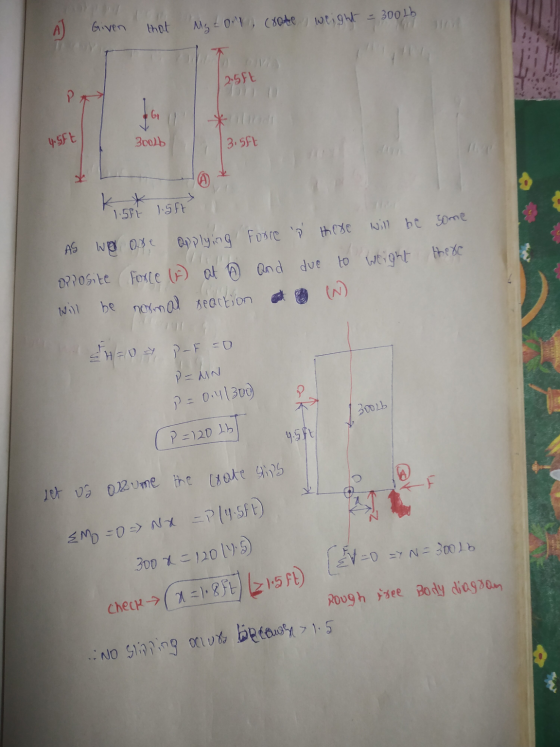

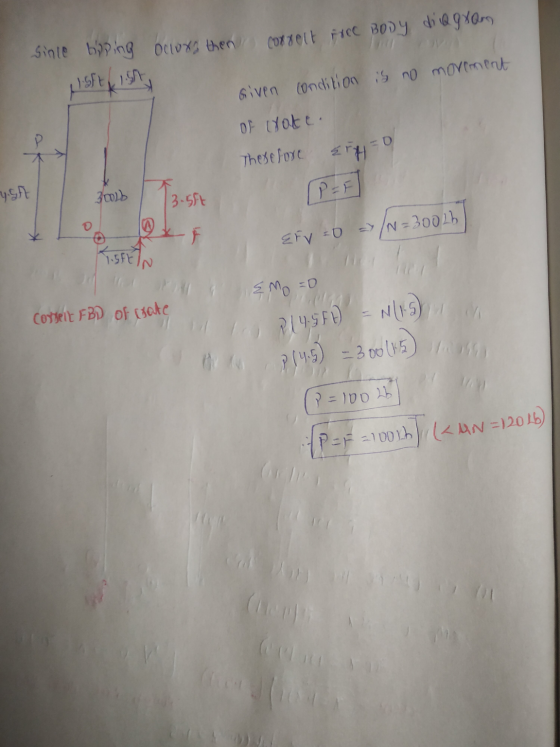

All calculations need the counting processand Free Body Diagram. 3. Determine the maximum force P that...
All calculations need the
counting processand Free Body Diagram.
3. Determine the maximum force P that can be applied without causing movement of the 300-lb crate that has a center of gravity at G. The coefficient of static friction at the floor is Is = 0.4. (20 Points) 1.5 ft 1.5 ft 2.5 ft P- 'T 4.5 ft 3.5 ft
B 30 Part C Determine the maximum force P that can be applied without causing the...
B 30 Part C Determine the maximum force P that can be applied without causing the two 51-kg crates to move. The coefficient of static friction between each crate and the ground is his = 0.33 Express your answer to three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer
Problem 3. Determine the smallest force P that must be applied in order to cause the...
Problem 3. Determine the smallest force P that must be applied in order to cause the 150-lb uniform crate to move. The coefficient of static friction between the crate and the floor is (s 0.5. 3 ft
The tractor has a weight of 4500 lb with center of gravity at G. The driving...
The tractor has a weight of
4500 lb with center of gravity at G. The driving traction is
developed at the rear wheels B, while the front wheels at A are
free to roll. If the coefficient of static friction between the
wheels at B and the ground is s = 0.5 possible to pull at P = 1200
lb without wheels at B to slip or the front wheels the ground.
4 of 5 The tractor has a weight...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in units of lb) necessary to cause both boxes to tip as a single unit. The coefficient of static friction between the boxes is . -0.62, and the coefficient of static friction between the bottom box and the floor is H. -0.27. 4.5 ft 5 ft 4.5 ft
-1 ft-o-1-1 8. The 7 ft tall cabinet shown at right has a weight of 160...
-1 ft-o-1-1 8. The 7 ft tall cabinet shown at right has a weight of 160 lb and a center of gravity that is 3.5 ft from the floor as shown. A horizontal force Pis applied to the side at a height of 4.0 ft from the floor. The coefficient of static friction between the legs and the floor is us= 0.2 and the coefficient of kinetic friction is fix=0.15. f. 19 points) If the applied force is 35 lb,...
If each box weighs 160 lb , determine the least horizontal force P that the man...
If each box weighs 160 lb ,
determine the least horizontal force P that the man must exert on
the top box in order to cause motion. The coefficient of static
friction between the boxes is μs = 0.80, and the coefficient of
static friction between the box and the floor is μ′s = 0.25.
(Figure 1)
-3 ft 4.5 ft 5 ft 4.5 ft А B
Part A If each box weighs 160 lb , determine the least horizontal force P that...
Part A If each box weighs 160 lb , determine the least horizontal force P that the man must exert on the top box in order to cause motion. The coefficient of static friction between the boxes is Ms = 0.80, and the coefficient of static friction between the box and the floor is M's = 0.25. (Figure 1) Express your answer with the appropriate units. μΑ ? re 1 of 1 P= Value Units -3 ft Submit Request Answer...
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight...
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight of the box is 36 lb Find: the maximum force P that can be applied without tipping the box. Assume that 1) the friction coefficient is high enough to prevent slipping and 2) the center of gravity of the box is at the box's geometric center. 6 feet, 0
3. Determine the maximum force P that can be applied without causing movement of the 300-1b crate that has a center of gravity at G. The coefficient of static friction at the floor is Hs = 0.4.(20 Points) 1.5 ft_1.5 ft 2.5 ft P1 4.5 ft 3.5 ft A
All calculations need the
counting processand Free Body Diagram.
3. Determine the maximum force P that can be applied without causing movement of the 300-lb crate that has a center of gravity at G. The coefficient of static friction at the floor is Is = 0.4. (20 Points) 1.5 ft 1.5 ft 2.5 ft P- 'T 4.5 ft 3.5 ft
B 30 Part C Determine the maximum force P that can be applied without causing the two 51-kg crates to move. The coefficient of static friction between each crate and the ground is his = 0.33 Express your answer to three significant figures and include the appropriate units. μΑ ? P= Value Units Submit Request Answer
Problem 3. Determine the smallest force P that must be applied in order to cause the 150-lb uniform crate to move. The coefficient of static friction between the crate and the floor is (s 0.5. 3 ft
The tractor has a weight of
4500 lb with center of gravity at G. The driving traction is
developed at the rear wheels B, while the front wheels at A are
free to roll. If the coefficient of static friction between the
wheels at B and the ground is s = 0.5 possible to pull at P = 1200
lb without wheels at B to slip or the front wheels the ground.
4 of 5 The tractor has a weight...
Question 14 5 pts If each box weighs 120 lb, determine the horizontal force P (in units of lb) necessary to cause both boxes to tip as a single unit. The coefficient of static friction between the boxes is . -0.62, and the coefficient of static friction between the bottom box and the floor is H. -0.27. 4.5 ft 5 ft 4.5 ft
-1 ft-o-1-1 8. The 7 ft tall cabinet shown at right has a weight of 160 lb and a center of gravity that is 3.5 ft from the floor as shown. A horizontal force Pis applied to the side at a height of 4.0 ft from the floor. The coefficient of static friction between the legs and the floor is us= 0.2 and the coefficient of kinetic friction is fix=0.15. f. 19 points) If the applied force is 35 lb,...
If each box weighs 160 lb ,
determine the least horizontal force P that the man must exert on
the top box in order to cause motion. The coefficient of static
friction between the boxes is μs = 0.80, and the coefficient of
static friction between the box and the floor is μ′s = 0.25.
(Figure 1)
-3 ft 4.5 ft 5 ft 4.5 ft А B
Part A If each box weighs 160 lb , determine the least horizontal force P that the man must exert on the top box in order to cause motion. The coefficient of static friction between the boxes is Ms = 0.80, and the coefficient of static friction between the box and the floor is M's = 0.25. (Figure 1) Express your answer with the appropriate units. μΑ ? re 1 of 1 P= Value Units -3 ft Submit Request Answer...
Given: m-2 ft, n 4 ft, the angle θ of the incline is 18 degrees, the force P is applied at height h and the weight of the box is 36 lb Find: the maximum force P that can be applied without tipping the box. Assume that 1) the friction coefficient is high enough to prevent slipping and 2) the center of gravity of the box is at the box's geometric center. 6 feet, 0
