Question

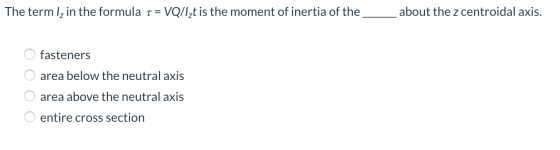

The term Iz in the formula 1 = VQ/Izt is the moment of inertia of the __about the z centroidal axis. fasteners area below the neutral axis area above the neutral axis ОО entire cross section

Answer 1

Answer:

(d) entire cross section

Explanation:

The formula to calculate the shear stress due to the shear flow at any point in the cross section is given as;

$\tau = \frac{VQ}{I_z t}$

The terms used here are;

$\tau =value\;\;of\;\;shear\;\;stress\;\;at\;\;the\;\;required\;\;point$

$\\Q=first\;\;moment\;\;of\;\;the\;\;area\;\;above\;\;the\;\;point\;\;about\;\;the\;\;neutral\;\;axis\;\;$

$I_z=\;\;moment\;\;of\;\;inertia\;\;of\;\;the\;\;entire\;\;cross\;\;section$
