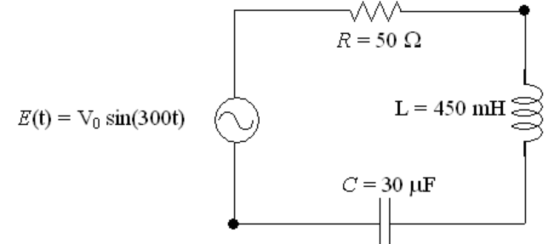

The RLC circuit below is being driven by an AC source with a frequency of 47.77 Hz resulting in a maximum current Imax = 0.25 amps.
24) In this circuit, the voltage across the capacitor __________ the current through the capacitor and the voltage across the resistor __________ the current through the resistor.
leads, lags
leads, leads
lags, leads
lags, lags
lags, is in phase with
is in phase with, leads
Totally unrelated question....
25) A local radio station broadcasts at the frequency 107.1 MHz (107.1 × 106 Hz). At resonance, the phase angle in an RLC alternating current circuit is __________ and the power output is at __________.
a maximum, zero
zero, zero
zero, a maximum
a maximum, a maximum
a minimum, a minimum
Homework Answers
Add Answer to:
The RLC circuit below is being driven by an AC source with a
frequency of 47.77...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance ...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit....
RLC frequency limits Last week you studied the driven RC circuit and the driven RL circuit. Consider the driven series RLC circuit. Its impedance is Z=R+j(ωL−1/(ωC)) . (a) For very high frequencies the driven RLC circuit behaves like an RL circuit (the effect of the capacitor becomes negligible). In this case does the current lead or lag the applied voltage in phase? A. lags B. leads C. neither What value in degrees does |ϕ| approach as ω→∞ ? (b) For...
A series RLC circuit has a 242 Hz resonant frequency, and is driven by an AC...
A series RLC circuit has a 242 Hz resonant frequency, and is
driven by an AC voltage source at 315 Hz. The circuit has a 75.0
resistor and a
66.0 mH inductor. The maximum current is 1.20 A.
a) Find the capacitance in the circuit.
b) Find the maximum voltage of the source.
c) Find the average power of the circuit
d) Find the phase angle .
Consider an RLC circuit that is driven by an AC source with an adjustable frequency. Is...
Consider an RLC circuit that is driven by an AC source with an adjustable frequency. Is possible for the maximum voltage drop across the capacitor to exceed the maximum voltage? Please explain with some detail.
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm,...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...
in a series RLC circuit with AC source, the voltage of an inductor A. Lags the...
in a series RLC circuit with AC source, the voltage of an inductor A. Lags the voltage of on the resistor by pi/2 B. Lags the voltage on the resistor by an angle 0 < theta < pi/2 C. Is in phase with the voltage on the resistor D. Leads the voltage In the resistor by an angle 0 < theta < pi/2 E. Leads the voltage on the resistor by pi/2
A series RLC circuit is driven by an alternating source at a frequency of 296 Hz...
A series RLC circuit is driven by an alternating source at a frequency of 296 Hz and an emf amplitude of 78.2 V. The resistance is 27.1 Ω, the capacitance is 10.5 µF, and the inductance is 25.5 mH. What is the rms potential difference across (a) the resistor, (b) the capacitor, and (c) the inductor? (d) What is the average rate at which energy is dissipated?
0.0940 H, that is driven at a frequency of 70.0 Hz. Consider a series RLC circuit...
0.0940 H, that is driven at a frequency of 70.0 Hz. Consider a series RLC circuit where R = 25.0 12, C = 35.5 uF, and L Determine the phase angle o of the circuit in degrees. φ = Given the phase angle, which statements are true? Overall, the system is inductive. The current lags the voltage. The voltage lags behind the current. Overall, the system is capacitive.
The phasor diagram for an RLC circuit driven by an AC source is shown above with...
The phasor diagram for an RLC circuit driven by an AC source is
shown above with just the vector representing the current I0 drawn.
Based on the position of the current vector, indicate whether the
following statements are TRUE or FALSE
vece 107 R с wt = 150° M Х TF The instantaneous voltage across the inductor is greater than zero. TF The vector representing the capacitor is at wt = 60° TF The vector representing the resistor is at...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency...
An RLC circuit consists of an alternating voltage source with RMS voltage 90 V and frequency 100 Hz, 180 ohm resistor, 200mH inductor, and a 900 micro-F capacitor, all wired in series. A) What is inductive reactance of the circuit? B) What is the capacitive reactance of the circuit?C) What is the impedance of the circuit? D)What is RMS current in the circuit?E) If the frequency is adjustable what frequency should you use to maximize the current in the circuit?
A series RLC circuit has a 242 Hz resonant frequency, and is
driven by an AC voltage source at 315 Hz. The circuit has a 75.0
resistor and a
66.0 mH inductor. The maximum current is 1.20 A.
a) Find the capacitance in the circuit.
b) Find the maximum voltage of the source.
c) Find the average power of the circuit
d) Find the phase angle .
0.0940 H, that is driven at a frequency of 70.0 Hz. Consider a series RLC circuit where R = 25.0 12, C = 35.5 uF, and L Determine the phase angle o of the circuit in degrees. φ = Given the phase angle, which statements are true? Overall, the system is inductive. The current lags the voltage. The voltage lags behind the current. Overall, the system is capacitive.
The phasor diagram for an RLC circuit driven by an AC source is
shown above with just the vector representing the current I0 drawn.
Based on the position of the current vector, indicate whether the
following statements are TRUE or FALSE
vece 107 R с wt = 150° M Х TF The instantaneous voltage across the inductor is greater than zero. TF The vector representing the capacitor is at wt = 60° TF The vector representing the resistor is at...
