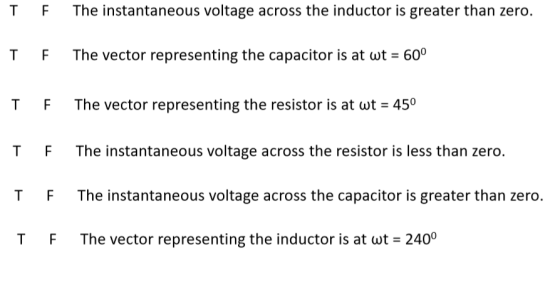

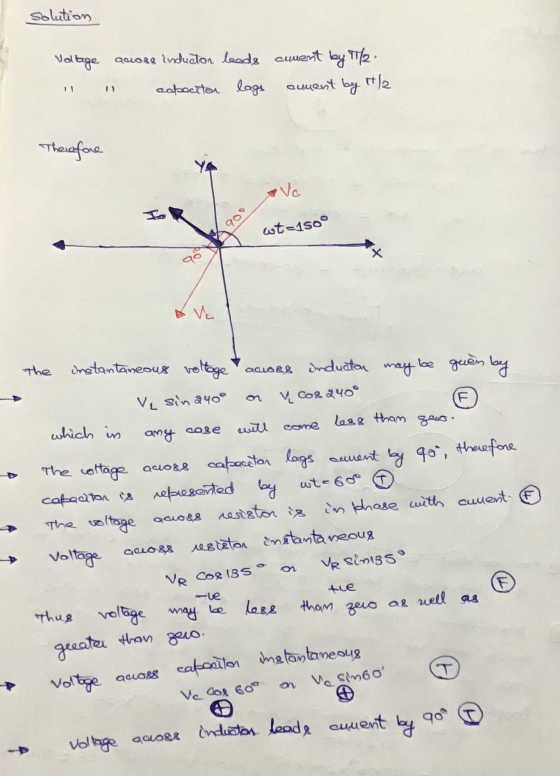

The phasor diagram for an RLC circuit driven by an AC source is shown above with just the vector representing the current I0 drawn. Based on the position of the current vector, indicate whether the following statements are TRUE or FALSE


The phasor diagram for an RLC circuit driven by an AC source is shown above with...
The RLC circuit below is being driven by an AC source with a
frequency of 47.77 Hz resulting in a maximum current Imax = 0.25
amps.
24) In this circuit, the voltage
across the capacitor __________ the current through the capacitor
and the voltage across the resistor __________ the current through
the resistor.
leads, lags
leads, leads
lags, leads
lags, lags
lags, is in phase with
is in phase with, leads
Totally unrelated question....
25) A local radio station broadcasts
at the...
We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz What is true? Question 10 options: The current through the inductor is larger than through the resistor The voltage across the inductor is larger than the voltage across the capacitor The voltage is lagging behind the current at the source The voltage and the current are in phase at the...
A series LRC circuit is driven by an ac source with a voltage amplitude of 36.0 V and a frequency of 60.0 Hz. The resistance is 160 Ohm, the inductance is 0.230 H, and the capacitance is 70.0 mu F. a) Determine the impedance of the circuit. b) Determine the current amplitude. c) Determine the voltage amplitude across (i) the resistor, (ii) the inductor and (iii) the capacitor. d) Sketch the phasor diagram (at t = 0) for the circuit,...
A resistor, an inductor, and a capacitor are connected in series to an AC source. The AC source is operating at the resonance frequency. Which of the following statements are true? Check all that apply. The current is in phase with the driving voltage. The total voltage across the inductor and the capacitor at any instant is equal to zero. The peak voltage across the capacitor is greater than the peak voltage across the inductor. The peak voltage across the...
Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is 10mH, the capacitance is 10mF. Select all the right answers. At 60Hz the total impedance is Question 13 options: less than 100Ohm Is more than 100Ohm Is within 1% of 100 Ohm Is not within 1% of 100Ohm Question 14 (1 point) Saved We have a series RLC circuit with an AC voltage source: The resistance is 100Ohm, the inductance is...
Consider an RLC circuit that is driven by an AC source with an adjustable frequency. Is possible for the maximum voltage drop across the capacitor to exceed the maximum voltage? Please explain with some detail.
4. In a particular series RLC circuit driven by an AC source of a set frequency, the voltage on the inductor is twice as large as the voltage on the capacitor. On the accompanying power vs voltage graph, which labeled point best matches this circuit? a. point A b. point B c. point C d. more information is needed. (Hz)
4. In a particular series RLC circuit driven by an AC source of a set frequency, the voltage on the...
In an RLC circuit, ? = 10 Ω, ? = 0.5 ??, and ? = 6.0 ??, the
current in the inductor is ?? = 12 ? sin(?? + 0.2). The circuit
operates at half of the resonance frequency.
a) Find the current in the resistor, capacitor and for the
entire circuit.
b) Find the voltage in the resistor, capacitor, and
inductor.
c) Find the emf of the AC source.
Will give great review for good answer.
2) In an...
A series RLC circuit is driven by a voltage source which provides a time varying emf of epsilon space equals space 100 cos left parenthesis 8000 t right parenthesis space straight V and consists of an resistor, capacitor and inductor with values of R space equals space 100 space capital omega L space equals space 1.00 space mH C space equals space 1.00 space μF. When the potential across the resistor is 0 V, what is the potential across the...
A phasor diagram is drawn for a series RLC circuit driven by a source of alternating (sinusoidal) voltage. Four phasors are drawn: VL, I, Vc, and VR at a particular instant in time. The frequency of the voltage source (i.e. the signal generator) is set to a value larger than the resonant frequency of the circuit. a. Label each phasor appropriately and identify the angle indicated by the arc with its appropriate label. b. Draw a fifth phasor on the...
