Using a 677 nm wavelength laser, you form the diffraction pattern of a 1.01 mm wide slit on a screen

Using a 677 nm wavelength laser, you form the diffraction pattern of a 1.01 mm wide slit on a screen. You measure on the screen that the 15th dark fringe is 9.97 cm away from the center of the central maximum. How far is the screen located from the slit?

distance: _______ m

science physics

Add a comment Improve this question Transcribed image text

Answer 1

✔ Recommended Answer

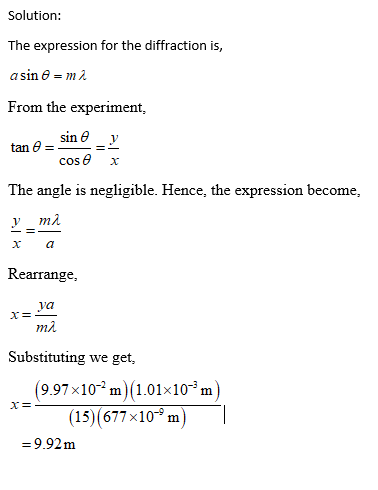

Answer #1

Add a comment

Answer 2
