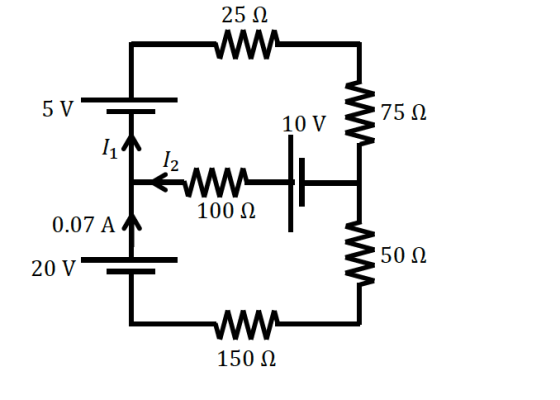

In the following circuit, the current in one of the branches is known to be 0.07 A, as shown in the diagram. Use Kirchhoff’s Rules to determine the other two currents, ?1 and ?2, in the circuit.

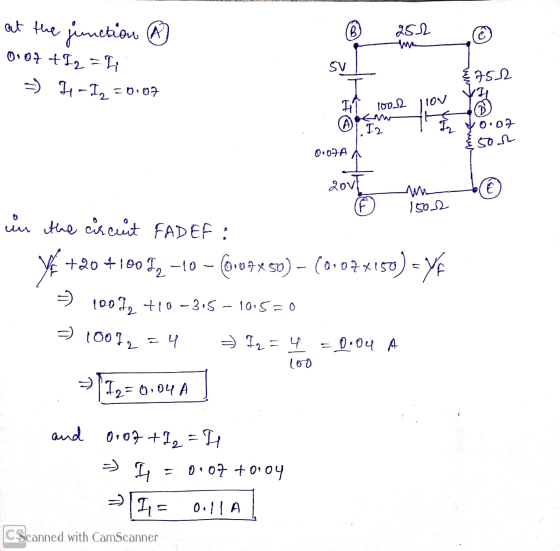

Homework Answers
Add Answer to:
In the following circuit, the current in one of the branches is
known to be 0.07...
In the following circuit, the current in one of the branches is known to be 0.07A,...
In the following circuit, the current in one of the branches is known to be 0.07A, as shown in the diagram. Use Kirchhoff's Rules to determine the other two currents, l1and 12, in the circuit. 25 w 5 V 10 V 750 11 12 w 1000 0.07 AN WA 20 V 5012 I ww 150 12
