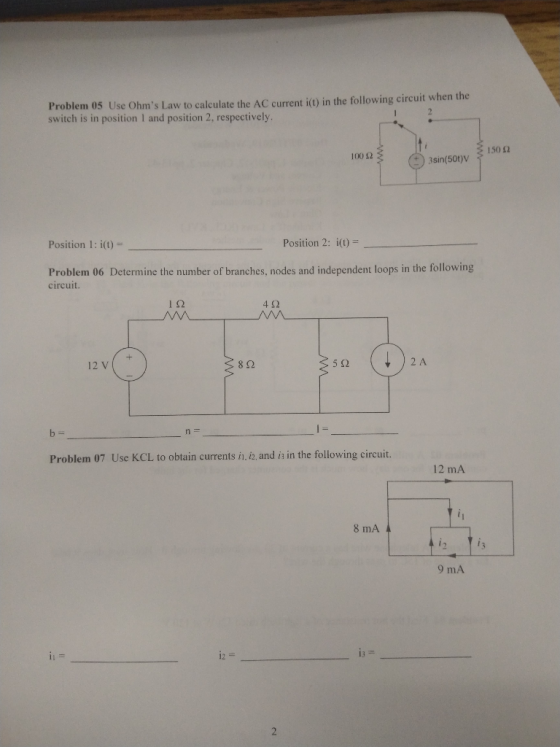

Problem 05 Use Ohm's Law to calculate the AC current i(t) in the following circuit when...

Question

Question

Problem 05 Use Ohms Law to calculate the AC current i(t) in the following circuit when the switch is in position 1 and posit

engineering Electrical-Engineering

Answer 1

Similar Homework Help Questions

please solve them all 2) For the circuit shown in Figure 1. Find the following: A....

please solve them all 2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Problem 4 (20 pts.): In the following circuit, the switch was open for a long time....

Problem 4 (20 pts.): In the following circuit, the switch was open for a long time. At i = 0, the switch closes. Determine the quantities given in the following table. 0.1 pF Xt=0" + + Ve(1) - 7.5 mA (1 v(t) 320k12 30 k 12 a Ve(0) b Vc(0) с v(O) d VcSS e T f ve(t) for t> 0. g v(t) for 1>0. h (0) Vss
Find Vc(t) and I(t) for ALL time AKINS-ENRROL Fall 2019 Consider Module 3 Problem the following...

Find Vc(t) and I(t) for ALL time AKINS-ENRROL Fall 2019 Consider Module 3 Problem the following circuit: a t = 0 50 125 1023 602 120 V min (50 Assume switch has been in position a for a very long time and at t=0, the switch is moved to position b. Find vect) and i(t) for all time (that includes time before switch is thrown; - 00 Lt Lo). Veatly sketch to scale, on a separate sets of axes Velt)...

2. Use the following values for the components in the circuit in 282 V. Compute i(t)...

2. Use the following values for the components in the circuit in 282 V. Compute i(t) and Vt). Fig. 2: Rs 400, X.-ja00。Xc-j400 Ω and V- (12) Xu R v(t) 、 i(t) XC ac Figure 2
2 12 marks.] Use the mesh-current method to find the curent i(t) in the following circuit....

2 12 marks.] Use the mesh-current method to find the curent i(t) in the following circuit. Give just the peak current in Amperes. 10:11 10? 100 nF i(t) 50 sin (10 + 25 cos (106t + 90 10? 3. [1 mark/ For Question #2 above, give the phase angle of i(t) in degrees.
1. Why can the DSO only measure node voltages when the Function Generator is the power supply in ...

1. Why can the DSO only measure node voltages when the Function Generator is the power supply in a circuit (unless it is using a current probe)? 2. Consider Figure 1. According to the calculations in the lab handout, if Z-1kΩ +/6914, then the phase difference (фи-фі) between u(t) and i (t) is 34.6". a. If this v(t) and i(t) were displayed on a DSO (v(t) being a node voltage and using a current probe for i(t) as shown in...
