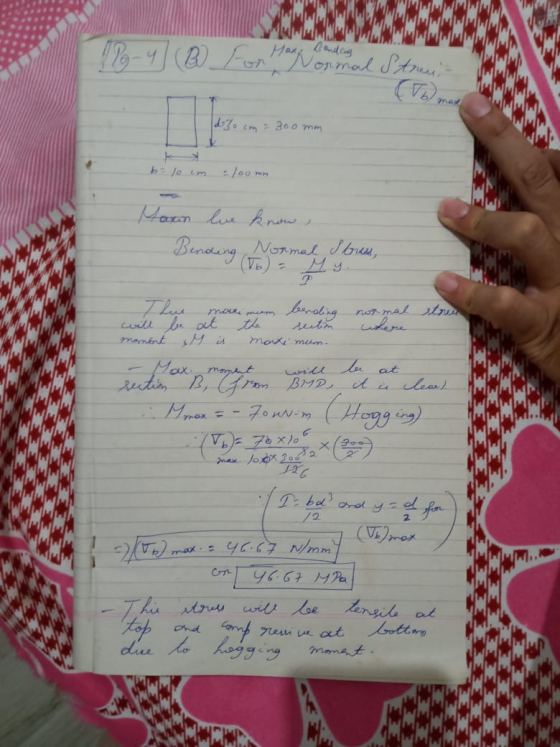

![IP-4] (B for Manormal Strani- ma dzo cm = 300 mm 1 b=10cm =100mm live know, Bending Normal stress, (Vo) - My Thue moule mam b](http://img.homeworklib.com/questions/8ff74820-fa08-11ea-80a4-e1e3e77ec713.png?x-oss-process=image/resize,w_560)

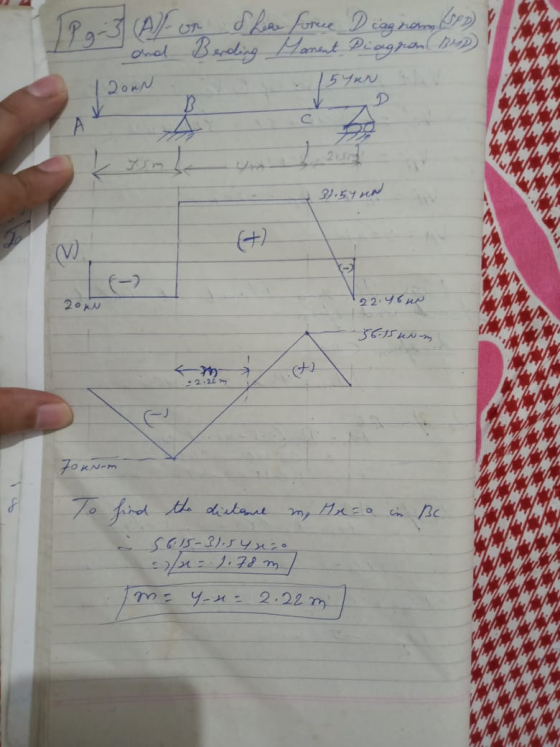

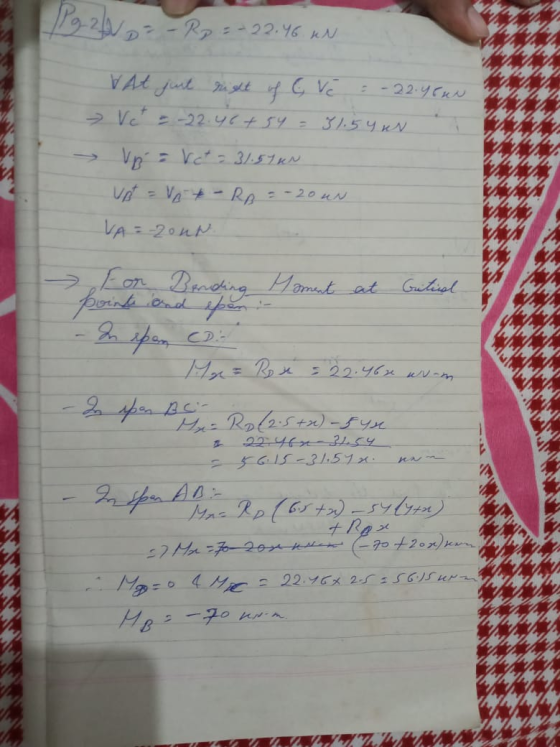

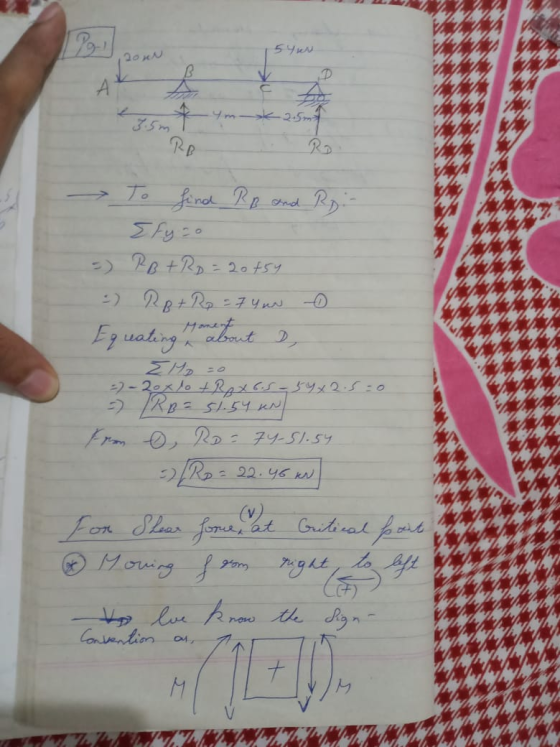

3. For the overhanging beam and loading shown below; A. Draw the shear and bend-moment diagrams...
plzz sir, write by hand

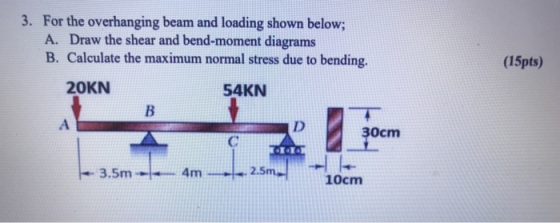

(15pts) 3. For the overhanging beam and loading shown below; A. Draw the shear and bend-moment diagrams B. Calculate the maximum normal stress due to bending. 20KN 54KN B А D 30cm C 3.5m 4m 2.5m 10cm
5.56 and 5.57 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
2. A rectangular overhanging beam and loads are shown in the following figure. A. Draw the shear and bending-moment diagrams B. Determine the maximum absolute value of the shear and absolute maximum bending stress. 16KN/m 45KN (15pts) Sem 4m 2m- 8 cm
Peoblem5.59 and 5.59 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
Draw the shear and bending-moment diagrams for the beam and
loading shown and determine the maximum normal stress due to
bending.
Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
For the beam and loading shown draw the shear and bending moment
diagrams and then find the maximum absolute values of the shear and
bending moment.
1. For the beam and loading shown draw the shear and bending-moment diagrams and then find the maximum absolute values of the shear and bending moment. 300 N/m 4 m
d 5.23 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending. 160 KN 80 kN/m Hinge MB10 X 60 2.4 m m 1.0 D
For the beam and loading shown, (a) draw the shear and bending-moment diagrams, (b) determine the maximum absolute values of the shear and bending moment.
