plzz sir, write by hand (15pts) 3. For the overhanging beam and loading shown below; A....

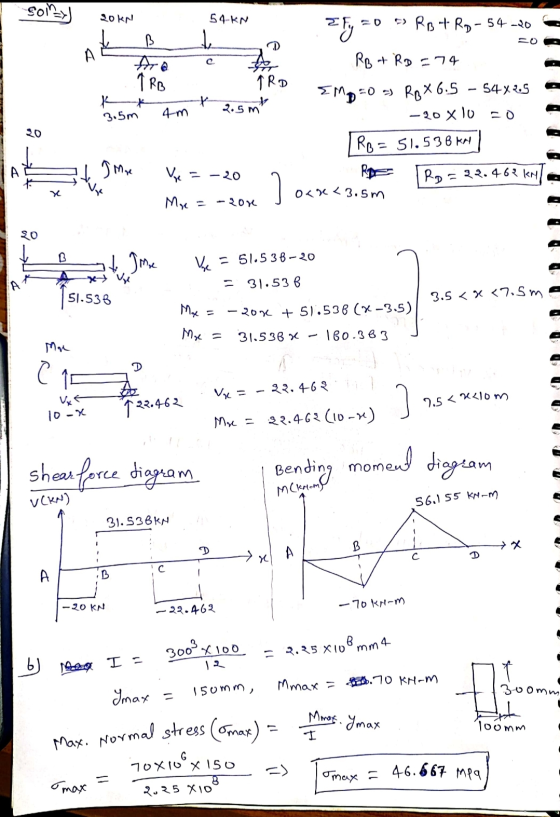

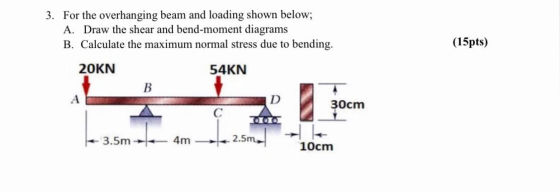

3. For the overhanging beam and loading shown below; A. Draw the shear and bend-moment diagrams B. Calculate the maximum normal stress due to bending. (15pts) 20KN 54KN B А D 30cm С 3.5m 4m -2.5m 10cm
2. A rectangular overhanging beam and loads are shown in the following figure. A. Draw the shear and bending-moment diagrams B. Determine the maximum absolute value of the shear and absolute maximum bending stress. 16KN/m 45KN (15pts) Sem 4m 2m- 8 cm
5.56 and 5.57 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
1. For the overhanging beam in the figure below, determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. 300 lb/ft 6 in. 1 in. 4 ft 10 ft 1 in. 2 in. Section INSTRUCTIONS For PROBLEM do the following steps: 1. Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a...
Peoblem5.59 and 5.59 Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
Draw the shear and bending-moment diagrams for the beam and
loading shown and determine the maximum normal stress due to
bending.
Draw the shear and bending-moment diagrams for the beam and loading shown and determine the maximum normal stress due to bending.
I. The overhanging beam in the figure below, has a timber section of nominal size 100 x 300. Determine the maximum shear stress, the maximum tensile stress, and the maximum compressive stress in the beam due to the loading shown. (25 points) 20 kN/m INSTRUCTIONS For PROBLEM do the following steps: 1.Show ALL your work 2. Draw appropriately labeled FBDs 3. Use appropriate segments to develop expressions for the shear force and bending moment. diagrams in a standard format the...
For the following beam and loading shown in the figure; all the dimensions are measured in meter. Determine: a) Draw the free body diagram. b) Draw the shear and moment diagrams using an appropriate scale, (show all calculation details) c) The maximum normal stress due to bending. 15kN 240 mm 30 mm Im 50KN 10kN/m 1 16 mm 2 350 mm A B C D E 2m 2m 2m 3m 4m Beam cross-section
