Design a Circuit using only 2 resistors of 15 Ohm and 1 resistor of 75 Ohm.

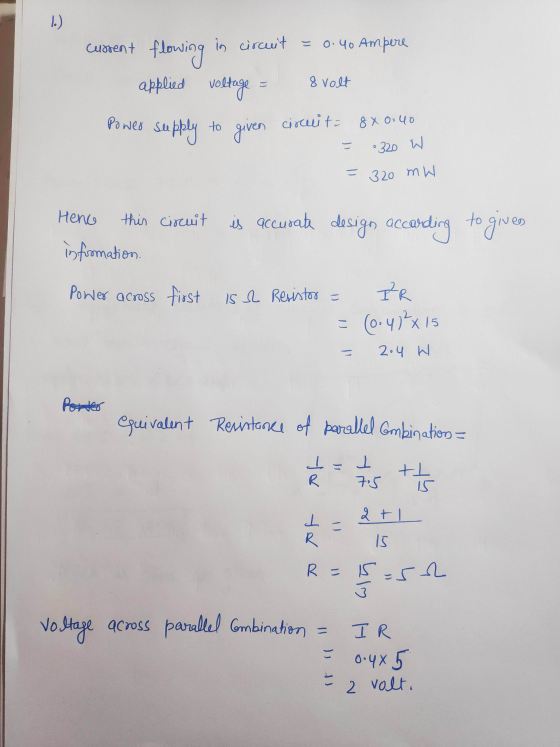

1. Using all three resistors, design a circuit that will draw ~320 mW from power supply when connected across 8.0 V. Determine theoretically the power consumption of each individual resistor in the circuit you have designed.

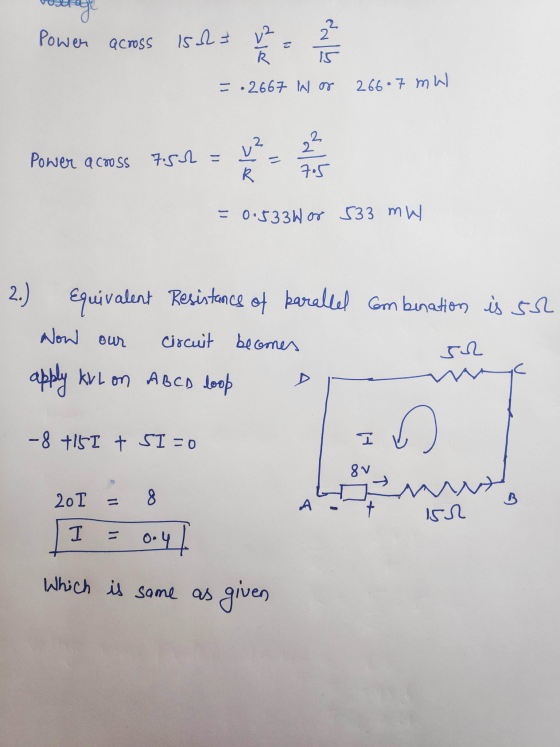

2. Annotated potential vs path graph with accompanying Kirchhoff’s Laws written as algebraic statements.


Design a Circuit using only 2 resistors of 15 Ohm and 1 resistor of 75 Ohm....
2. Annotated potential vs path graph with accompanying
Kirchhoff’s Laws written as algebraic statements.

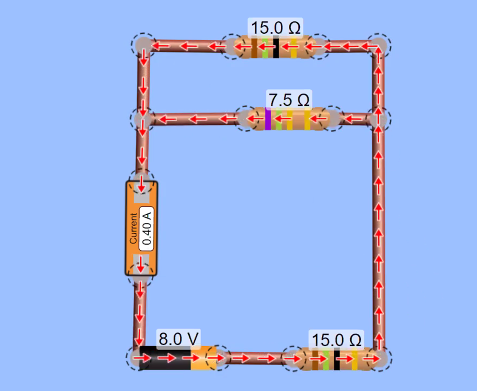

15.0Ω 7.5 Ω Current 0.40 Α) 8.0V 15.0 Ω
A circuit contains four
resistors. Resistor ?1 has a resistance of 49.0 Ω , resistor ?2 has
a resistance of 127 Ω , resistor ?3 has a resistance of 83.0 Ω ,
and resistor ?4 has a resistance of 165 Ω . If the battery has a
voltage of ?=45.0 V, how much power is dissipated in each
resistor?
Using the circuit diagram below.answer the following questions: Α Ω Β Ω 15.0 15.0V (C Ω D Ω 2T 15.0 V Assume the following resistor values for the resistors above: A = 6 Ohms B = 6 Ohms C = 8 Ohms D = 4 Ohms a) What is the value of I at resistor AQ? b) What is the potential difference across the Bo? c) What is the power at the Co? It is circled for you in the...
step by step please
Using the circuit diagram below, answer the following questions: Α Ω Β Ω 15.0 V (C Ω D Ω ma 15.0 v Assume the following resistor values for the resistors above: A-6 Ohms B-6 Ohms C-8 Ohms D-4 Ohms a) What is the value of l at resistor AQ? (12 points) b) What is the potential difference across the Ba? (4 points) What is the power at the Co? It is circled for you in the...
Using superposition theorem, find the current in 2 ohm resistor in the circuit in Figure 1. Points)
Question 1 (15 Marks): The electrical circuit shown consists of resistors and voltage sources. We can determine the current in each resistor, using the mesh current method based on Kirchhoffs voltage law. (Kirchhoff's voltage law states that the sum of the voltage around a closed circuit is zero) 2 Σ vsource-IR = 0 i3 IH - Note: if two currents passes through one resistor we should use difference or summation between them based on direction of the currents i.e ii-j^,....
(25pts) 2. Design a four resister BJT (CE) bias circuit (using method 1 or 2) for the following specifications: loq=1.5 mA, VCEQ=5 V, Vcc=14 V. Find all resistor values. Assume a BJT transistor (npn) with B=180 and V Be=0.7V Draw the designed circuit with all values.
