A circuit contains four resistors. Resistor ?1 has a resistance of 49.0 Ω , resistor ?2...

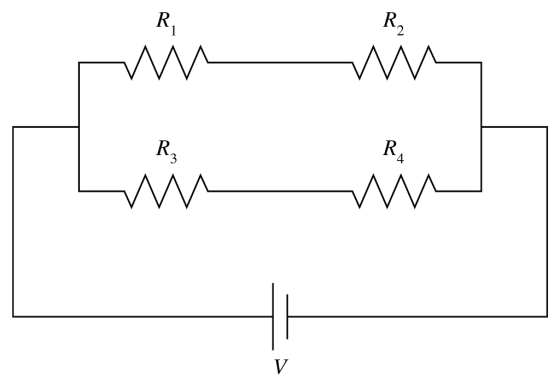

A circuit contains four resistors. Resistor ?1 has a resistance of 49.0 Ω , resistor ?2 has a resistance of 127 Ω , resistor ?3 has a resistance of 83.0 Ω , and resistor ?4 has a resistance of 165 Ω . If the battery has a voltage of ?=45.0 V, how much power is dissipated in each resistor?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

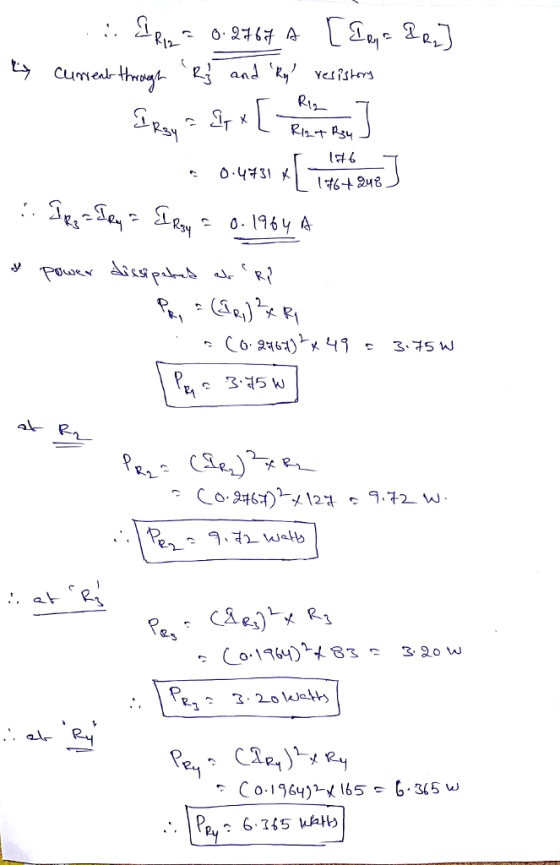

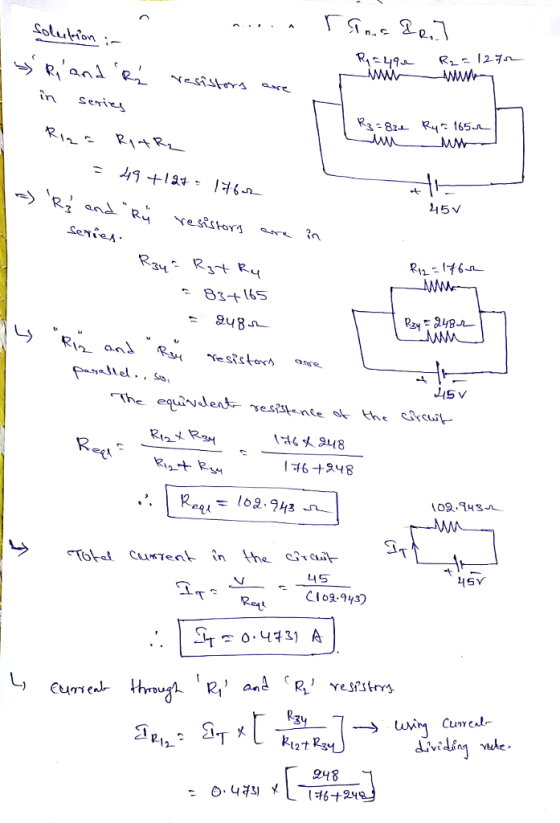

n. Solulron in Seni 83+165 109.3 45 CI09-9432 다 터 ..1卞る2 9.ZLwafb
