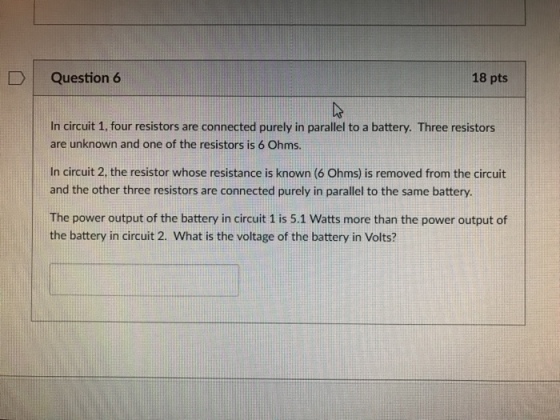

In circuit 1, four resistors are connected purely in parallel to a battery. Three resistors are...

Question

Question

science physics

Answer 1

Answer #1

for circuit 1 :

P₁ = V²/R₁ + V²/R₂ + V²/R₃ + V²/6

for circuit 2

P₂ = V²/R₁ + V²/R₂ + V²/R₃ = V² (1/R₁ + 1/R₂ + 1/R₃) = V² /R_p =

given that :

P₁ = 5.1 + P₂

V²/R₁ + V²/R₂ + V²/R₃ + V²/6 = 5.1 + V²/R₁ + V²/R₂ + V²/R₃

V²/6 = 5.1

V = sqrt(6 x 5.1) = 5.53 volts

Answer 2

Similar Homework Help Questions

Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors...

Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is not initially known. The current out of the battery is 9 amps. What is the power dissipated from the fourth, unknown resistor, in Watts? Four resistors are connected purely in parallel to a 7 volt battery. Three of the resistors are 3 ohms, 7 ohms, and 12 ohms, but the fourth is...
4) Many resistors are connected purely in parallel to a 17 battery and the power output...

4) Many resistors are connected purely in parallel to a 17 battery and the power output of the battery is 172 Watts. One resistor is removed (but the rest remain connected in parallel to the same battery) and the current coming out of the battery is 3.1 amps with that resistor removed. What was the value of the resistance of the removed resistor in Ohms?
5) Four resistors are connected purely in series to a 35 volt battery. Three of the...

5) Four resistors are connected purely in series to a 35 volt battery. Three of the resistors are 3 ohms, 8 ohms, and 12 ohms, but the fourth is not initially known. The power produced by the battery is 27 Watts. What is the power dissipated from the fourth, unknown resistor, in Watts?

What is the equivalent resistance in a circuit if the following resistors are connected in parallel....

What is the equivalent resistance in a circuit if the following resistors are connected in parallel. If a voltage source of 5 volts is connected into the circuit, what is the net current coming out of the voltage source. Resistor 1 = 15 ohms, Resistor 2 = 23 ohms, Resistor 3 = 40 ohms
A battery with a voltage of 16.0 V is connected to four resistors in the circuit...

A battery with a voltage of 16.0 V is connected to four resistors in the circuit shown above. The resistors are identical, each having a resistance of 8.00 ohms. What is the equivalent resistance of this set of four resistors? ohms Calculate the current through resistor C. A Which resistor has the most current through it, in this circuit? resistor A resistor B resistor C resistor D they all get equal currents, because the resistors are identical
Resistors of 3 Ohms, 9 Ohms, and 11 Ohms are connected purely in parallel to a...

Resistors of 3 Ohms, 9 Ohms, and 11 Ohms are connected purely in parallel to a 12 volt battery. All of these resistors dissipate different amounts of power. What is the greatest amount of power dissipated by one of these resistors in Watts?

A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected...

A circuit has three resistors. R2 and R3 are in parallel. This combination is then connected in series with resistor R1. It is known that R1=1 ohm, R2= 2 ohms, and R3= 3 ohms. Find the current through R2. The battery has 12 V. Ignore the internal resistance.
R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors,...

R1 R3 R2 R4 W The circuit in the diagram contains one battery and four resistors, labeled 1 through 4. ?Which of the following is true about the way that the circuit elements are arranged Resistors 1 and 2 are in parallel while resistors 3 and 4 are in series Resistors 1 and 4 are in parallel while resistors 2 and 3 are in series Resistors 1 and 4 are in series, while resistors 2 and 3 are in parallel...
Resistors of 5 Ohms, 9 Ohms, and 13 Ohms are connected purely in series to a...

Resistors of 5 Ohms, 9 Ohms, and 13 Ohms are connected purely in series to a 23 volt battery. All three resistors will dissipate a different amount of power. What is the power dissipated by the resistor which dissipates the least power in Watts?

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A...

Three Resistors in Parallel Three resistors are connected in parallel as shown in figure (a). A potential difference of 12.0V is maintained between points a and b. Three resistors connected in parallel. The Another circuit with three resistors and a voltage across each resistor is 12.0 V. battery. Is it equivalent to the circuit in (a)? a Ž 3.00 6.00 9.00 3.00 6.00 09.00 (a) Calculate the equivalent resistance of the circuit. SOLUTION Conceptualize Figure (a) shows that we are...
