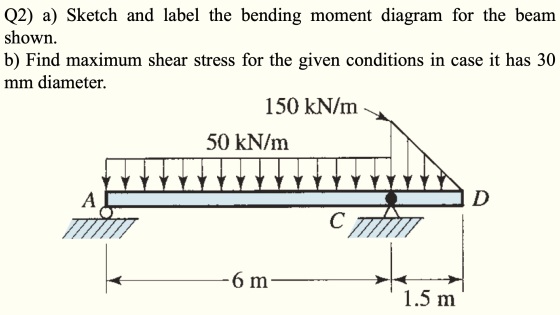

2) a) Sketch and label the bending moment diagram for the beam shown. b) Find maximum shear stress for the given conditions in case it has 30 mm diameter.

Question

Question

Mechanical-Engineering Strength-Of-Materials

Answer 1
