Problem #3: (35 pts.) At the instant shown bar AB has a constant angular velocity. If...

Question

Question

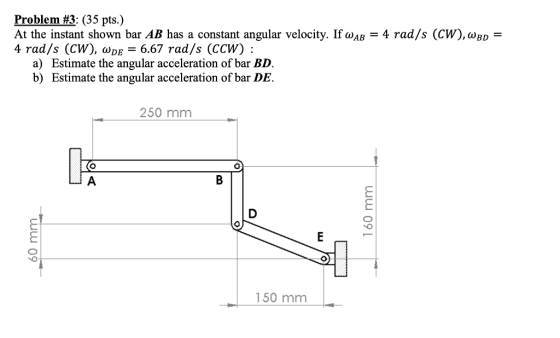

Problem #3: (35 pts.) At the instant shown bar AB has a constant angular velocity. If waB = 4 rad/s (CW), WBD 4 rad/s (CW), w

engineering Mechanical-Engineering

Answer 1

Answer #1

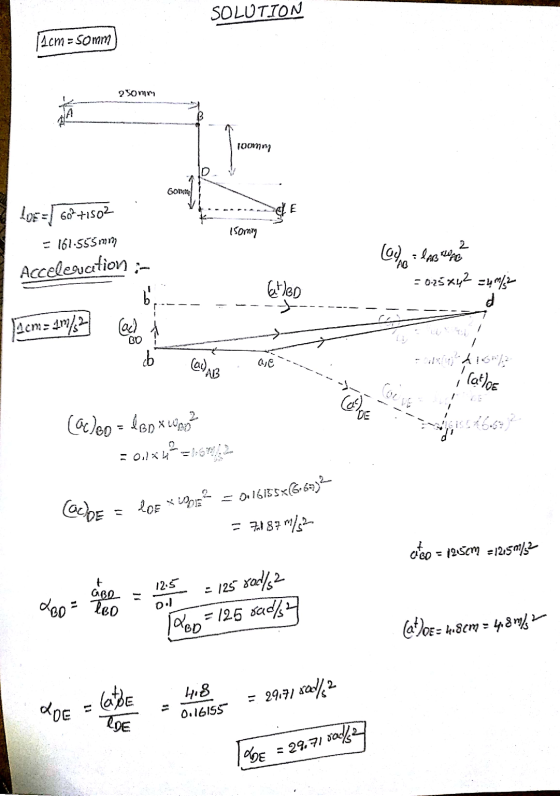

SOLUTION 14cm = 50mm 250mm NA Tooming Gonn E 150mm Lor= 60+1502 = 161.555mm Acceleration La la la b kten = 0.25x42 zum/ d acm

Answer 2
