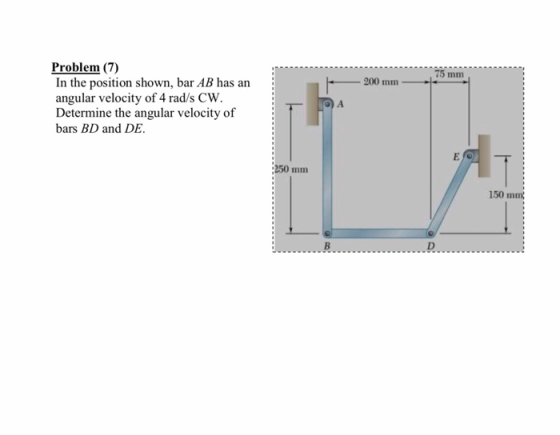

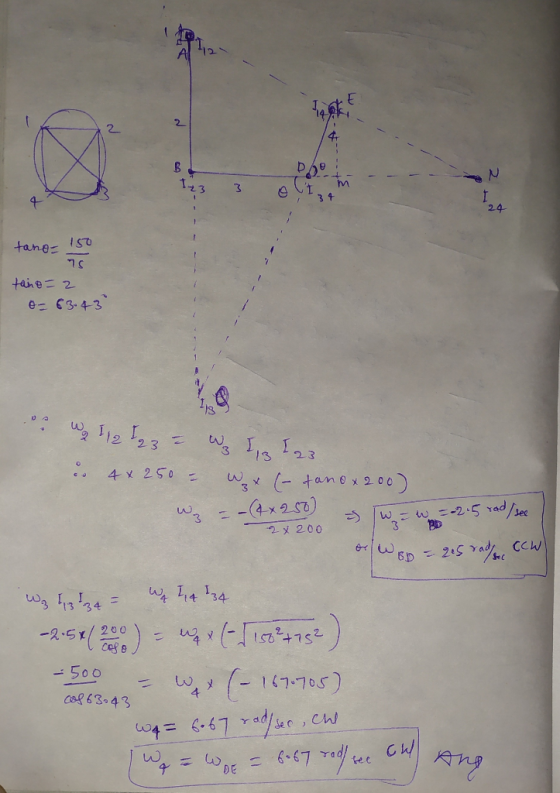

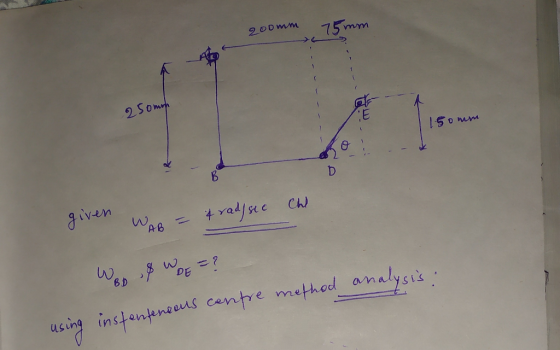

200 mm Problem (7) In the position shown, bar AB has an angular velocity of 4...
Problem #3: (35 pts.) At the instant shown bar AB has a constant angular velocity. If...
Problem #3: (35 pts.) At the instant shown bar AB has a constant angular velocity. If waB = 4 rad/s (CW), WBD 4 rad/s (CW), wde = 6.67 rad/s (CCW) : a) Estimate the angular acceleration of bar BD. b) Estimate the angular acceleration of bar DE. 250 mm A B D 160 mm աա 09 E 150 mm
26 In the position shown, bar AB has an angular velocity of 16 rad/s counterclockwise. Determine...
26 In the position shown, bar AB has an angular velocity of 16 rad/s counterclockwise. Determine the angular velocity of bars BD and DE. 100 mm 10 175 mm points A eBook 200 mm Hint 75 mm Print References rad/s ((Click to select) wDE rad/s ((Click to select) wBD
2. For the mechanism in the position shown in the figure, bar AB has a constant...
2. For the mechanism in the position shown in the figure, bar AB has a constant angular velocity of 4 rad/s in the clockwise direction. (a) Identify the type of motion of each bar using the FBD (b)Determine the angular velocity of bars BD and DE. (c) Determine the angular acceleration of bar BD and DE. 100 mm 175 mm B 200 mm 75 mm D E < of 2
When the mechanism is in the position shown, the angular velocity of bar AB is 4...
When the mechanism is in the position shown, the angular velocity of bar AB is 4 rad/s. Using the relative velocity method, determine: a) The angular velocity of bar BD b) The angular velocity of bar DE 1P6in 4 rad/s 6 in.
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and...
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s...
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s. Assume that AB-75mm and BD-200 mm. For the crank position indicated determine (a) the angular velocity of the connecting rod BD, (b) the angular acceleration of the connecting rod BD and (c) the velocity and the acceleration of point D. Problem 3.4 A thin homogeneous wire with Determine the period of small oscillation if the wire (a) is suspended as shown,...
3. At the instant shown the bar AB is rotating CW with a constant angular velocity...
3. At the instant shown the bar AB is rotating CW with a constant angular velocity WAB = 6 rad/s and the angle 0 = 30° 0.15 m B 0.5 m Α (Ό, a. Determine the angular velocity vector of bar BD 34.04° D b. Determine the angular acceleration vector of bar BD and the acceleration vector of point D
In the position shown, bar DE has a constant angular velocity of 10 rad/s clockwise
In the position shown, bar DE has a constant angular velocity of 10 rad/s clockwise. Knowing that h = 500 mm, determine (a) the angular acceleration of bar FBD, (b) the velocity of point F and c) the angular acceleration of bar AB.
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s,...
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s, determine the angular velocity of *.link BC at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 1.4 rad/s 8.5 rad/s O E
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration...
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
Problem #3: (35 pts.) At the instant shown bar AB has a constant angular velocity. If waB = 4 rad/s (CW), WBD 4 rad/s (CW), wde = 6.67 rad/s (CCW) : a) Estimate the angular acceleration of bar BD. b) Estimate the angular acceleration of bar DE. 250 mm A B D 160 mm աա 09 E 150 mm
26 In the position shown, bar AB has an angular velocity of 16 rad/s counterclockwise. Determine the angular velocity of bars BD and DE. 100 mm 10 175 mm points A eBook 200 mm Hint 75 mm Print References rad/s ((Click to select) wDE rad/s ((Click to select) wBD
2. For the mechanism in the position shown in the figure, bar AB has a constant angular velocity of 4 rad/s in the clockwise direction. (a) Identify the type of motion of each bar using the FBD (b)Determine the angular velocity of bars BD and DE. (c) Determine the angular acceleration of bar BD and DE. 100 mm 175 mm B 200 mm 75 mm D E < of 2
When the mechanism is in the position shown, the angular velocity of bar AB is 4 rad/s. Using the relative velocity method, determine: a) The angular velocity of bar BD b) The angular velocity of bar DE 1P6in 4 rad/s 6 in.
Knowing that at the instant shown bar AB has an angular velocity of 6.5 rad/s and an angular acceleration of 4 rad/s2,both clockwise, determine the angular acceleration of bar BD and bar DE by using the vector approach. (Round the final answers to one decimal place.) 100 mm 200 mm 75 mm D The angular acceleration of bar BD is The angular acceleration of bar DE is rad/s2 clockwise. radis2 dlockwise
Problem 3.3 In the engine system shown, the crank AB has a constant counterclockwise angular velocity of 200 rad/s. Assume that AB-75mm and BD-200 mm. For the crank position indicated determine (a) the angular velocity of the connecting rod BD, (b) the angular acceleration of the connecting rod BD and (c) the velocity and the acceleration of point D. Problem 3.4 A thin homogeneous wire with Determine the period of small oscillation if the wire (a) is suspended as shown,...
3. At the instant shown the bar AB is rotating CW with a constant angular velocity WAB = 6 rad/s and the angle 0 = 30° 0.15 m B 0.5 m Α (Ό, a. Determine the angular velocity vector of bar BD 34.04° D b. Determine the angular acceleration vector of bar BD and the acceleration vector of point D
WhatsApp + @ 52% 11:17 docs.google.com If bar AB has an angular velocity of 6 rad/s, determine the angular velocity of *.link BC at the instant shown 30° 200 mm B 150 mm WAB = 6 rad/s 60° 1.4 rad/s 8.5 rad/s O E
The instant shown, bar AB has an angular velocity of 4.5 rad/s and an angular acceleration of 2.4 rad/s2, both clockwise. 25 in. - 20 in. 20 in. - Determine the angular acceleration of bar BD by using the vector approach. (You must provide an answer before moving to the next part.) The angular acceleration of bar BD is r r ad/s2 counterclockwise.
