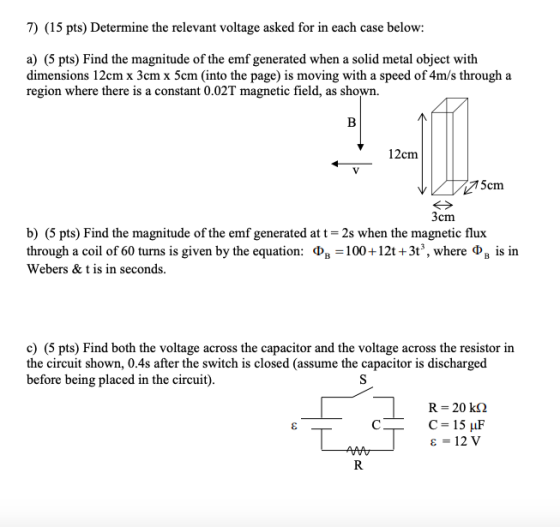

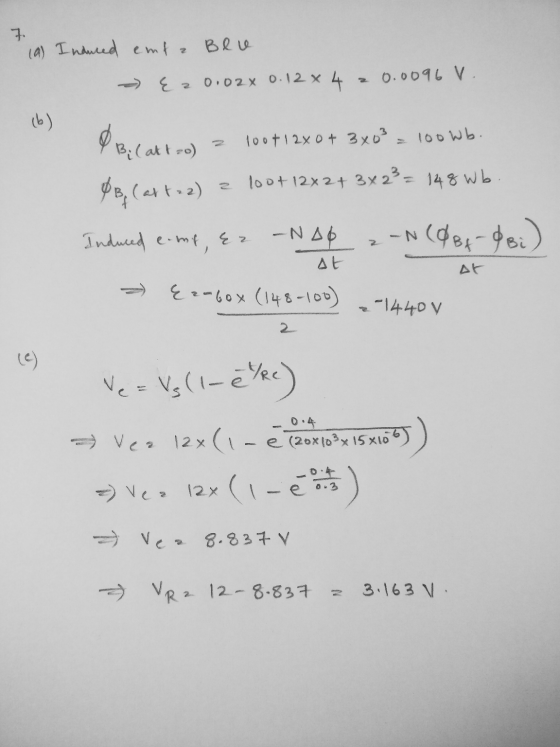

7) (15 pts) Determine the relevant voltage asked for in each case below: a) (5 pts)...
Question 16 5 pts Select the correct value for each of the quantities listed below. A...
Question 16 5 pts Select the correct value for each of the quantities listed below. A capacitor of capacitance C-20 μF is initially charged with charge Qo-60pc. The capacitor is then discharged by connecting it to a resistor of resistance R- 5.0 M2. . The initial voltage of this capacitor is [Select At time t-20 s the charge on the capacitor is Q- Select ) . the voltage across the capacitor is Δ v- [ Select] the current in the...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF 12 nF 43V Find the voltage across the 104 nF capacitor (AVi) and the 12 nP capacitor (AVa) (5 pts.) Find the charge on the 104 nF capacitor (Q1) and the 12 nP capacitor (Q). (5 pts.) Pind the total energy stored on both capacitors. (5 pts.)
(30 pts) A D.C. motor is shown below, where the inductance L and the resistance R model the armat...
(30 pts) A D.C. motor is shown below, where the inductance L and the resistance R model the armature circuit. The voltage Vb represents the back-emf which is proportional to dθ/dt via K. The torque T generated by the motor is proportional to the i via a constant K. The inertia J represents the combined inertia of the motor and load. The viscous friction acting on the output shaft is B 1. pur voltaop a. A. (10 pts) Find the...
3) In the figure below, the magnetic flux through the loop shown increases according to the...
3) In the figure below, the magnetic flux through the loop shown increases according to the equation, 0-8-3r where is in webers and is in seconds: wa a) What is the induced voltage across the resistor atr=2 seconds? (5 pes) b) What is the polarity of the voltage across the resistor (Justify your answer (Spes) c) If the area of the entire closed loop is 14 m", what is the magnitude of the magnetic field at 2 seconds? (4 pes)...
electromagnetic 1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary...
electromagnetic
1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary differential equation (ODE) describing the charge vs. time function (1) for a capacitor in the discharging RC circuit shown below. Assume that at time t = 0 (right before the switch is closed) the voltage across the capacitor is V = V.. R R с V(t) С t=0 t>O Fig. 1. Fully charged RC circuit Fig. 2. Discharging RC Circuit (b) Solve the ODE...
1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary differential...
1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary differential equation (ODE) describing the charge vs. time function (t) for a capacitor in the discharging RC circuit shown below. Assume that at time t = 0 (right before the switch is closed) the voltage across the capacitor is V = V.. R R W W V. с v(t) с t = 0 t> 0 Fig. 1. Fully charged RC circuit Fig. 2. Discharging RC...
Problem 2. Multiple-choice: (15 pts) 2-1. A solenoid has 500 turns per meter length and radius of 5 cm. When the current in the solenoid is 8 A, what is the magnetic flux though the cross-section...
Problem 2. Multiple-choice: (15 pts) 2-1. A solenoid has 500 turns per meter length and radius of 5 cm. When the current in the solenoid is 8 A, what is the magnetic flux though the cross-sectional area of the solenoid? (B) 6.03 x 104 T m2 (D) 3.95 x 105 T m2 (A) 5.03 x 103 Tm2 (C) 1.58 x 103 Tm2 2-2: In an RLC circuit, resistor is R-0.7 Ω, capacitor is C 0.04 F, the inductor is L...
3. (Bonus) Determine a state variable model for the circuit in Figure 2. Note that If the voltage...
3. (Bonus) Determine a state variable model for the circuit in Figure 2. Note that If the voltage at the left and right hand side of a resistor R is v and vR, respectively, and the current is assumed to flow through the resistor from left to right, then the current passing through the resistor R is iR We know that the voltage drop across a capacitor is uc = the current passing through the capacitor branch is ic cat,...
Determine if overdamped,underdamped, or critically damped For the circuit shown below, Vs-200V, R-30, R.-50. C -0.125pF...
Determine if overdamped,underdamped, or critically damped
For the circuit shown below, Vs-200V, R-30, R.-50. C -0.125pF and L-SmH. Find (a) the initial voltage across the capacitor 20. (b) the initial current through the inductor, lu(0). (e) the damping coefficient and resonant frequency . (d) the initial condition dvede , (e) the voltage across the capacitor (t) for the initial condition diu/dt , and the current through the inductor lu(t) for p R2 Voc
whole question plz. I will give good feedback.:) 5. Shown below is an RC circuit driven...
whole question plz. I will give good feedback.:)
5. Shown below is an RC circuit driven by an AC power source. R Vp (a) Draw a phasor diagram representing this circuit. (b) Determine the magnitude of the impedance, 121. (c) Determine the phase of the impedance, oz. (d) Explain in a single sentence what the phase of the impedance means. (e) Let the resistance be R 1.0k2, the capacitance be C 0.5uF and the voltage source have an RMS voltage,...
Question 16 5 pts Select the correct value for each of the quantities listed below. A capacitor of capacitance C-20 μF is initially charged with charge Qo-60pc. The capacitor is then discharged by connecting it to a resistor of resistance R- 5.0 M2. . The initial voltage of this capacitor is [Select At time t-20 s the charge on the capacitor is Q- Select ) . the voltage across the capacitor is Δ v- [ Select] the current in the...
Determine the equivalent capacitance for the capacitors shown in the circuit below (5 pts.) 104 nF 12 nF 43V Find the voltage across the 104 nF capacitor (AVi) and the 12 nP capacitor (AVa) (5 pts.) Find the charge on the 104 nF capacitor (Q1) and the 12 nP capacitor (Q). (5 pts.) Pind the total energy stored on both capacitors. (5 pts.)
(30 pts) A D.C. motor is shown below, where the inductance L and the resistance R model the armature circuit. The voltage Vb represents the back-emf which is proportional to dθ/dt via K. The torque T generated by the motor is proportional to the i via a constant K. The inertia J represents the combined inertia of the motor and load. The viscous friction acting on the output shaft is B 1. pur voltaop a. A. (10 pts) Find the...
3) In the figure below, the magnetic flux through the loop shown increases according to the equation, 0-8-3r where is in webers and is in seconds: wa a) What is the induced voltage across the resistor atr=2 seconds? (5 pes) b) What is the polarity of the voltage across the resistor (Justify your answer (Spes) c) If the area of the entire closed loop is 14 m", what is the magnitude of the magnetic field at 2 seconds? (4 pes)...
electromagnetic
1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary differential equation (ODE) describing the charge vs. time function (1) for a capacitor in the discharging RC circuit shown below. Assume that at time t = 0 (right before the switch is closed) the voltage across the capacitor is V = V.. R R с V(t) С t=0 t>O Fig. 1. Fully charged RC circuit Fig. 2. Discharging RC Circuit (b) Solve the ODE...
1) RC Circuits: (15 pts) (a) Use Kirchhoff's voltage law (KVL) to obtain an ordinary differential equation (ODE) describing the charge vs. time function (t) for a capacitor in the discharging RC circuit shown below. Assume that at time t = 0 (right before the switch is closed) the voltage across the capacitor is V = V.. R R W W V. с v(t) с t = 0 t> 0 Fig. 1. Fully charged RC circuit Fig. 2. Discharging RC...
Problem 2. Multiple-choice: (15 pts) 2-1. A solenoid has 500 turns per meter length and radius of 5 cm. When the current in the solenoid is 8 A, what is the magnetic flux though the cross-sectional area of the solenoid? (B) 6.03 x 104 T m2 (D) 3.95 x 105 T m2 (A) 5.03 x 103 Tm2 (C) 1.58 x 103 Tm2 2-2: In an RLC circuit, resistor is R-0.7 Ω, capacitor is C 0.04 F, the inductor is L...
3. (Bonus) Determine a state variable model for the circuit in Figure 2. Note that If the voltage at the left and right hand side of a resistor R is v and vR, respectively, and the current is assumed to flow through the resistor from left to right, then the current passing through the resistor R is iR We know that the voltage drop across a capacitor is uc = the current passing through the capacitor branch is ic cat,...
Determine if overdamped,underdamped, or critically damped
For the circuit shown below, Vs-200V, R-30, R.-50. C -0.125pF and L-SmH. Find (a) the initial voltage across the capacitor 20. (b) the initial current through the inductor, lu(0). (e) the damping coefficient and resonant frequency . (d) the initial condition dvede , (e) the voltage across the capacitor (t) for the initial condition diu/dt , and the current through the inductor lu(t) for p R2 Voc
whole question plz. I will give good feedback.:)
5. Shown below is an RC circuit driven by an AC power source. R Vp (a) Draw a phasor diagram representing this circuit. (b) Determine the magnitude of the impedance, 121. (c) Determine the phase of the impedance, oz. (d) Explain in a single sentence what the phase of the impedance means. (e) Let the resistance be R 1.0k2, the capacitance be C 0.5uF and the voltage source have an RMS voltage,...
