Homework Answers

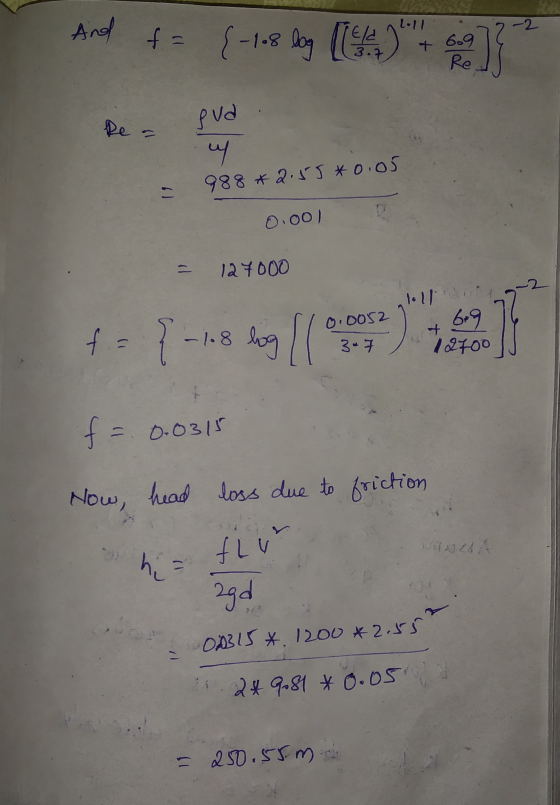

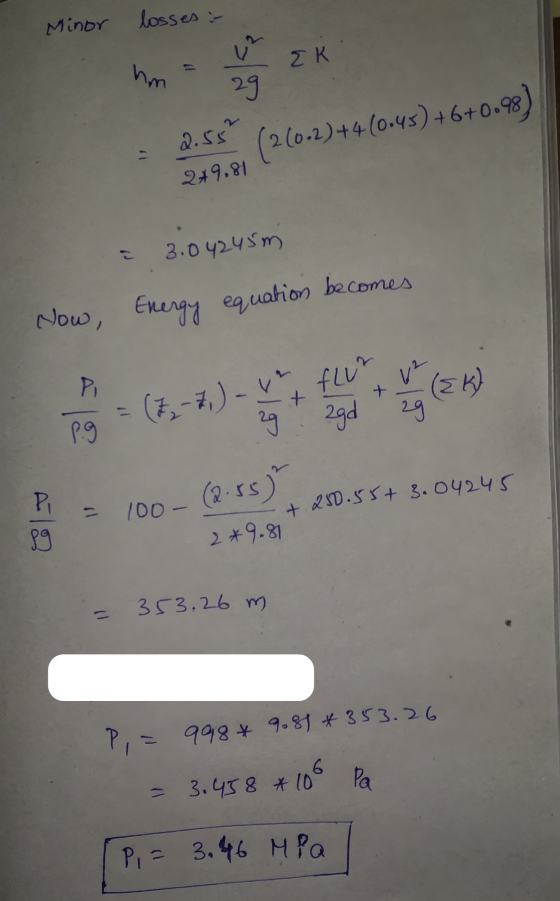

And p1= 3.46MPa

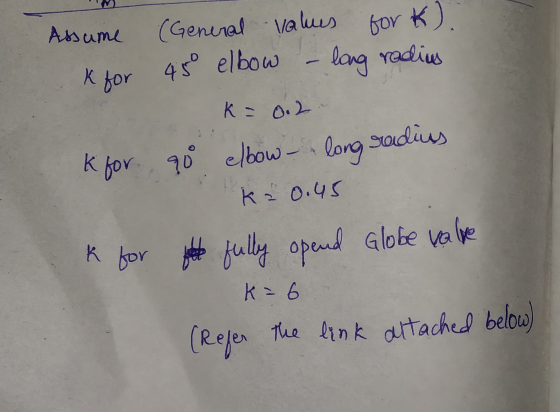

https://neutrium.net/fluid-flow/pressure-loss-from-fittings-excess-head-k-method/
Thank you ??
Add Answer to:
this is all of the information given
Problem 3. A piping system consists of 1200 m...
3) The system in Figure below consists of 1200 m of 5 cm cast-iron pipe, two...
3) The system in Figure below consists of 1200 m of 5 cm cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? (For water at 20°C, take p-998 kg/m3 and u-0.001 kg/m-s. For cast iron, take ε 0.26...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? Elevation 500 m Sharp exit 45° Open globe 45
Problem 5: The system in the...
A pump is used to pump water at 60oF from a reservoir whose surface is 4.0...
A pump is used to pump water at 60oF from a reservoir whose surface is 4.0 ft above the centerline of the pump inlet. The piping system from the reservoir to the pump consists of 10.5 ft of cast iron pipe with a diameter of 4.0 in and an average roughness (ε) of 0.02 inches. There are several minor losses: a sharp edged inlet (K – 0.5), three flanged smooth 90o regular elbows (K – 0.3 each), and a fully open flanged globe...
The system shown in the diagram consists of 1200m of cast-iron pipe with an internal diameter...
The system shown in the diagram consists of 1200m of cast-iron pipe with an internal diameter of 5cm (roughness of 0.00015 ft), two 45o and four 90o long radius elbows, a fully open bevel seat globe valve, and a sharp exit into a reservoir. If the elevation difference between the inlet and level in the reservoir is 10m, what gauge pressure is required at point 1 to deliver 0.005m^3/s of water at 20oC into the reservoir (use density of 998.2...
Water (p=998kg/m^3, u=0.001Pa*s) flows from reservoir A to reservoir B through the piping system shown. Each...
Water (p=998kg/m^3,
u=0.001Pa*s) flows from reservoir A to reservoir B through the
piping system shown. Each elbow has a minor loss coefficient of
1.2. Each valve has a minor loss coefficient of 3.2. The entrance
and exit are both sharp edged. Determine the flow rate L/min. You
now need to modify the piping system to increase the flow rate to
100L/min by reducing the length of the 25mm pipe. What must new
length of the 25mm pipe be?
86. Water...
In the given figure, the pipe entrance is sharp-edged. The elevation at the entrance is Az...
In the given figure, the pipe entrance is sharp-edged. The elevation at the entrance is Az 44 m. If the flow rate is 0.004 m3/s, what power in Wis extracted by the turbine? For water at 20 "C, take p 998 kg/m3 and ? 0.001 kgm s. For cast on take ? ~ 0.26 mm. The minor loss coefficients are Entrance: 0.5; 5-cm 2 open globe valve: K-6.9 Take ?-227 For the given flow. take f 0.0316. Round the answer...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
Water at 70°F flows by gravity from a large reservoir at a high elevation to a...
Water at 70°F flows by gravity from a large reservoir at a high elevation to a smaller one through a 60-ft-long, 2-in-diameter cast iron piping system that includes four standard flanged elbows, a well-rounded entrance, a sharp-edge exit and a fully open gate value. Take the free surface of the lower reservoir as the reference level and the elevation of the higher reservoir is 12.5 ft. a) Make a schematic of the problem b) Determine the flow rate (ft/min)
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004...
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004 m3/s, what power, in W, is extracted by the turbine? (For water at 20°C, take ρ-998 kg/m3 and μ 0.001 kg/ms. For cast iron, take ε ~ 0.26 mm) Open globe valve Turbine 40 m Water Cast iron: L 125 m, D 5 cm
The total length of the piping system made of cast iron providing hot water to a...
The total length of the piping system made of cast iron providing hot water to a house is considered to have a 42m length with a constant diameter. The entrance gage pressure is 85 kPa and exit at 15 kPa gaged. Consider the water density equal 980 Kg/m' and the viscosity 1.138x10 Kg/ms. a) Compute the piping system diameter if the volumetric flow rate provided by this system is equal to 0.1 L/s. There is no pump present in this...
3) The system in Figure below consists of 1200 m of 5 cm cast-iron pipe, two 45° and four 90° flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? (For water at 20°C, take p-998 kg/m3 and u-0.001 kg/m-s. For cast iron, take ε 0.26...
Problem 5: The system in the Figure consists of 1200 m of 5 cm cast-iron pipe, two 45o and four 90 flanged long-radius elbows, a fully open flanged globe valve, and a sharp exit into a reservoir. If the elevation at point 1 is 400 m, what gage pressure is required at point 1 to deliver 0.005 m3/s of water at 20°C into the reservoir? Elevation 500 m Sharp exit 45° Open globe 45
Problem 5: The system in the...
Water (p=998kg/m^3,
u=0.001Pa*s) flows from reservoir A to reservoir B through the
piping system shown. Each elbow has a minor loss coefficient of
1.2. Each valve has a minor loss coefficient of 3.2. The entrance
and exit are both sharp edged. Determine the flow rate L/min. You
now need to modify the piping system to increase the flow rate to
100L/min by reducing the length of the 25mm pipe. What must new
length of the 25mm pipe be?
86. Water...
In the given figure, the pipe entrance is sharp-edged. The elevation at the entrance is Az 44 m. If the flow rate is 0.004 m3/s, what power in Wis extracted by the turbine? For water at 20 "C, take p 998 kg/m3 and ? 0.001 kgm s. For cast on take ? ~ 0.26 mm. The minor loss coefficients are Entrance: 0.5; 5-cm 2 open globe valve: K-6.9 Take ?-227 For the given flow. take f 0.0316. Round the answer...
Two water reservoirs A and B are connected to each other through a 35m-long, 2-cm-diameter cast iron pipe with a sharp-edged entrance. The pipe also involves a swing check valve and a fully open gate valve. The water level in both reservoirs is the same, but reservoir A is pressurized by compressed air while reservoir B is open to the atmosphere at 94 kPa. If the initial flow rate through the pipe is 1.2 L/s, determine the air pressure (gage)...
Water at 70°F flows by gravity from a large reservoir at a high elevation to a smaller one through a 60-ft-long, 2-in-diameter cast iron piping system that includes four standard flanged elbows, a well-rounded entrance, a sharp-edge exit and a fully open gate value. Take the free surface of the lower reservoir as the reference level and the elevation of the higher reservoir is 12.5 ft. a) Make a schematic of the problem b) Determine the flow rate (ft/min)
2) In the Figure below, the pipe entrance is sharp-edged. If the flow rate is 0.004 m3/s, what power, in W, is extracted by the turbine? (For water at 20°C, take ρ-998 kg/m3 and μ 0.001 kg/ms. For cast iron, take ε ~ 0.26 mm) Open globe valve Turbine 40 m Water Cast iron: L 125 m, D 5 cm
The total length of the piping system made of cast iron providing hot water to a house is considered to have a 42m length with a constant diameter. The entrance gage pressure is 85 kPa and exit at 15 kPa gaged. Consider the water density equal 980 Kg/m' and the viscosity 1.138x10 Kg/ms. a) Compute the piping system diameter if the volumetric flow rate provided by this system is equal to 0.1 L/s. There is no pump present in this...
