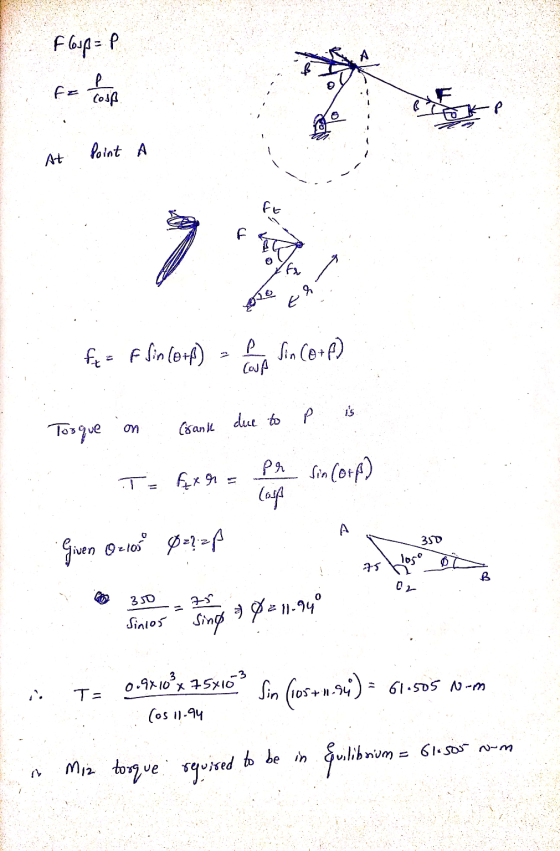

In the crank-connecting rod mechanism shown in the figure, the friction between the piston and the cylinder is neglected. Find the M 12 torque required to be in static equilibrium at the given crank position. (O2A = 75 mm, AB = 350 mm, P = 0.9 kN)
Homework Answers
Add Answer to:
In the crank-connecting rod mechanism shown in the figure, the
friction between the piston and the...
Crank and connecting rod mechanism shown in Figure 1, piston and cylinder friction between has been...
Crank and connecting rod mechanism shown in Figure 1, piston and cylinder
friction between has been neglected. Static stability at the given crank position
find the M12 torque required to make it happen. (O2A = 75 mm, AB = 350 mm, P = 0.9 kN)

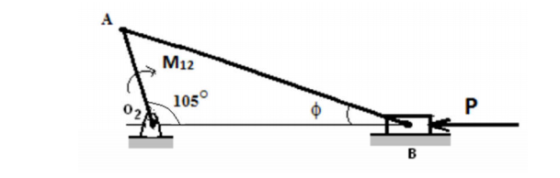

A M12 1050 02 P B Şekil 1. crank-connecting rod mechanism
