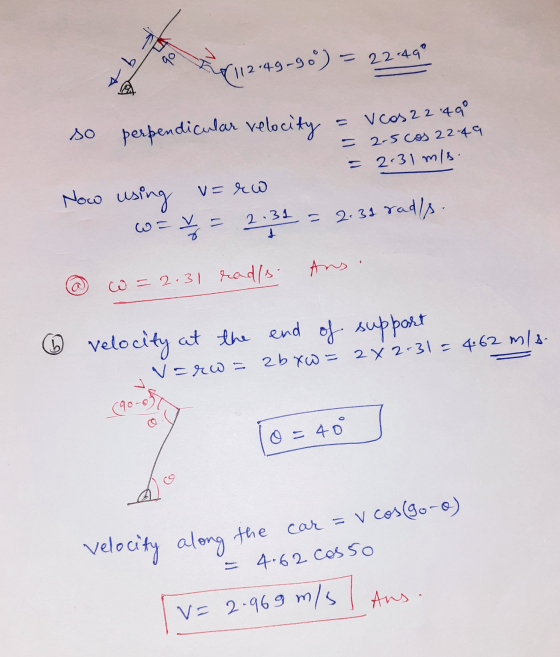

4. Answer the following questions about the jack system shown below. At the time depicted, 0=40°...
Question 2: The crane's arm has a pin support at A. The hydraulic cylinder BC exerts...
Question 2: The crane's arm has a pin support at A. The hydraulic cylinder BC exerts a force on the arm at C in the L.. direction paralled to BC. The crane's arm has a mass of 200kg, and its weight can be assumed at a point 2m to the right of A. If the mass of the suspended box is 800 kg and the system is in equilibrium, what is the magnitude of the force exerted by the hydraulic...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in Figure Q1a comprises an arm AB attached to a rotating joint at point A, which can also be elevated by a hydraulic ram. The arm has mass 100 kg and moment of inertia IG = 10 kgm about mass centre G. A fixed x-y frame is shown with its origin at point A. At the instant shown, the arm is in the horizontal position...
For the next 7 questions, consider the system below. The large block has a mass of...
For the next 7 questions, consider the system below. The large block has a mass of 45 kg (CG in center), with a width of 2 m and height of 1 m. The cable attaches to the large block at its corner as shown. The small block has a mass of 40 kg. Do NOT neglect the mass of the pulley. The pulley has a mass of 10 kg and a radius of 0.25. The pulley can be assumed to...
Shown below is a small particle of mass 19 g that is moving at a speed...
Shown below is a small particle of mass 19 g that is moving at a speed of 10 m/s when it collides with and sticks to the edge of a uniform solid cylinder. The cylinder is free to rotate about the axis through its center and perpendicular to the page. The cylinder has a mass of 0.4 kg and a radius of 20 cm and is initially at rest. 10 m/s Before After (a) What is the angular velocity (in...
value of the answer. Two forces of magnitude 80 N, as shown in the figure below,...
value of the answer. Two forces of magnitude 80 N, as shown in the figure below, act on a cylinder (I= 12 MR?) of radius 4 m and mass 6.25 kg. The cylinder, which is initially at rest, sits on a frictionless surface. What is the angular velocity of the cylinder in rad/s after 1 second? Write your answer with ONE decimal place. F F
Shown below is a small particle of mass 33 g that is moving at a speed...
Shown below is a small particle of mass 33 g that is moving at a speed of 10 m/s when it collides with and sticks to the edge of a uniform solid cylinder. The cylinder is free to rotate about the axis through its center and perpendicular to the page. The cylinder has a mass of 0.4 kg and a radius of 18 cm and is initially at rest. (a) What is the angular velocity (in rad/s) of the system...
The system shown in elevation below and plan above consists of four spheres supported by a...
The system shown in elevation below and plan above consists of four spheres supported by a brown frame of negligible mass. The blue sphere each have mass m_blue = 10 kg. The two black spheres each have mass m_black = 7.5 kg. Each blue sphere is located a distance r_blue = 800 mm from the vertical axis of rotation and each black sphere is located a distance r_Black = 1.20 m from the axis of rotation. When the system is...
To apply the equations of motion to a system that involves rotation about a fixed axis and to use this information to determine key characteristics. The slender rod AB shown has a mass of m=57.0 kg an...
To apply the equations of motion to a system that involves
rotation about a fixed axis and to use this information to
determine key characteristics.
The slender rod AB shown has a mass of m=57.0 kg and is being
supported by a rope and pulley system stationed at C. Starting from
rest (in the position shown), the rope and pulley system tug on the
rod causing it to rotate about A. The torque applied to the pulley
is T=2.25 kN⋅m...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionle...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
i want just (F) 2. (40 points) In the engine mechanism shown in fig. 2, the...
i want just (F)
2. (40 points) In the engine mechanism shown in fig. 2, the crank AB has a constant clockwise angular velocity of 2000 rpm.And the connecting rod is a uniform, slender rod whose center of mass is in its geometric center G. For the crank position shown determine l 8 in 3in Figure 2: Problem 2 (a) (2.5 points) The velocity of B (b) (5 points) The angular velocity of the connecting rod BD, and the velocity...
Question 2: The crane's arm has a pin support at A. The hydraulic cylinder BC exerts a force on the arm at C in the L.. direction paralled to BC. The crane's arm has a mass of 200kg, and its weight can be assumed at a point 2m to the right of A. If the mass of the suspended box is 800 kg and the system is in equilibrium, what is the magnitude of the force exerted by the hydraulic...
01. Answer both parts of this question. Part-1 2D Rigid Body Dynamics The machine shown in Figure Q1a comprises an arm AB attached to a rotating joint at point A, which can also be elevated by a hydraulic ram. The arm has mass 100 kg and moment of inertia IG = 10 kgm about mass centre G. A fixed x-y frame is shown with its origin at point A. At the instant shown, the arm is in the horizontal position...
For the next 7 questions, consider the system below. The large block has a mass of 45 kg (CG in center), with a width of 2 m and height of 1 m. The cable attaches to the large block at its corner as shown. The small block has a mass of 40 kg. Do NOT neglect the mass of the pulley. The pulley has a mass of 10 kg and a radius of 0.25. The pulley can be assumed to...
Shown below is a small particle of mass 19 g that is moving at a speed of 10 m/s when it collides with and sticks to the edge of a uniform solid cylinder. The cylinder is free to rotate about the axis through its center and perpendicular to the page. The cylinder has a mass of 0.4 kg and a radius of 20 cm and is initially at rest. 10 m/s Before After (a) What is the angular velocity (in...
value of the answer. Two forces of magnitude 80 N, as shown in the figure below, act on a cylinder (I= 12 MR?) of radius 4 m and mass 6.25 kg. The cylinder, which is initially at rest, sits on a frictionless surface. What is the angular velocity of the cylinder in rad/s after 1 second? Write your answer with ONE decimal place. F F
The system shown in elevation below and plan above consists of four spheres supported by a brown frame of negligible mass. The blue sphere each have mass m_blue = 10 kg. The two black spheres each have mass m_black = 7.5 kg. Each blue sphere is located a distance r_blue = 800 mm from the vertical axis of rotation and each black sphere is located a distance r_Black = 1.20 m from the axis of rotation. When the system is...
To apply the equations of motion to a system that involves
rotation about a fixed axis and to use this information to
determine key characteristics.
The slender rod AB shown has a mass of m=57.0 kg and is being
supported by a rope and pulley system stationed at C. Starting from
rest (in the position shown), the rope and pulley system tug on the
rod causing it to rotate about A. The torque applied to the pulley
is T=2.25 kN⋅m...
Q-4 (25 pts A uniform bar of length (L), cross sectional area (A) and mass (m) is free to rotate about a frictionless hinge at "O" in a horizontal plane. At the instant shown its angular velocity is (w) rad/sec clockwise and the applied torque (T) is clockwise. For the instant determine: a) The reactions at the hinge "O b) The internal forces (Shear force V, axial force F) in the middle of the bar (xeL/2 from hinge "O") Hint:...
i want just (F)
2. (40 points) In the engine mechanism shown in fig. 2, the crank AB has a constant clockwise angular velocity of 2000 rpm.And the connecting rod is a uniform, slender rod whose center of mass is in its geometric center G. For the crank position shown determine l 8 in 3in Figure 2: Problem 2 (a) (2.5 points) The velocity of B (b) (5 points) The angular velocity of the connecting rod BD, and the velocity...
