Shown below is a small particle of mass 33 g that is moving at a speed...
Shown below is a small particle of mass 33 g that is moving at a speed of 10 m/s when it collides with and sticks to the edge of a uniform solid cylinder. The cylinder is free to rotate about the axis through its center and perpendicular to the page. The cylinder has a mass of 0.4 kg and a radius of 18 cm and is initially at rest.
(a)

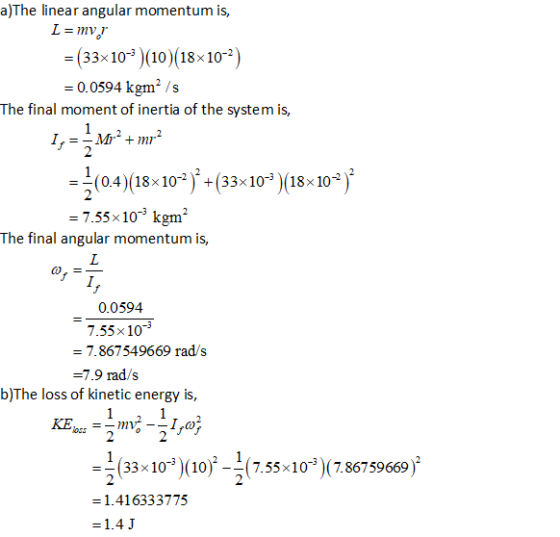

What is the angular velocity (in rad/s) of the system after the collision? (Indicate the direction with the sign of your answer.)
(b)
How much kinetic energy (in J) is lost in the collision?
