Homework Answers
They asked for diameter of brass portion.
The answer is 42.695 mm or 0.042695m
Steps are given in the attached picture
Add Answer to:

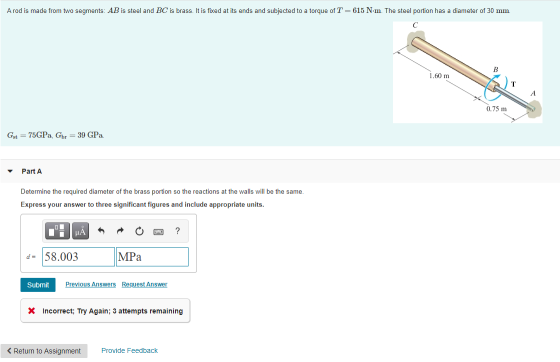

A rod is made from two segments: AB is steel and BC is brass. It is...
3. A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to two torqu...
3. A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to two torques as shown in the figure. The steel portion has a diameter of dAN-30mm. The brass portion a diameter of dac-60mm. GAB-75GPa, GBC-37.5GPa. (1) Determine the support reaction at A and C. (2) Draw the stress distribution on a volume element at point E. (You don't need to know between D and E. The location...
Problem 5.88 A rod is made from two segments AB is steel and BC s brass. It is foxed at its ends and subjected to a...
Problem 5.88 A rod is made from two segments AB is steel and BC s brass. It is foxed at its ends and subjected to a torque of T 680 N-m Ga 75 GPa G 39 GPa (Figure 1) Part A Express your answer to three significant figures and include the appropriate units 因 Figure 1 of 1 ? d Value Units 60 m N-m Provide Feedback .75 m
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (E, -200 GPa 17 c)and portion BC is made of brass (E,-105 GPa, b-20.9 x 10-6/C) Knowing that the rod is initially unstressed, determine the compressive force induced inABC when there is a temperature rise of 53 °C 30-mm diameter 200 mm 56-mm diameter 380 mm
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel with the following properties (Es 200 GPa, as 11.7 x 10 6/C) and portion BC is made of brass with the following properties (E, 105 GPa, a 20.9 x 10 6/°C). Determine the compressive force induced in ABC when there is a temperature rise of 50°C, knowing that the rod is initially unstressed 2. 30-mm diameter 250 mm
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends,...
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends, as shown in figure Q3 below. Portion AB is made of brass (E 105 Gpa, and ь-20.9 x 10-6 per °C) and portion BC is made out of aluminum (Eb 72 Gpa, and otb 23.9 x 106 per °C). The rod is initially unstressed at room temperature of 20 °C. If the temperature changes to 62 °C, find: a) the resulting normal stress in...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion...
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (Es = 200 GPa and αs = 11.7 × 10-6/°C) and portion BC is made of brass (Eb = 105 GPa and αb = 20.9 × 10-6/°C). Knowing that the rod is initially unstressed, determine the compressive force induced in ABC when there is a temperature rise of 70°C. (Round the final answer to one decimal place.)
CE 3350 Summer 2019 EXAM 2 NAME Mohama Alhemian Closed book, closed notes, closed hon sheet...
CE 3350 Summer 2019 EXAM 2 NAME Mohama Alhemian Closed book, closed notes, closed hon sheet only formulas are allowed; you collected with the exam. You may us lowed; you cannot write One 8 " by 11" formula sheet is allowed. On the formul Write definitions or sample problems. Formula sheet will b blator. You cannot use a cell phone. 1. (35 points) Given: A rod is made from two segments. torque of 700 N.m. The steel portion has a...
Required information The allowable shearing stress is 15 ksi in the steel rod AB and 8...
Required information The allowable shearing stress is 15 ksi in the steel rod AB and 8 ksi in the brass rod BC. A torque of magnitude T = 13 kip-in. is applied at A. T Steel Brass Determine the required diameter of rod AB. (Round the final answer to three decimal places.) The required diameter of rod AB is D in. Determine the required diameter of rod BC. (Round the final answer to three decimal places.) The required diameter of...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment 4B is solid with a diameter of 100 mm and BC is hollowed with an outer diameter of 75 mm and wall thickness of 5 mm. The shear modulus is 80 GPa for segment AB and 60 GPa for BC Extemal torques To=25 Nm in the counter-clockwise direction is applied at Cand 1s=10 Nm in the clockwise direction is applied at B. A counter-clockwise...
Figure Q1 The jib crane is pinned at A and supports a chain hoist that can travel along the bottom flange of the a) the force in rod BC b) the minimum diameter of rod BC (to the nearest 5 mm)....
Figure Q1 The jib crane is pinned at A and supports a chain hoist that can travel along the bottom flange of the a) the force in rod BC b) the minimum diameter of rod BC (to the nearest 5 mm). c) the minimum diameter of pin B (to the nearest 5 mm). The material properties are listed in Table Q2 and use factor of safety of FS-2 (10 marks) beam boist Figure Q2 Table Q2: Material properties (MPa) Shear...
3. A rod is made from two segments: AB is steel and BC is brass. It is fixed at its ends and subjected to two torques as shown in the figure. The steel portion has a diameter of dAN-30mm. The brass portion a diameter of dac-60mm. GAB-75GPa, GBC-37.5GPa. (1) Determine the support reaction at A and C. (2) Draw the stress distribution on a volume element at point E. (You don't need to know between D and E. The location...
Problem 5.88 A rod is made from two segments AB is steel and BC s brass. It is foxed at its ends and subjected to a torque of T 680 N-m Ga 75 GPa G 39 GPa (Figure 1) Part A Express your answer to three significant figures and include the appropriate units 因 Figure 1 of 1 ? d Value Units 60 m N-m Provide Feedback .75 m
A rod consisting of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel (E, -200 GPa 17 c)and portion BC is made of brass (E,-105 GPa, b-20.9 x 10-6/C) Knowing that the rod is initially unstressed, determine the compressive force induced inABC when there is a temperature rise of 53 °C 30-mm diameter 200 mm 56-mm diameter 380 mm
A rod consist of two cylindrical portions AB and BC is restrained at both ends. Portion AB is made of steel with the following properties (Es 200 GPa, as 11.7 x 10 6/C) and portion BC is made of brass with the following properties (E, 105 GPa, a 20.9 x 10 6/°C). Determine the compressive force induced in ABC when there is a temperature rise of 50°C, knowing that the rod is initially unstressed 2. 30-mm diameter 250 mm
3. A rod consisting of two cylindrical portions AB and BC is restrained at both ends, as shown in figure Q3 below. Portion AB is made of brass (E 105 Gpa, and ь-20.9 x 10-6 per °C) and portion BC is made out of aluminum (Eb 72 Gpa, and otb 23.9 x 106 per °C). The rod is initially unstressed at room temperature of 20 °C. If the temperature changes to 62 °C, find: a) the resulting normal stress in...
CE 3350 Summer 2019 EXAM 2 NAME Mohama Alhemian Closed book, closed notes, closed hon sheet only formulas are allowed; you collected with the exam. You may us lowed; you cannot write One 8 " by 11" formula sheet is allowed. On the formul Write definitions or sample problems. Formula sheet will b blator. You cannot use a cell phone. 1. (35 points) Given: A rod is made from two segments. torque of 700 N.m. The steel portion has a...
Required information The allowable shearing stress is 15 ksi in the steel rod AB and 8 ksi in the brass rod BC. A torque of magnitude T = 13 kip-in. is applied at A. T Steel Brass Determine the required diameter of rod AB. (Round the final answer to three decimal places.) The required diameter of rod AB is D in. Determine the required diameter of rod BC. (Round the final answer to three decimal places.) The required diameter of...
4.11. A shaft ABC is made of two segments AB and BC (Figure 4. 11). Segment 4B is solid with a diameter of 100 mm and BC is hollowed with an outer diameter of 75 mm and wall thickness of 5 mm. The shear modulus is 80 GPa for segment AB and 60 GPa for BC Extemal torques To=25 Nm in the counter-clockwise direction is applied at Cand 1s=10 Nm in the clockwise direction is applied at B. A counter-clockwise...
Figure Q1 The jib crane is pinned at A and supports a chain hoist that can travel along the bottom flange of the a) the force in rod BC b) the minimum diameter of rod BC (to the nearest 5 mm). c) the minimum diameter of pin B (to the nearest 5 mm). The material properties are listed in Table Q2 and use factor of safety of FS-2 (10 marks) beam boist Figure Q2 Table Q2: Material properties (MPa) Shear...
