Question

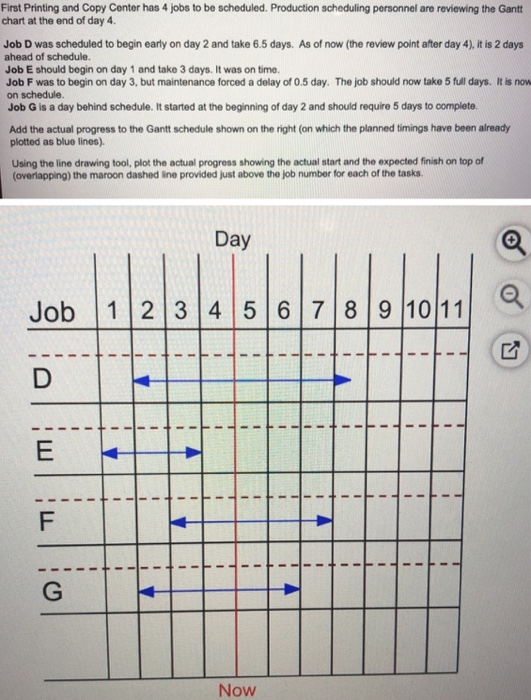

First Printing and Copy Center has 4 jobs to be scheduled. Production scheduling personnel are reviewing the Gantt chart at the end of day 4. Job D was scheduled to begin early on day 2 and take 6.5 days. As of now (the review point after day 4), it is 2 days ahead of schedule. Job E should begin on day 1 and take 3 days. It was on time. Job F was to begin on day 3, but maintenance forced a delay of 0.5 day. The job should now take 5 full days. It is now on schedule. Job G is a day behind schedule. It started at the beginning of day 2 and should require 5 days to complete. Add the actual progress to the Gantt schedule shown on the right (on which the planned timings have been already plotted as blue lines). Using the line drawing tool, plot the actual progress showing the actual start and the expected finish on top of (overlapping) the maroon dashed Ine provided just above the job number for each of the tasks Day Job 1 2 3 4 5 6 7 8 9 10 11 -- - -- D - - - 1 - E 4 1 - 1 - - - - - - 1 1 1 F 1 - 1 - - 1 G Now

Answer 1

Given and inference is as follows,

Activity	Inference	Completion
Job D	2 day ahead o schedule, 1 day early started; scheduled completion reduces to 5.5	4/5.5 days
Job E	No Comments	100%
Job F	dealy of 0.5 day	1.5/5 days
Job G	1 day delay	2/5 days

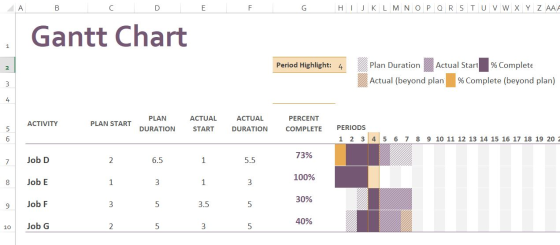

Updated Gantt Chart is as follows,

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z AAA Gantt Chart 1 Period Highlight: 4 2. Plan Duration Actual Start % Complete Actual (beyond plan % Complete (beyond plan) 3 4 PLAN ACTUAL PERCENT ACTIVITY PLAN START ACTUAL DURATION DURATION START COMPLETE PERIODS 5 6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 7 Job D 73% 2 6.5 1 5.5 100% 8 Job E 1 3 1 3 30% 9 Job F 3 5 3.5 5 40% 10 Job G 2 5 3 5

Note: 0.5 day tolerance can’t be accumulated in excel cell. It is advised to refer ‘Work Completion Column’ for Job completion of D & F.

If you like the answer please give an up-vote, this will be quite encouraging for me, thank you.

If you have further suggestions in answer, please write below on the comment section, I will certainly look into it.
