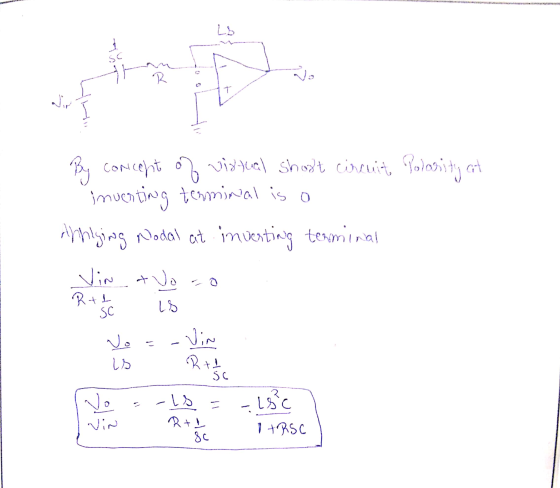

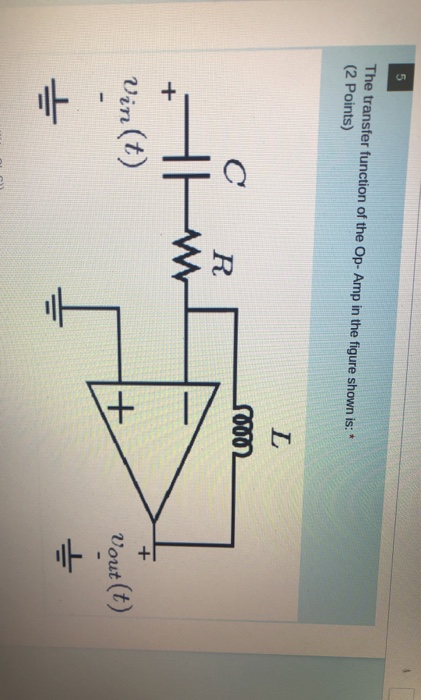

The transfer function of the Op-Amp in the figure shown is: * (2 Points) L S0002...
V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it has infinite power supplies (i.e. it won't clip) If VIN varies with time, like ViI(t). You can assume that at t-0, the capacitor is discharged and VIN(0)-OV. Find the following in terms of R, C, and VIn(t) for each circuit above. a Vourt) b The current into the capacitor Ic() from the V-...
A. Consider the circuit in Figure 7.1 to be an op amp integrator. Using the ideal op amp model and KCL, show that:B. If Vin is a square wave, what will the shape of Vout be? C. If Vin is a triangle wave, what will the shape of Vout be? D. If Vin is a sine wave, what will the shape of Vout be? E. Now consider the circuit in Figure 7.1 to be an active low-pass filter. Show that the amplitude response...
Figure 2 shows a multiple op-amp networks combined to produce a gain amplifier circuit. For the given circuit: (i) Name all the type of op-amp circuits shown by Op-Amp 1 until Op-Amp 5. (ii) Calculate the output of each Op-Amp 1 until Op-Amp 4. Assume Vin = 10mV (iii) Determine the output voltage at the last Op-Amp 5. From this value, calculate the gain produced by this Op-Amp network in overall, by using Av=Vos / Vin equation. [10 Marks] CO3,...
Inverting Amplifier Figure 4.2 shows the fundamental configuration of Op-Amp in which it is used as an inverting amplifier. In this configuration the ratio, R2/R1 completely controls the effective gain of the amplifier and it can be verified that the output voltage is equal to Vo = - (R2/R1)Vin R2 100K Q-10V R1 Vinow 20K 1 2 7 V Vo 3 -10v Figure 4.2 Part 1 - Inverting Amp: Procedure 1. Construct the circuit of figure 4.2 using Op-Amp IC...
Assume that C=10pf, C1=500fF, and the switches and op amp are
ideal. The switched are clocked with a complimentary nonoverlapping
clock. One period of the clock waveform is shown below where the
clock period of 1usec. If VIN=0.2sin(2000t), determine VOUT(t).
Assume the op amp is ideal.
Problem 3 Assume that C=10pf, C1=500fF, and the switches and op amp are ideal. The switched are clocked with a complimentary nonoverlapping clock. One period of the clock waveform is shown below where the...
QUESTION 2 [10 MARKS Assuming the op-amp circuit shown in Figure 2 to be ideal. Find the transfer function of the circuit. E,(s) [10 marks] G(s) R3 R1 A B R2 eo(t) e(t) C2 Figure 2 +
2. Obtain the transfer function Vo(s)/V (S) for the op-amp shown below. Hint use complex impedances to express currents in analysis. R Zün
Problem 1) (25 points) Consider the op amp based electrical circuit shown in Figure P1. 6 a. Obtain the differential equations involving v, and v. (15 points) b. Find the transfer function H(s) = V(s)/V(s). (10 points) + Ito Figure P1
please answer i and ii step by step
(c) An active filter circuit with an op-amp that is ideal in all respects is shown in Figure 1.3. It has the magnitude transfer function Vout R.0 Figure 1.3: Active filter circuit with an ideal op-amp Gi) By choosing suitable frequency points for the component values of R- 10 kQ and C -0.1 HF, draw the magnitude Bode plot for the filter circuit of Figure 1.3. Use the graph paper of Page...
Problem 3 (Op Amps) 15 1520 = 50 points R Assume the op-amp is ideal and a load is modeled as a current source IL. This circuit R allows us to set the voltage across the load as well as monitor its current. Vin, Vo, and R are R R known quantities, but the load characteristics of VL and II are unknown. (a) What is Vi as a function of vin, Vo, and V Vin R? (b) What is Ii...
