V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it ha...

Question

Question

V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it has infi

engineering Electrical-Engineering

Answer 1

Answer #1

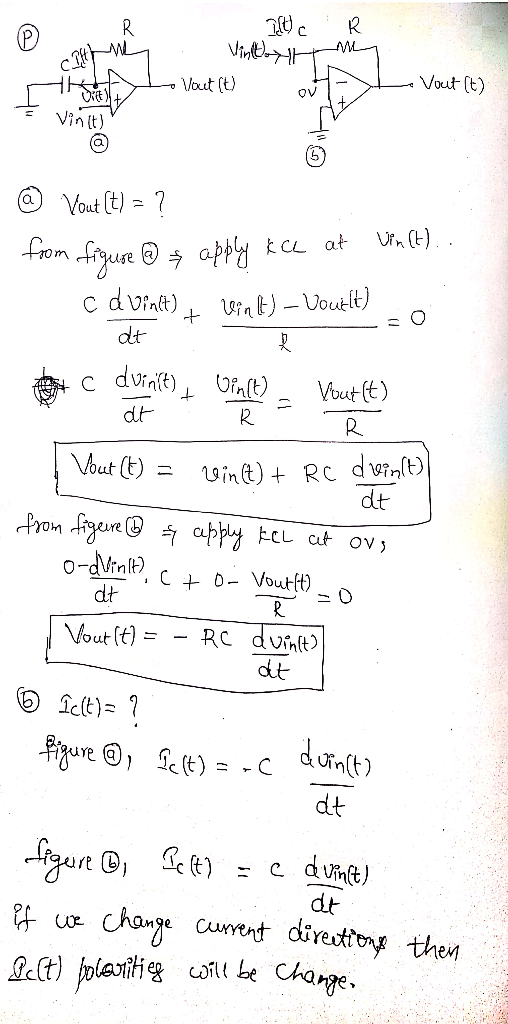

Vin Vout (t) Vout (t) ov Vinlt) from.gure ラapply ka at rn (t) R. dt cdt- dt dt

Answer 2

Similar Homework Help Questions

In the circuit below, assume the op-amp is ideal and that: • RA = 14 k2...

In the circuit below, assume the op-amp is ideal and that: • RA = 14 k2 RF = 25 ks 2 • VA= 14 V IF RE m RA VAM IA Vout What is the value of Vout? Give your answer in V to 1 decimal place. In the circuit below, assume the op-amp is ideal and that: . RA = 14 kg RF = 3622 • VA= 6.4V . RE RA Vout What is the value of Vin? 6.4V...
Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are:...

Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are: +V-15V and -Va-15V Use the node voltage method to find the following quantities: a) a b) Va c) Vo (you should get Vo -6.5 V) 50k Ω 30k Ω 10k Ω 10k Ω 0.5 v
5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp...

5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp circuit configuration is this? b) Find in terms of us . c) Find the range of values for e, such that e, does nol saturate and thc op amp remains in its lincar region of operation. Figure P5.19 40 kΩ 10 V 12 kΩ 10 V 1 S1DE

A. Consider the circuit in Figure 7.1 to be an op amp integrator. Using the ideal op amp model and KCL, show that:

A. Consider the circuit in Figure 7.1 to be an op amp integrator. Using the ideal op amp model and KCL, show that:B. If Vin is a square wave, what will the shape of Vout be? C. If Vin is a triangle wave, what will the shape of Vout be? D. If Vin is a sine wave, what will the shape of Vout be? E. Now consider the circuit in Figure 7.1 to be an active low-pass filter. Show that the amplitude response...
Ch 5 Analysis of Ideal Op Amp Circuits 1 of 11> Part B Ideal op amp...

Ch 5 Analysis of Ideal Op Amp Circuits 1 of 11> Part B Ideal op amp circuits with a voltage source: part 2 Learning Goal: For the circuit shown (Figure 1), determine the range (i.e., maximum and minimum values) of V so that the op amp operates in the linear region. Assume that R1-5 ? . R2-1 kN. R3-60 ? , and V,-15 V To analyze circuits that contain op amps using the ideal op amp assumptions. Express your answer...
12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+...

12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+ + Vo un V. 10ko | + 4V 12. The ideal op-amp circuit is shown in Figure. Find V+ ,V_ and vo, respectively. 2022 Vo 30k 2 V+ w V. w 10k2 4V

5. Assume that the Op-Amp in the adjoining circuit is ideal, and find the output voltage...

5. Assume that the Op-Amp in the adjoining circuit is ideal, and find the output voltage V. in terms of the two input voltages V1 and V2 of the circuit. Ideal D2RE bi
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...

Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
The op amp in the circuit in (Figure 1) is ideal. Suppose R-16 kΩ Part A...

The op amp in the circuit in (Figure 1) is ideal. Suppose R-16 kΩ Part A What op amp circuit configuration is this? O This circuit is an example of the inverting amplifier o This circuit is an example of the non-inverting amplifier Submit Request Answer ▼ Part B Find vo in terms of vs Express your answer in terms of vs 07 Figure 1 of 1 > Submit Request Answer Part C 56 kΩ Find the minimum value of...

Assume that C=10pf, C1=500fF, and the switches and op amp are ideal. The switched are clocked...

Assume that C=10pf, C1=500fF, and the switches and op amp are ideal. The switched are clocked with a complimentary nonoverlapping clock. One period of the clock waveform is shown below where the clock period of 1usec. If VIN=0.2sin(2000t), determine VOUT(t). Assume the op amp is ideal. Problem 3 Assume that C=10pf, C1=500fF, and the switches and op amp are ideal. The switched are clocked with a complimentary nonoverlapping clock. One period of the clock waveform is shown below where the...
