12. The ideal op-amp circuit is shown in Figure. Find , and, respectively 2012 30k V+...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

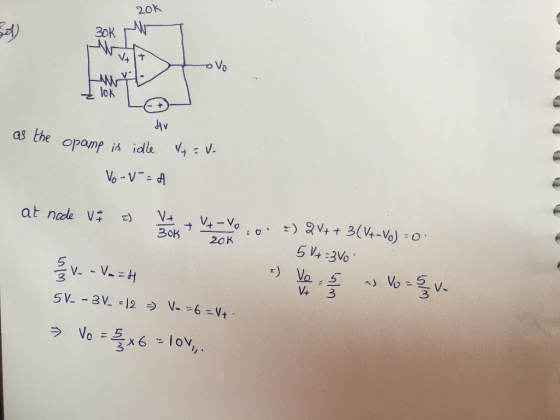

20K as the opamp is idle V=V. 30K V4 + Hv lok Vo-v=A at node VI VA 30K +-vo :) 2V+ + 3(V+-VO) - 20 K 5V+=300 i Ve 5 V+ Vo = 5

Answer 2

Similar Homework Help Questions

Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are:...

Problem 1. Assume the op-amp in the following circuit is ideal. The op-amp supply voltages are: +V-15V and -Va-15V Use the node voltage method to find the following quantities: a) a b) Va c) Vo (you should get Vo -6.5 V) 50k Ω 30k Ω 10k Ω 10k Ω 0.5 v
Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a...

Problem 2: In the circuit shown assume the Op-Amp is ideal. A) Find vo as a function of vi and vs. B) Next assume the Op-Amp is ideal, except its low frequency gain is Ao= 100 V/V. Now find vo as a function of vi and v2. C) The Op-Amp has a terminal frequency of fi 10° Hz, find the -3 dB (corner) frequency of the output signal w2 10K
V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it ha...

V in Figure 1: Op-amp circuit 1 V in V out Figure 2: Op-amp circuit 2 1 Assume that the op amp is ideal, and that it has infinite power supplies (i.e. it won't clip) If VIN varies with time, like ViI(t). You can assume that at t-0, the capacitor is discharged and VIN(0)-OV. Find the following in terms of R, C, and VIn(t) for each circuit above. a Vourt) b The current into the capacitor Ic() from the V-...

5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp...

5.4 The op amp in the circuit of Fig. P5.19 is ideal. a) What op amp circuit configuration is this? b) Find in terms of us . c) Find the range of values for e, such that e, does nol saturate and thc op amp remains in its lincar region of operation. Figure P5.19 40 kΩ 10 V 12 kΩ 10 V 1 S1DE
The op amp in the circuit in (Figure 1) is ideal. Suppose R-16 kΩ Part A...

The op amp in the circuit in (Figure 1) is ideal. Suppose R-16 kΩ Part A What op amp circuit configuration is this? O This circuit is an example of the inverting amplifier o This circuit is an example of the non-inverting amplifier Submit Request Answer ▼ Part B Find vo in terms of vs Express your answer in terms of vs 07 Figure 1 of 1 > Submit Request Answer Part C 56 kΩ Find the minimum value of...
63 k12 The Op Amp in the circuit shown in Fig. 1 is ideal, 30 k02...

63 k12 The Op Amp in the circuit shown in Fig. 1 is ideal, 30 k02 12 V 12 k 12 - 12 V + a. Calculate vo when Vg equals 4 V. b. Specify the range of values of vg so that the Op Amp operates in a linear mode. c. Assume that Vg equals 2 V and that the 63 K12 resistor is replaced with a variable resistor. What value of the variable resistor will cause the Op...

5-4: The following circuit contains an ideal op-amp. The variable feedback resistor Re is adjusted until...

5-4: The following circuit contains an ideal op-amp. The variable feedback resistor Re is adjusted until the op-amp saturates. Determine the value of R Re 1.6 kΩ 9 V 7.5 kΩ 9 V 18 V 1.5 kΩ 5-5: The following circuit contains an ideal op-amp. Assume Va = 1V, VB-1.5V, and Vc =-4V. Find the value of Vo. 220 kΩ 44 kΩ 10 V + 27.5 kΩ 80 k2 10 V 0a D)
Ch 5 Analysis of Ideal Op Amp Circuits 1 of 11> Part B Ideal op amp...

Ch 5 Analysis of Ideal Op Amp Circuits 1 of 11> Part B Ideal op amp circuits with a voltage source: part 2 Learning Goal: For the circuit shown (Figure 1), determine the range (i.e., maximum and minimum values) of V so that the op amp operates in the linear region. Assume that R1-5 ? . R2-1 kN. R3-60 ? , and V,-15 V To analyze circuits that contain op amps using the ideal op amp assumptions. Express your answer...
9. In this ideal op amp circuit: a) Find the output voltage vo in terms of...

9. In this ideal op amp circuit: a) Find the output voltage vo in terms of the input voltage v. b) The op amp is supplied by +10v and -10v. If0 V15v, find the range of the output voltage vo. (15 pts.) 10 k2 5 kQ 10V -10V ng 2.5v(+ 0)

QUESTION 2 [10 MARKS Assuming the op-amp circuit shown in Figure 2 to be ideal. Find...

QUESTION 2 [10 MARKS Assuming the op-amp circuit shown in Figure 2 to be ideal. Find the transfer function of the circuit. E,(s) [10 marks] G(s) R3 R1 A B R2 eo(t) e(t) C2 Figure 2 +
