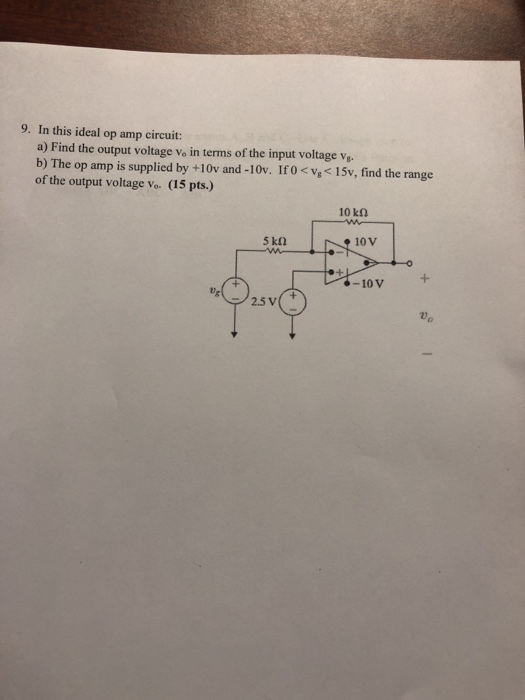

9. In this ideal op amp circuit: a) Find the output voltage vo in terms of...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

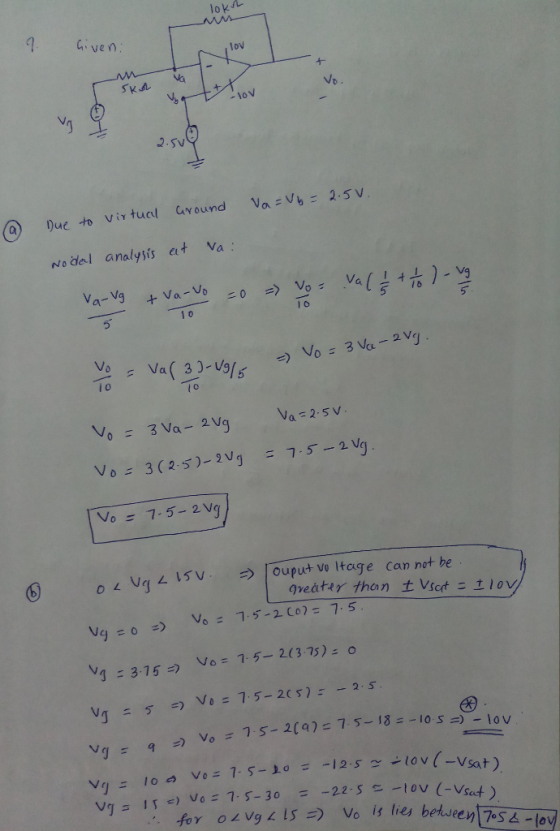

ok Gven lov Vo 2.5v 0 wo del analysis t Va 5 1 0 i o OLVg 15V- ouput vo ltage can not be Vset

Answer 2

Similar Homework Help Questions

1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit...

1. Find the ratio of the output voltage to the input voltage, Vo/Vin, in the circuit shown. State your assumptions in using the ideal op-amp model. 15 k2 Vin 2. Find the output voltage Vo in the circuit shown assuming an ideal op-amp. State your assumptions in using the ideal op-amp model 15 k12 Vo . Find the voltage Vx and the output voltage Vo in the circuit shown assuming ideal op-amp 3 k2 1 V 6 kn 12 k2
For the following circuit, find the output voltage Vo. Consider the Op Amp to ideal. be...

For the following circuit, find the output voltage Vo. Consider the Op Amp to ideal. be 40 k12 Vo 0
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2,...

Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K2, R3=5.1 K2, R4=6 KN, R5=14 KN, R6=4.2 KS, RL=10.3 KS, V1=1V, 12=0.5 mA and V3=3.2 V. R6 R1 R5 Vo w + * RL + 12 R2 V1 R3 R4 V3 Answer: OV Using the above circuit, but consider the following component values: R1= 2 K12 R2=8 K2, R3=2.9 K2, R4=6 KI2, R5=10.8 K92, R6=15 KO, RL=10 K2, V1=1V, 12=0.5mA and V3=2V....

5. Assume that the Op-Amp in the adjoining circuit is ideal, and find the output voltage...

5. Assume that the Op-Amp in the adjoining circuit is ideal, and find the output voltage V. in terms of the two input voltages V1 and V2 of the circuit. Ideal D2RE bi
Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2,...

Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K2, R2=8 K12, R3=3.8 KS2, R4=6 KI2, R5=15 KS2, R6=3.8 KN, RL=9.8 K12, V1=1V, 12=0.5 mA and V3=2.2 V. } R6 R1 w R5 w + Vo + } RL 12 R2 V1 R3 R4 + +1 V3 Using the above circuit, but consider the following component values: R1= 2 KN R2=8 K2, R3=4.1 K12, R4=6 KI2, R5=17.0 K12, R6=15 KI, RL=10 KI, V1=1V, 12=0.5mA...
Q2. For the op-amp circuit as shown below, given that RS = 49.5 k, RL =...

Q2. For the op-amp circuit as shown below, given that RS = 49.5 k, RL = 12 k 2, R1 = 10 kO, R2 = 9 ㏀, R3 = 7.5 ko, R4 = 5 ㏀R5 = 2.2 k2 Ry vo Ry Ri Rs (a) Determine the voltage gain G1-vo1/vs: Submit Answer Tries o/5 (b) Determine the voltage gain G2-vo/vs: Submit Answer Tries o/5 Q3. For the op-amp circuit shown below, find the value of VO, where R1 = 20 Ω,...

Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K12,...

Assuming an ideal op-amp in the following circuit, find output voltage, Vo if R1= 2 K12, R2=8 KN, R3=3.9 KN, R4=6 KN, R5=18 K2, R6=4.4 KN, RL=12.5 KN, V1=1V, 12=0.5 mA and V3=3.4 V. R6 R1 R5 Vo + + RL R2 V1 R3 R4 + V3 Answer: LOV Using the above circuit, but consider the following component values: R1= 2 KO2 R2=8 K12, R3=3.6 K12, R4=6 K12, R5=16.9 KN, R6=15 KN, RL=10 KO, V1=1V, 12=0.5mA and V3=2V. What is...
Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circ...

Good morning, I need help with the following, they all relate to OP Amps. Thanks in advance. 2 value 10.00 points Problem 05.010 An op amp voltage divider Find the voltage gain vo/vs of the circuit given below, where R1-18 kΩ and R2-14 k 2. 20 kΩ R1 1% R2 The voltage gain vo/vs of the circuit is Hints Referene eBook & Resources Hint#1 Check my work 3. 1000 points value Problem 05.025-Voltage follower Calculate the output voltage vo in...
U In the circuit with ideal Op Amp, de termme Vo, the output Voltage of Op...

U In the circuit with ideal Op Amp, de termme Vo, the output Voltage of Op Amp in phasor domain , rectangular format. JI" giu 71 + + in 1190° 21 Vo + O volts 2190 21 Volt 1190 voets

Solve by using basic node-voltage or superposition! The op amp in the circuit of Fig. P5.23...

Solve by using basic node-voltage or superposition! The op amp in the circuit of Fig. P5.23 is ideal. a) What op amp circuit configuration is this? b) Find vo in terms of vs c) Find the range of values for such that does not saturate and the op amp remains in its linear region of operation. Figure P5.23 96 kΩ 24 kΩ 10 V 16 kΩ 10V 24 kΩ
