Homework Answers
Add Answer to:

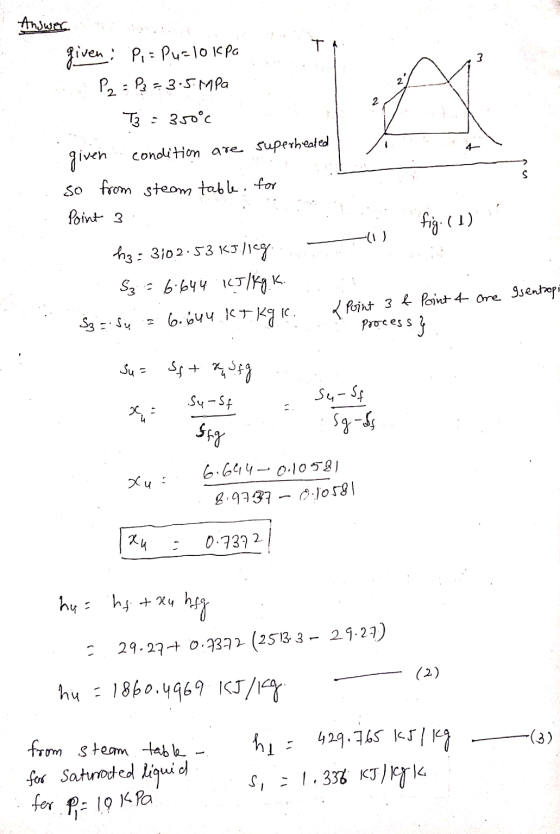

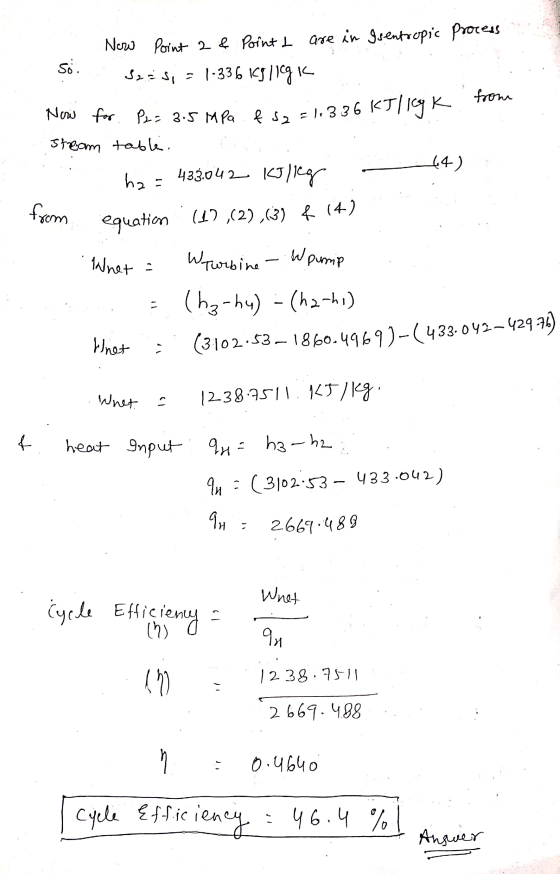

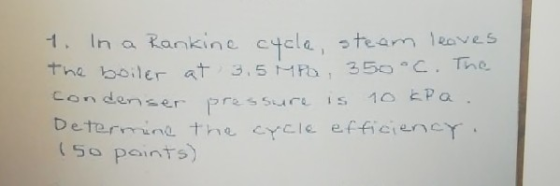

1. Ina Rankine cycle, steam leaves the boiler at 3.5 MPa 350oC. The condenser pressure is...
P8-29 A closed feedwater heater is used in a Rankine cycle Steam leaves the boiler at...
P8-29 A closed feedwater heater is used in a Rankine cycle Steam leaves the boiler at 20 MPa, 600°C. Between the high and low-pressure turbines, steam at 1 MPa is extracted and delivered to the closed feedwater heater. Feedwater exits the feedwater heater at 20 MPa and the saturation temperature of the 1-MPa steam; saturated liquid condensate is fed through a steam trap back to the condenser. Steam from the second- stage turbine enters the condenser at 10 kPa, and...
A Steam Rankine Cycle receives fluid from a boiler at 3.5 MN/m2 and 350oC, exhausts to...
A Steam Rankine Cycle receives fluid from a boiler at 3.5 MN/m2 and 350oC, exhausts to the condenser at 10 kN/m2 and returns the condensate to the boiler via a feed pump. Draw both the system showing plant layout and the cycle on a temperature/entropy graph. Neglecting feed pump work calculate :- The energy supplied per kg of steam. The dryness fraction of the steam entering the condenser. The Rankine efficiency. The Ideal power output if the mass flow rate...
7. Steam leaves the boiler in a steam turbine plant at 2 MPa, 300oC and is...
7. Steam leaves the boiler in a steam turbine plant at 2 MPa, 300oC and is expanded to 3.5 kPa before entering the condenser. Calculate the cycle efficiency.
Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature...
Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600oC is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency η of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what is...
2) A Rankine cycle generates steam at 5 MPa and 450°C leaving the boiler and the...
2) A Rankine cycle generates steam at 5 MPa and 450°C leaving the boiler and the turbine exhaust pressure is 7.5 kPa. The adiabatic efficiency of the turbine is 85%, and that of the pump is 70%. Determine (a) the net work in kW. (b) the thermal efficiency for the cycle, c) the change in availability of the steam as it passes through the boiler, and d) the irreversibility for the cycle. You may assume the environment is at 100...
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to th...
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to the steam in a furnace maintained at 800 K, and waste heat is rejected to the surroundings at 300 K. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the net work output, (b) the thermal efficiency...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600°C is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency n of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
(30 points) Rankine Cycle An ideal Rankine cycle has a turbine power output of 4 MW....
(30 points) Rankine Cycle An ideal Rankine cycle has a turbine power output of 4 MW. Saturated liquid at 20 kPa leaves the condenser, and the vapor at the exit to the isentropic turbine has a quality of 95 percent. The boiler pressure is 1.4 MPa. a. Find the mass flow rate of the steam (kg/s) b. What is the heat transfer into the boiler? c. What is the thermal efficiency for this cycle? Condenser
Steam Plant working on ideal Rankine Cycle has the following data: boiler pressure 60 bar; condenser...
Steam Plant working on ideal Rankine Cycle has the following data: boiler pressure 60 bar; condenser pressure 0.1 bar. The steam enters the turbine dry saturated. Determine: i) the quality of the steam leaving the turbine; ii) the cycle efficiency; iii) the work ratio; and iv) Specific Steam Consumption
P8-29 A closed feedwater heater is used in a Rankine cycle Steam leaves the boiler at 20 MPa, 600°C. Between the high and low-pressure turbines, steam at 1 MPa is extracted and delivered to the closed feedwater heater. Feedwater exits the feedwater heater at 20 MPa and the saturation temperature of the 1-MPa steam; saturated liquid condensate is fed through a steam trap back to the condenser. Steam from the second- stage turbine enters the condenser at 10 kPa, and...
2) A Rankine cycle generates steam at 5 MPa and 450°C leaving the boiler and the turbine exhaust pressure is 7.5 kPa. The adiabatic efficiency of the turbine is 85%, and that of the pump is 70%. Determine (a) the net work in kW. (b) the thermal efficiency for the cycle, c) the change in availability of the steam as it passes through the boiler, and d) the irreversibility for the cycle. You may assume the environment is at 100...
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to the steam in a furnace maintained at 800 K, and waste heat is rejected to the surroundings at 300 K. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the net work output, (b) the thermal efficiency...
(2) Steam generated in a Rankine steam power cycle at a pressure of 8 MPa and temperature 600°C is fed to a turbine. Exhaust from the turbine enters a condenser at 100 kPa, where it is condensed to saturated liquid, which is then pumped to the boiler. (a) (20 pts.) What is the thermal efficiency n of an ideal Rankine cycle operating at these conditions? (b) (5 pts.) If the net power production of the cycle is 80,000 kW, what...
(30 points) Rankine Cycle An ideal Rankine cycle has a turbine power output of 4 MW. Saturated liquid at 20 kPa leaves the condenser, and the vapor at the exit to the isentropic turbine has a quality of 95 percent. The boiler pressure is 1.4 MPa. a. Find the mass flow rate of the steam (kg/s) b. What is the heat transfer into the boiler? c. What is the thermal efficiency for this cycle? Condenser
