Homework Answers
Add Answer to:
highway engineering

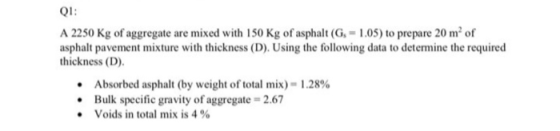

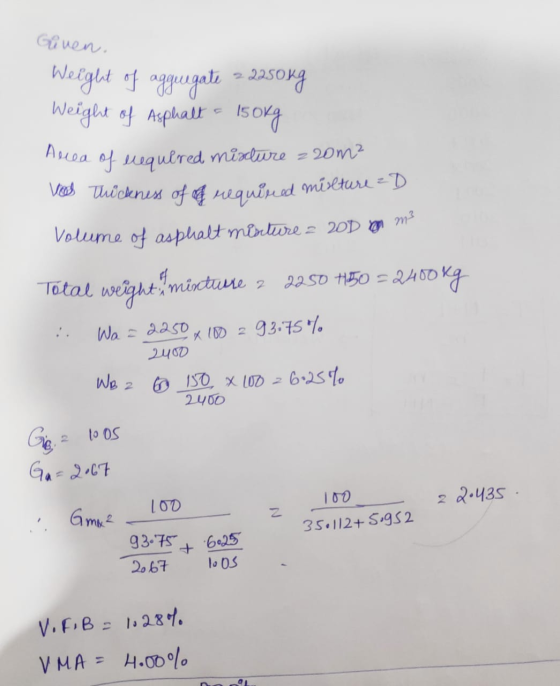

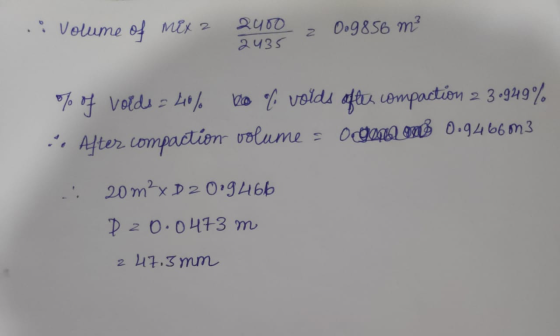

QI: A 2250 Kg of aggregate are mixed with 150 kg of asphalt (G....
An asphalt concrete specimen was blended together from 5 % asphalt binder (by weight) and aggregates...
An asphalt concrete specimen was blended together from 5 % asphalt binder (by weight) and aggregates with a specific gravity of 2.830. The bulk specific gravity of the asphalt concrete mixture was measured with 2.660 and the theoretical maximum specific gravity was determined at 2.795. Ignore absorption for all following calculations. a) the voids in the total mixture b) voids in the mineral aggregate
A bituminous mixture contains 65% coarse aggregate, 35% fine aggregate (by weight of total aggregate) and...
A bituminous mixture contains 65% coarse aggregate, 35% fine aggregate (by weight of total aggregate) and 4.8% asphalt (by weight of the mixture). Determine the bulk specific gravity of the mixture if, after compaction, it contains 7.0% air voids. Assume that the aggregate absorbs 0.3% of the asphalt by weight of the aggregate. The specific gravities of the materials are: Coarse Aggregate 2.723 Fine Aggregate 2.664 - 1.05
Another asphaltic concrete mixture consists of 42% coarse aggregates, 51% fine aggregates, and 7% mineral fillers....
Another asphaltic concrete mixture consists of 42% coarse aggregates, 51% fine aggregates, and 7% mineral fillers. The respective bulk specific gravities of these materials are 2.600, 2.710, and 2.690. The asphalt cement content of the total weight of the mix of a sample is 5.5%. The bulk specific gravity of the sample was calculated as 2.467, and the maximum bulk specific gravity of the mix was estimated using ASTM D2041 as 2.562. Determine the value of the sample's air voids,...
Question 1 An asphalt concrete specimen has the following properties: Asphalt content = A. by total...
Question 1 An asphalt concrete specimen has the following properties: Asphalt content = A. by total weight of mix. Bulk specific gravity of the mix = B. Theoretical maximum specific gravity - C. Bulk specific gravity of aggregate = D. Ignoring absorption, calculate the percents VTM, VMA, and VFA. Asphalt content Bulk specific gravity of Theoretical maximum specific gravity Bulk specific gravity of aggregate Name 1 Al Alawi Zawad Show Al Husaini.Base 2 Abdurahman Al Jazaeri,Mushah Ahmad Al Sharif Ahmed...
The Data given, An asphalt concrete specimen has the following properties: 1. Percent air voids in the compacted m...
The Data given,
An asphalt concrete specimen has the following properties: 1. Percent air voids in the compacted mix (VTM) 2. Voids in mineral aggregate (VMA) 3. Voids in mineral aggregate filed with asphalt (VFA) 4. Bulk specific gravity of compacted mix 5. Maximum (Rice) theoretical specific density 6. Plot VFA vs. binder content (i.e. 5 % , 5.5 % , 6%, and 6.5 % ) ( The specific binder content will be determined by the TA during lab depending...
Question 10 The aggregate mix used percent coarse aggregates, 52 percent fine aggregates, respective bulk specific...
Question 10 The aggregate mix used percent coarse aggregates, 52 percent fine aggregates, respective bulk specific gravities of these mate specific gravity from this total mix) are as follows: for the design of an asphalt concrete mixture consists of 40 and 8 percent mineral fillers. The rials are 2.680, 2.720, and 2.830. The of the asphalt cement is 1.020. Results of tests on specimens prepa aggregate combination and various percentages of ent (by weight of Weight of Specimen (g) Asphln...
33. Determine the volume of fine aggregate a) 0.27 ma c) 0.18 m3 b) 0.288 m3...
33. Determine the volume of fine aggregate a) 0.27 ma c) 0.18 m3 b) 0.288 m3 d)0.19 m3 34. Determine the volume of coarse aggregate a) 0.19 m3 c) 0.288 m3 b) 0.2 m3 d) 0.3 m3 35. Determine the volume of water a) 0.039 ma c) 0.058 m3 b) 0.04 m3 d) 0.06 m A compacted sample of HMA contains 5.5 percent asphalt binder by weight of total mix, and its bulk specific gravity is 2.431. The theoretical maximum...
What would be the maximum aggregate size used for the given mixture properties by using ACI...
What would be the maximum aggregate size used for the given mixture properties by using ACI Method of Mix Design. 28-day specified concrete strength is 3b Mpa, standard deviation is choosen as 3.a Mpa and it is required that no more than 1 test result in 200 will fall below the specified strength. Project Title: Detoration of wood column of a commercial building Project summary: Wood deterioration at the lower level of a heavy timber column, which supports five floor...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated...
10. Write a one-page summary of the attached paper? INTRODUCTION Many problems can develop in activated sludge operation that adversely affect effluent quality with origins in the engineering, hydraulic and microbiological components of the process. The real "heart" of the activated sludge system is the development and maintenance of a mixed microbial culture (activated sludge) that treats wastewater and which can be managed. One definition of a wastewater treatment plant operator is a "bug farmer", one who controls the aeration...
A bituminous mixture contains 65% coarse aggregate, 35% fine aggregate (by weight of total aggregate) and 4.8% asphalt (by weight of the mixture). Determine the bulk specific gravity of the mixture if, after compaction, it contains 7.0% air voids. Assume that the aggregate absorbs 0.3% of the asphalt by weight of the aggregate. The specific gravities of the materials are: Coarse Aggregate 2.723 Fine Aggregate 2.664 - 1.05
Another asphaltic concrete mixture consists of 42% coarse aggregates, 51% fine aggregates, and 7% mineral fillers. The respective bulk specific gravities of these materials are 2.600, 2.710, and 2.690. The asphalt cement content of the total weight of the mix of a sample is 5.5%. The bulk specific gravity of the sample was calculated as 2.467, and the maximum bulk specific gravity of the mix was estimated using ASTM D2041 as 2.562. Determine the value of the sample's air voids,...
Question 1 An asphalt concrete specimen has the following properties: Asphalt content = A. by total weight of mix. Bulk specific gravity of the mix = B. Theoretical maximum specific gravity - C. Bulk specific gravity of aggregate = D. Ignoring absorption, calculate the percents VTM, VMA, and VFA. Asphalt content Bulk specific gravity of Theoretical maximum specific gravity Bulk specific gravity of aggregate Name 1 Al Alawi Zawad Show Al Husaini.Base 2 Abdurahman Al Jazaeri,Mushah Ahmad Al Sharif Ahmed...
The Data given,
An asphalt concrete specimen has the following properties: 1. Percent air voids in the compacted mix (VTM) 2. Voids in mineral aggregate (VMA) 3. Voids in mineral aggregate filed with asphalt (VFA) 4. Bulk specific gravity of compacted mix 5. Maximum (Rice) theoretical specific density 6. Plot VFA vs. binder content (i.e. 5 % , 5.5 % , 6%, and 6.5 % ) ( The specific binder content will be determined by the TA during lab depending...
Question 10 The aggregate mix used percent coarse aggregates, 52 percent fine aggregates, respective bulk specific gravities of these mate specific gravity from this total mix) are as follows: for the design of an asphalt concrete mixture consists of 40 and 8 percent mineral fillers. The rials are 2.680, 2.720, and 2.830. The of the asphalt cement is 1.020. Results of tests on specimens prepa aggregate combination and various percentages of ent (by weight of Weight of Specimen (g) Asphln...
33. Determine the volume of fine aggregate a) 0.27 ma c) 0.18 m3 b) 0.288 m3 d)0.19 m3 34. Determine the volume of coarse aggregate a) 0.19 m3 c) 0.288 m3 b) 0.2 m3 d) 0.3 m3 35. Determine the volume of water a) 0.039 ma c) 0.058 m3 b) 0.04 m3 d) 0.06 m A compacted sample of HMA contains 5.5 percent asphalt binder by weight of total mix, and its bulk specific gravity is 2.431. The theoretical maximum...
