Question

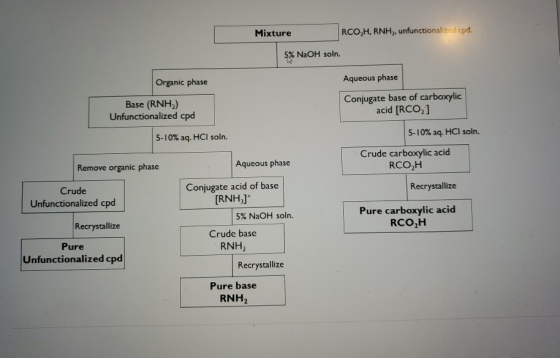

As it says in question 2 could you please help me make a flow chart like the provided example below?

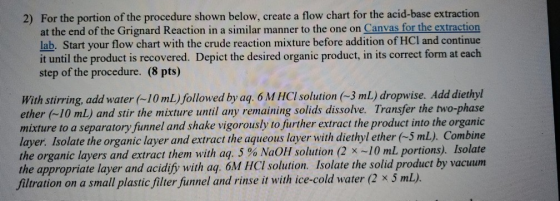

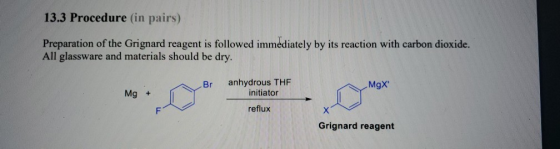

2) For the portion of the procedure shown below, create a flow chart for the acid-base extraction at the end of the Grignard Reaction in a similar manner to the one on Canvas for the extraction lab. Start your flow chart with the crude reaction mixture before addition of HCl and continue it until the product is recovered. Depict the desired organic product, in its correct form at each step of the procedure. (8 pts) With stirring, add water (~10 mL) followed by aq. 6 M HCl solution (~3 mL) dropwise. Add diethyl ether (-10 mL) and stir the mixture until any remaining solids dissolve. Transfer the two-phase mixture to a separatory funnel and shake vigorously to further extract the product into the organic layer. Isolate the organic layer and extract the aqueous layer with diethyl ether (-5 mL). Combine the organic layers and extract them with aq. 5% NaOH solution (2 x ~10 mL portions). Isolate the appropriate layer and acidify with aq. 6M HCl solution. Isolate the solid product by vacuum filtration on a small plastic filter funnel and rinse it with ice-cold water (2 x 5 mL).
