Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

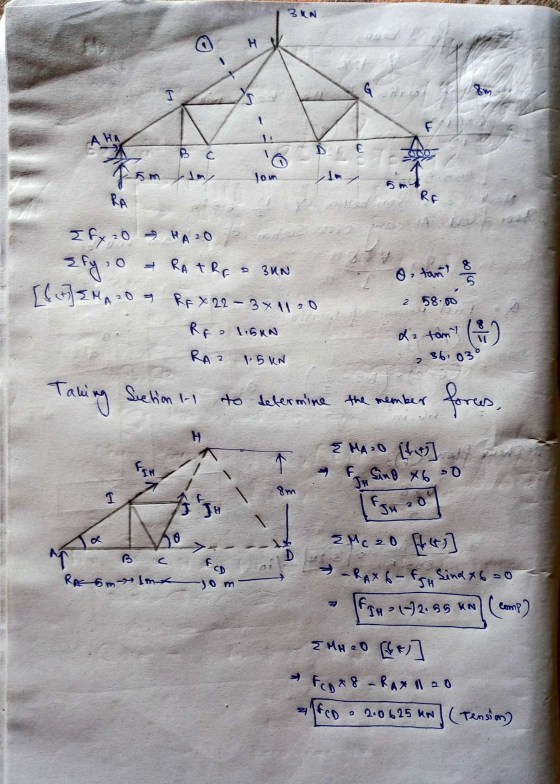

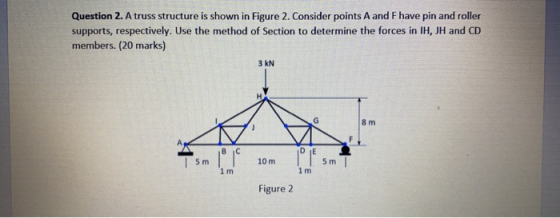

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) 3 KN 8 m IDE 5 m 10 m 5 5 m 1 m 1 m Figure 2 Sec 1 Pages: 2 of 2 Words: 81 of 177 188
Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) 3 kN G 8 m A B С | 5 m 10 m DE 5m 1 m 1 m Figure 2
Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) I 3 KN 8 m B | 5 m por 10 m DE 5 m 1 m Pole 1 m Figure 2

Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. 3 KN H G 8 m J A F B C DE | 5 m ° 10 m POLE 5 m 1 m 1 m
1. A simple truss structure is given in iure I below, joint A is commected to...

1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
Q1. Consider a truss shown in Fig.1. Joint A sits on a pin support and I...

Q1. Consider a truss shown in Fig.1. Joint A sits on a pin support and I on a roller support. () Determine the forces on members CD, FG and Hl, using two different methods (a) and (b). Identify the forces as Tension or Compression. (ii) Determine the member that carries maximum tension. (a) method of Joints, and (b) method of Sections 200 kN 200 kN 200 kN 200 kN 200 kN 4 m 3 m -5 m Fig.1 Truss

Estimate the redundant force in the truss member BC as shown in the following FIGURE. The...

Estimate the redundant force in the truss member BC as shown in the following FIGURE. The truss is subjected to a vertical load P as 50 kN. Members AB, AC, CD, and BD are 5 m long. The cross-sectional area of all members is constant. The support at A is the pin support and the support at B is the roller support. P = 50 kN Ан, B Av Ву
QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the EA is constant for a...

QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the EA is constant for all the members. Use a flexibility method to determine the forces in each member and reactions at the supports. 80 kN 5 m 5 m 5 m 5 m Figure 3 130 marks) Total Marks [100 QUESTION 3 The truss shown in the Figure 3 is having hinged supports at A and B, assuming that the...
In the truss shown in the figure: 1. Determine the support reactions at supports A and...

In the truss shown in the figure: 1. Determine the support reactions at supports A and F. (10 points) 2. Determine the force in members BC, IC, and IH of the truss using method of joints. Explain and justify if the members are in tension or compression. (20 points) 3. Draw FBD for each step of 1 and 2. (10 points) 60KN 40 kN -2 m -2 m -2 m E D 1.5 m F с O -30 kN H...

statistics, Truss structure

for the following truss structure, determine all member forces and state whether the members are in compression or tension. there are pin and roller supports at H and A respectively
