Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question

Question

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

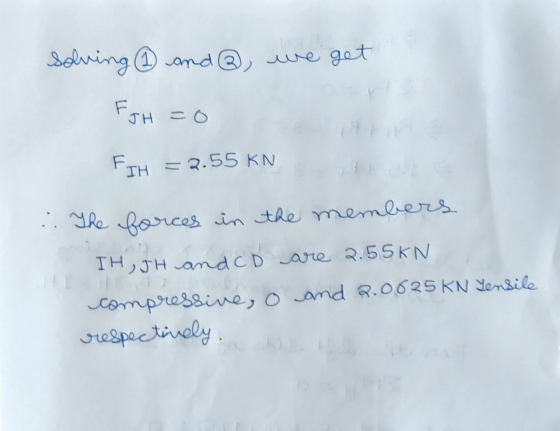

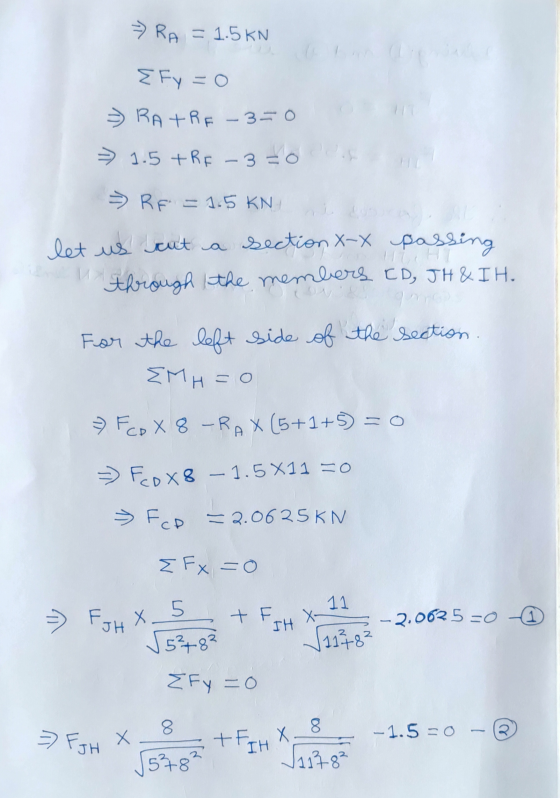

Solving ② and , we get JH =0 F ΤΗ = 2.55 KN .. The forces in the members IH, JH and Co are 2.55KN compressive, O and 2.0625 K Force developed in member IH is 2.55 KN Compressive, memberJ is 0 and member CD is 2.0625 KN Tensile.

Add a comment

Answer 2

Similar Homework Help Questions

Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

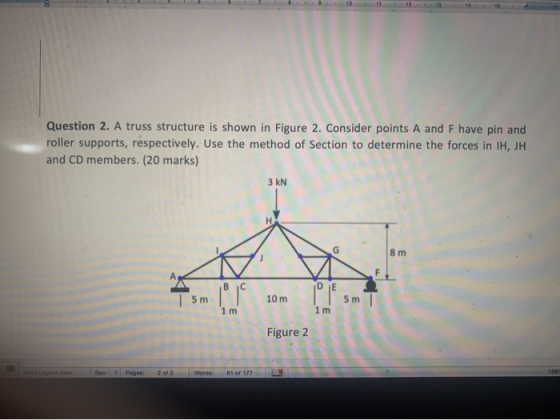

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) 3 kN 8 m BC IDE 5 m 10 m 5 ml 1 m 1 m Figure 2
Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

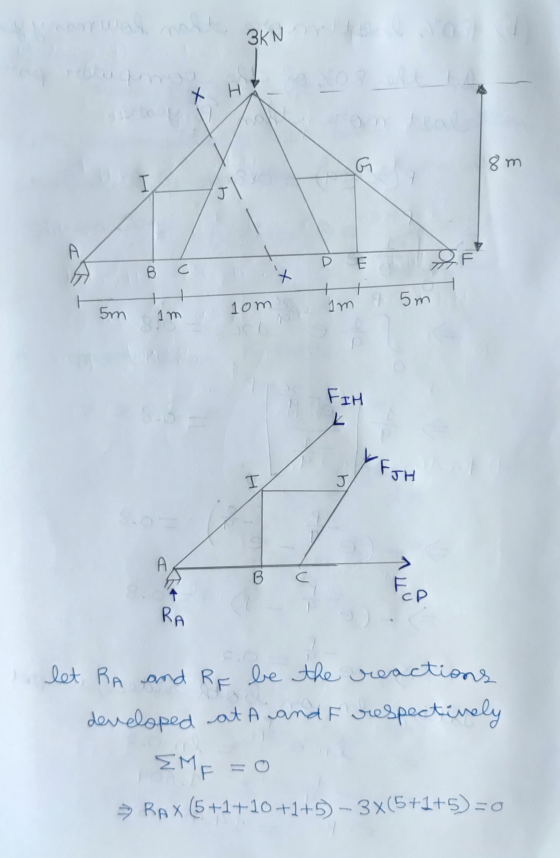

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) 3 kN G 8 m A B С | 5 m 10 m DE 5m 1 m 1 m Figure 2
Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. (20 marks) I 3 KN 8 m B | 5 m por 10 m DE 5 m 1 m Pole 1 m Figure 2

Question 2. A truss structure is shown in Figure 2. Consider points A and F have...

Question 2. A truss structure is shown in Figure 2. Consider points A and F have pin and roller supports, respectively. Use the method of Section to determine the forces in IH, JH and CD members. 3 KN H G 8 m J A F B C DE | 5 m ° 10 m POLE 5 m 1 m 1 m
