The copper shaft is subjected to the axial loads shown in (Figure 1). Figure < 1...

Question

Question

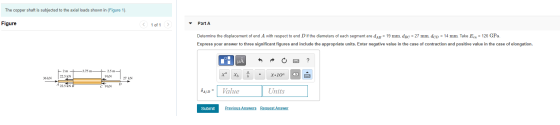

The copper shaft is subjected to the axial loads shown in (Figure 1). Figure < 1 of 1 Part A Determine the displacement of en

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

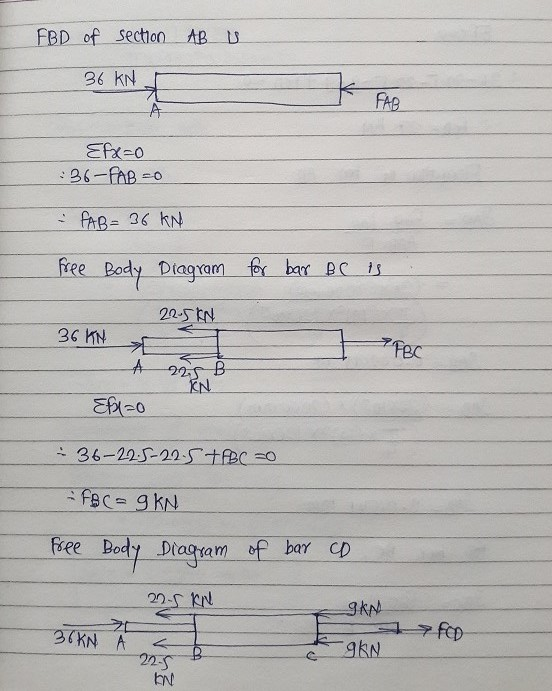

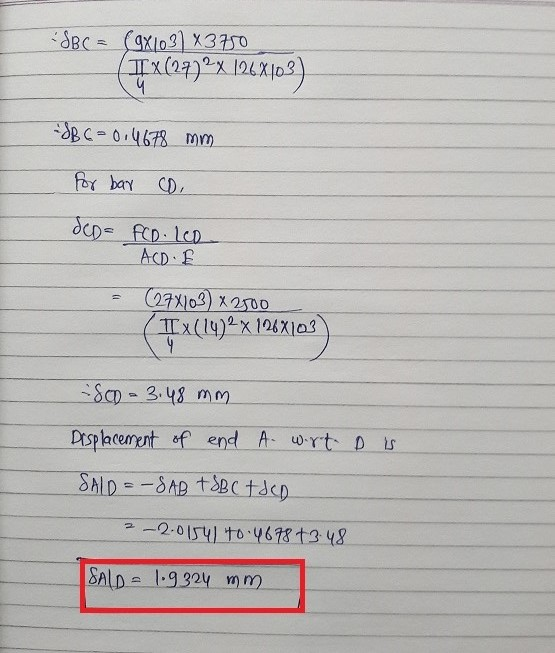

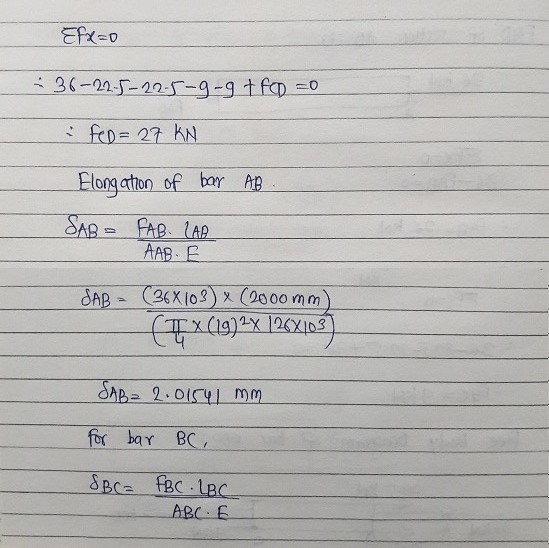

Answer 1

Answer #1

Feel free to ask any question but remember to rate the answer.

Add a comment

Answer 2

Similar Homework Help Questions

14-2. The copper shaft is subjected to the axial loads shown. Determine the displacement of end...

14-2. The copper shaft is subjected to the axial loads shown. Determine the displacement of end A with respect to end D if the diameters of each segment are dal = 0.75 in., dec=1 in., and dcp=0.5 in. Take Ecu = 18(109) ksi. -80 in.-- 5 kip 150 in.- +-100 in.--- 8 kip 2 kip 6 kip D 5 kip B C 2 kip Prob. 4-2
Part A Determine the displacement of end A with respect to and D if the diameters...

Part A Determine the displacement of end A with respect to and D if the diameters of each segment are dam = 19 mm, dec = 26 mm, dcp = 14 mm. Take Ec= 126 GPa. the case contraction and positive Express your answer to three significant figures and include the appropriate units. Enter negative value value in the case of elongation. ? Value Units 225 The copper shaft is subjected to the axial loads shown in (Figure 1). Figure...
Question # 3 A shaft is subjected to the shown axial loads. The Modulus of Elasticity...

Question # 3 A shaft is subjected to the shown axial loads. The Modulus of Elasticity is 18 x 10 psi. The diameters of rod sections are: das 0.75in,. dac-1 in., and de- 0.5 in. Determine the displacement of end A with respect to end D 80in.. ㅡ 150 in.. 100in. 5 kip 2 kip 6 kip A 5 kipB С 2kip l,

Problem 4.3 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the...

Problem 4.3 The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-sectional areas of sections AB, BC and CD are A AB = 0.10 in?. ABC = 0.14 in?, and Acp = 0.06 in?, respectively. The modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. (Figure 1) Figure 1 of 1 Aluminum El = 10(10) ksi Copper E = 18(10)...
A bar ABCD with varying cross section and subjected to axial loads is shown schematically in...

A bar ABCD with varying cross section and subjected to axial loads is shown schematically in Figure Q3. Take modulus of elasticity of bar as 202 GPa. The length of each section L1 = 111 mm; L2 = 205 mm; and L3 = 451 mm. The cross sectional dimensions are as follows: Section 1 is square with side 49 mm, Section 2 is circular with diameter 79 mm and Section 3 is circular with diameter 32 mm. The forces are...
The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-se...

The composite shaft, consisting of aluminum, copper, and steel sections, is subjected to the loading shown. The cross-sectional areas of sections AB, BC , and CD are AAB = 0.08 in2 , ABC = 0.15 in2 , and ACD = 0.05 in2 , respectively. The modulus of elasticity for each section are shown in the figure. Neglect the size of the collars at B and C. (Figure 1) Part A Determine the normal stress in section AB. Express your answer...

A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending,...

A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute tmax (Tresca) and om (von...
Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a...

Problem 2: A circular shaft transmits power as shown with pulley loads. The shaft carries a torque, bending, shear and axial loads. Draw LVM diagram to find Mmax and Vmax. Show all loads (moments and forces) on the circular x-section of the shaft below. Use double arrows for moments. Compute shear and normal stresses and show them on the same section. Create stress elements for points A and B of the section. Combine the stresses and compute Tmax (Tresca) and...
A circular cross-section shaft AB is subjected to loads as shown in the figure (neglecting bearing friction). The shaft is made of a material with [σ] = 500 MPa. Draw the internal force diagrams in shaft AB. Determine the diameters of the shaft sections

A circular cross-section shaft AB is subjected to loads as shown in the figure (neglecting bearing friction). The shaft is made of a material with [σ] = 500 MPa.Draw the internal force diagrams in shaft AB.Determine the diameters of the shaft sections according to the strength condition.

1. Refer to Problem 4-1 a. Determine the axial stress in the shaft. b. How much does the shaft shorten due to the t...

1. Refer to Problem 4-1 a. Determine the axial stress in the shaft. b. How much does the shaft shorten due to the thrust from the propeller? c. If v 0.3, how much lateral strain would you expect? d. How much change would you expect in the diameter of the shaft? 4-1. The ship is pushed through the water using an A-36 steel propeller shaft that is 8 m long, measured from the propeller to the thrust bearing D at...
