Homework Answers
Add Answer to:

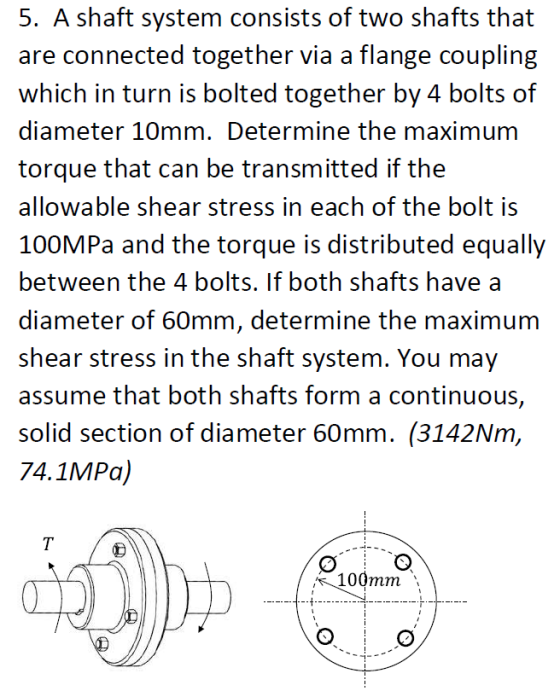

5. A shaft system consists of two shafts that are connected together via a flange coupling...

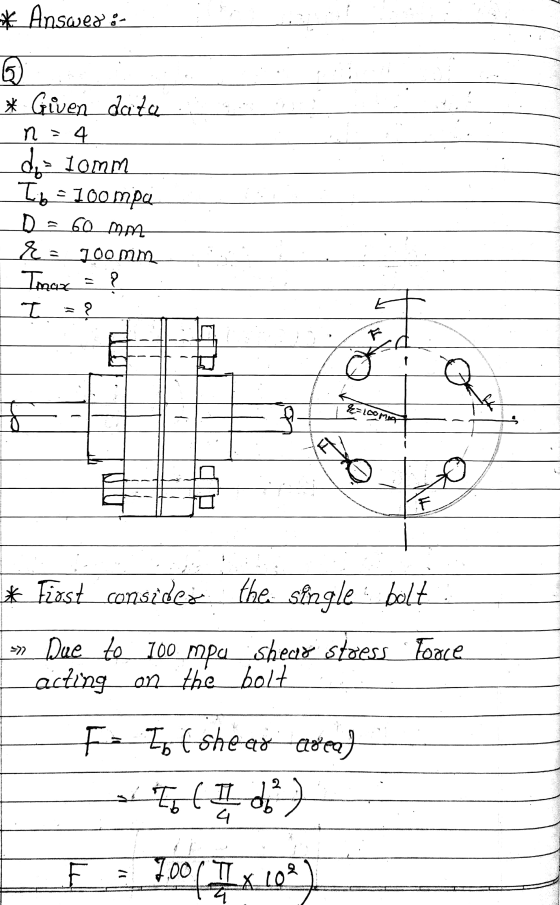

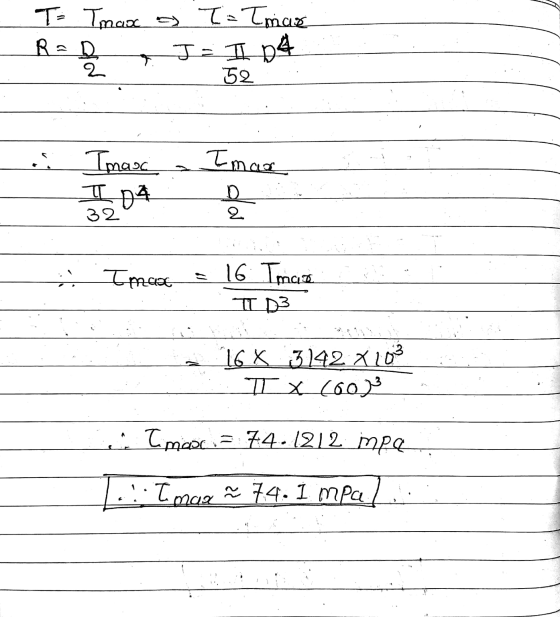

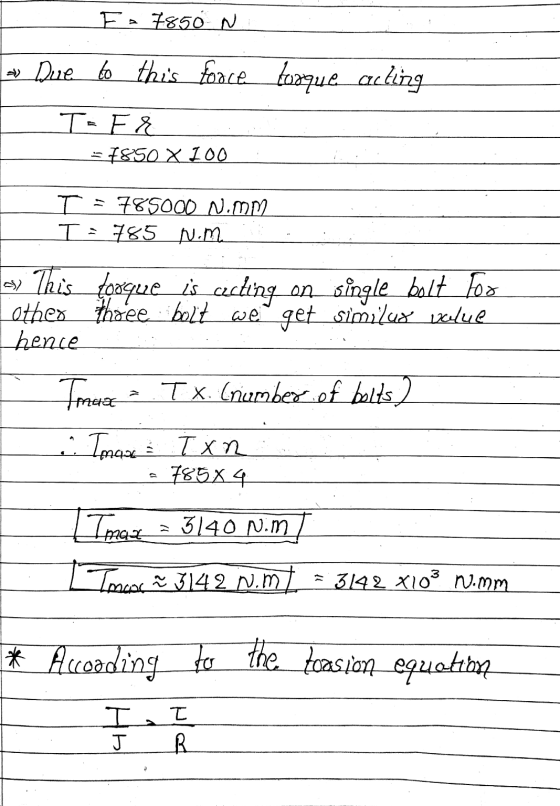

Two steel shafts, AB and CD, ara bolted together at the flange. Because the bolts are...
Two steel shafts, AB and CD, ara bolted together at
the flange. Because the bolts are improperly sized, one shaft can
rotate 1.25° before the shafts begin to rotate together. Find tha
maximum shear stress for AB and CD when a torque of 510 kip*ft is
applied to flange B
1.5 in. 1.25 in.
This system consists of two of the same same flange couplers that are full penetration welded...
This system consists of two of the same same flange couplers that are full penetration welded to the drive and driven shafts on the weld faces shown in Fig 1. The two flange couplers are bolted with 2" diameter SAE grade 8 bolts. The coupler design is required to transmit a torque of 500,000 lbf-ft and is to be made of a High Strength Low Alloy (HSLA) steel. The application is for a drill-bore head drive shaft in an off-shore...
I will rate you 2. A compound shaft consists of two solid shafts that re connected...
I will rate you
2. A compound shaft consists of two solid shafts that re connected at flange B and se attached to rigid walls at A and C. Shaft (1) is a 3.00-in-diameter solid aluminum [G 4000 ksi] shaft that is 60 in. long. Shaft (2) is a 2.00-in-diameter solid bronze [G- 6500 ksi] shaft that is 40 in. long. If a concentrated torque of 32 kip-in is applied at flange B, determine: (a) The maximum shear stress magnitudes...
In a rigid coupling with 5 bolts, a 4" shaft is used and the diamter of...
In a rigid coupling with 5 bolts, a 4" shaft is used and the diamter of the bolts pitch circle on the flange is 12". if the tangential force at the shafts outside diameter was 5000 pounds, the force on each bolt is
P6.18 The gear train system shown in Figure P6.18/19 includes shafts (1) and (2), which are...
P6.18 The gear train system shown in Figure P6.18/19 includes shafts (1) and (2), which are solid 15 mm diameter steel shafts. The allowable shear stress of each shaft is 85 MPa. The diameter of gear B is Ds 200 mm, and the diameter of gear C is Dc 150 mm. The bearings shown allow the shafts to rotate freely. Determine the maximum torque TD that can be applied to the system without exceeding the allowable shear stress in either...
A shaft is made of a steel alloy having an allowable shear stress of ?(allow) =...
A shaft is made of a steel alloy having an allowable shear
stress of ?(allow) = 12 ?si. If the diameter of the shaft is 1.5
in.,
(a) determine the maximum torque T that can be transmitted.
(b) What would be the maximum torque T’ if a 1-in.-diameter hole
is bored through the shaft?
(c) Sketch the shear-stress distribution along a radial line in
each case.
2. A shaft is made of a steel alloy having an allowable shear stress...
We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one fla...
We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one flange with respect to the other betore the flanges begin to rotate as a single unlt. Knowing that G 77.2 GPa, determine the maximum shearing stress in each shaft when a torque T of magnitude 600 N-m is applled to the flange Indicated The torque T...
A flanged bolt coupling consists of ten steel 20-mm-diameter spaced evenly around a bolt circle 300mm...
A flanged bolt coupling consists of ten steel 20-mm-diameter spaced evenly around a bolt circle 300mm in diameter. Determine the torque capacity of the coupling if the allowable shearing stress in the bolts is 40 MPa. Express your answer in KN-m and use two decimal places.
Strength of materials I need a solution as soon as possible please For the system shown...
Strength of materials
I need a solution as soon as possible please
For the system shown in Figure (1), the bolt in C is subjected to a single shear and all other bolts are double shear. The diameter of bolt at C is 15 mm, diameter of bolt at D is 10mm and diameter of bolt A is 20mm. The allowable shear stress of bolt C is 200 MPa, allowable shear stress of bolt D is 150 MPa and allowable...
(Question 3.56 from Mechanics of Materials 6th Eddition by Beer): Two solid steel shafts are...
Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5-degree rotation of one flange with respect to the other before the flanges begin to rotate as a single unit. Knowing that G=11.2x10^6 psi, determine the maximum shearing stress in each shaft when the torque of T of magnitude 420kip.ft is applied to the flange indicated. Determine the torque T is applied to flange C.
Two steel shafts, AB and CD, ara bolted together at
the flange. Because the bolts are improperly sized, one shaft can
rotate 1.25° before the shafts begin to rotate together. Find tha
maximum shear stress for AB and CD when a torque of 510 kip*ft is
applied to flange B
1.5 in. 1.25 in.
This system consists of two of the same same flange couplers that are full penetration welded to the drive and driven shafts on the weld faces shown in Fig 1. The two flange couplers are bolted with 2" diameter SAE grade 8 bolts. The coupler design is required to transmit a torque of 500,000 lbf-ft and is to be made of a High Strength Low Alloy (HSLA) steel. The application is for a drill-bore head drive shaft in an off-shore...
I will rate you
2. A compound shaft consists of two solid shafts that re connected at flange B and se attached to rigid walls at A and C. Shaft (1) is a 3.00-in-diameter solid aluminum [G 4000 ksi] shaft that is 60 in. long. Shaft (2) is a 2.00-in-diameter solid bronze [G- 6500 ksi] shaft that is 40 in. long. If a concentrated torque of 32 kip-in is applied at flange B, determine: (a) The maximum shear stress magnitudes...
P6.18 The gear train system shown in Figure P6.18/19 includes shafts (1) and (2), which are solid 15 mm diameter steel shafts. The allowable shear stress of each shaft is 85 MPa. The diameter of gear B is Ds 200 mm, and the diameter of gear C is Dc 150 mm. The bearings shown allow the shafts to rotate freely. Determine the maximum torque TD that can be applied to the system without exceeding the allowable shear stress in either...
A shaft is made of a steel alloy having an allowable shear
stress of ?(allow) = 12 ?si. If the diameter of the shaft is 1.5
in.,
(a) determine the maximum torque T that can be transmitted.
(b) What would be the maximum torque T’ if a 1-in.-diameter hole
is bored through the shaft?
(c) Sketch the shear-stress distribution along a radial line in
each case.
2. A shaft is made of a steel alloy having an allowable shear stress...
We were unable to transcribe this imageTwo solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5 rotation of one flange with respect to the other betore the flanges begin to rotate as a single unlt. Knowing that G 77.2 GPa, determine the maximum shearing stress in each shaft when a torque T of magnitude 600 N-m is applled to the flange Indicated The torque T...
Strength of materials
I need a solution as soon as possible please
For the system shown in Figure (1), the bolt in C is subjected to a single shear and all other bolts are double shear. The diameter of bolt at C is 15 mm, diameter of bolt at D is 10mm and diameter of bolt A is 20mm. The allowable shear stress of bolt C is 200 MPa, allowable shear stress of bolt D is 150 MPa and allowable...
Two solid steel shafts are fitted with flanges that are then connected by bolts as shown. The bolts are slightly undersized and permit a 1.5-degree rotation of one flange with respect to the other before the flanges begin to rotate as a single unit. Knowing that G=11.2x10^6 psi, determine the maximum shearing stress in each shaft when the torque of T of magnitude 420kip.ft is applied to the flange indicated. Determine the torque T is applied to flange C.
