In a rigid coupling with 5 bolts, a 4" shaft is used and the diamter of...

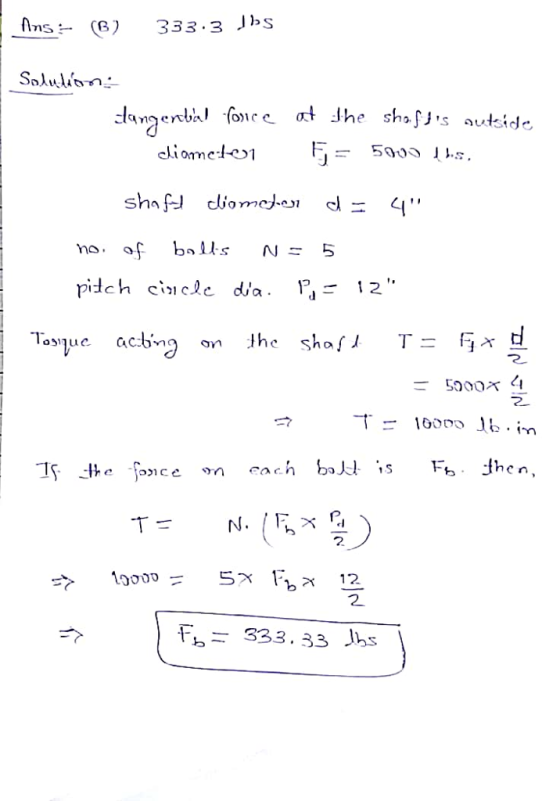

In a rigid coupling with 5 bolts, a 4" shaft is used and the diamter of the bolts pitch circle on the flange is 12". if the tangential force at the shafts outside diameter was 5000 pounds, the force on each bolt is
Homework Answers
Add Answer to:
In a rigid coupling with 5 bolts, a 4" shaft is used and the
diamter of...
1. A rigid flange coupling has a bore diameter of 50 mm. Four machined bolts on...

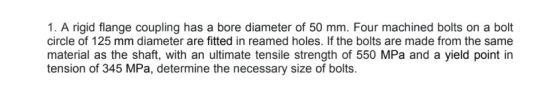

1. A rigid flange coupling has a bore diameter of 50 mm. Four machined bolts on a bolt circle of 125 mm diameter are fitted in reamed holes. If the bolts are made from the same material as the shaft, with an ultimate tensile strength of 550 MPa and a yield point in tension of 345 MPa, determine the necessary size of bolts.
5. A shaft system consists of two shafts that are connected together via a flange coupling...
5. A shaft system consists of two shafts that are connected together via a flange coupling which in turn is bolted together by 4 bolts of diameter 10mm. Determine the maximum torque that can be transmitted if the allowable shear stress in each of the bolt is 100MPa and the torque is distributed equally between the 4 bolts. If both shafts have a diameter of 60mm, determine the maximum shear stress in the shaft system. You may assume that both...
(A) a flanged coupling having six bolts placed at pitch circle diameter of 180 mm connects...
(A) a flanged coupling having six bolts placed at pitch circle diameter of 180 mm connects two lengths of steel shafting of same diameter the shaft is required to transmit 80 kw at 240 riv/min assuming allowable intensities of shearing stresses in the shaft an bolts are 75 mn/m2 and 55 mn/m2 respectively and the maximum torque is 1.4 times the mean torque find the diameter of the shaft the diameter of bolts
The diameter of the bolt circle of a flanged coupling for a shaft 12.5cm in diameter...
The diameter of the bolt circle of a flanged coupling for a shaft 12.5cm in diameter is 37.5 cm. There are six bolts 2.5 cm diameter. What power can be transmitted at 150 rev/min if the shearing stress in the bolts is not to exceed 60 MN/m2? [15 Marks ot the ende and nasses thre
1. A motor delivers 120 hp at 250 rpm to a radial pump through a flanged...
1. A motor delivers 120 hp at 250 rpm to a radial pump through a flanged coupling mounted on a 0.375-inch diameter steel shaft. The pump is mounted on a 0.3125-inch diameter steel shaft and the two shafts are connected by flanged couplings. The flanges are connected using 2.000-inch long, 0.25-inch diameter, SAE Grade 4 steel bolts, equally spaced along a 3.5-inch diameter bolt circle. The coupling flanges are 4 inches in diameter and 0.75 inch thick. The bolts are...
The coupling rod is subjected to a force of 5 kip. ԵԵԵԵԵ When no load is...
The coupling rod is subjected to a force of 5 kip. ԵԵԵԵԵ When no load is applied the spring is unstretched and d= 10 in. The material is A-36 steel and each bolt has a diameter of 0.25 in. The plates at A, B, and C are rigid and the spring has a stiffness of k=16.1 kip/in. Part A Determine the distance d between C and accounting for the compression of the spring and the deformation of the bolts. Express...
4-610. The bracket is held to the wall using three A-36 steel bolts at B, C,...
4-610. The bracket is held to the wall using three A-36 steel bolts at B, C, and D. Each bolt has a diameter of 0.5 in. and an unstretched length of 2 in. If a force of 800 Ib is placed on the bracket as shown, determine how far, s, the top bracket at bolt D moves away from the wall. For the calculation, assume that the bolts carry no shear; rather, the vertical force of 800 lb is supported...
Figure 1 shows the layout of countershaft used to transmit power to a blower through a...
Figure 1 shows the layout of countershaft used to transmit power to a blower through a pulley drive (4-5). Pulley (driving sheave) 4 has a diameter of 125-mm and pulley (driven sheave) 5 has a diameter of 75 mm. Pulley 5 is mounted vertically below pulley 4 (as shown in the figure). Belt tension on the loose side is 20% of the tension on the tight side. A power of 7.5 kW is transmitted via the gear set (2-3) from...
Chapter 4, Reserve Problem 018 Three bolts are used in the connection shown in the figure....
Chapter 4, Reserve Problem 018 Three bolts are used in the connection shown in the figure. The thickness of plate (1) is 20 mm. The ultimate shear strength of the bolts is 385 MPa, and the ultimate bearing strength of plate (1) is 385 MPa. Determine the minimum bolt diameter required to support an applied load of P = 180 KN if a minimum factor of safety of 2.5 is required with respect to both bolt shear and plate bearing...
please solve with details Question#1140Marksl The shaft shown in the figure is rotating at 650 rpm and it receives 5592.75 W through a flexible coupling at its right end. The power is delivered t...
please solve with details
Question#1140Marksl The shaft shown in the figure is rotating at 650 rpm and it receives 5592.75 W through a flexible coupling at its right end. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20° and a helix angle of 15o. The pitch diameter for the gear is 105.1814 mm (4.141 in). A spacer is used to position the gear relative to bearing C. The...
1. A rigid flange coupling has a bore diameter of 50 mm. Four machined bolts on a bolt circle of 125 mm diameter are fitted in reamed holes. If the bolts are made from the same material as the shaft, with an ultimate tensile strength of 550 MPa and a yield point in tension of 345 MPa, determine the necessary size of bolts.
5. A shaft system consists of two shafts that are connected together via a flange coupling which in turn is bolted together by 4 bolts of diameter 10mm. Determine the maximum torque that can be transmitted if the allowable shear stress in each of the bolt is 100MPa and the torque is distributed equally between the 4 bolts. If both shafts have a diameter of 60mm, determine the maximum shear stress in the shaft system. You may assume that both...
The diameter of the bolt circle of a flanged coupling for a shaft 12.5cm in diameter is 37.5 cm. There are six bolts 2.5 cm diameter. What power can be transmitted at 150 rev/min if the shearing stress in the bolts is not to exceed 60 MN/m2? [15 Marks ot the ende and nasses thre
1. A motor delivers 120 hp at 250 rpm to a radial pump through a flanged coupling mounted on a 0.375-inch diameter steel shaft. The pump is mounted on a 0.3125-inch diameter steel shaft and the two shafts are connected by flanged couplings. The flanges are connected using 2.000-inch long, 0.25-inch diameter, SAE Grade 4 steel bolts, equally spaced along a 3.5-inch diameter bolt circle. The coupling flanges are 4 inches in diameter and 0.75 inch thick. The bolts are...
The coupling rod is subjected to a force of 5 kip. ԵԵԵԵԵ When no load is applied the spring is unstretched and d= 10 in. The material is A-36 steel and each bolt has a diameter of 0.25 in. The plates at A, B, and C are rigid and the spring has a stiffness of k=16.1 kip/in. Part A Determine the distance d between C and accounting for the compression of the spring and the deformation of the bolts. Express...
4-610. The bracket is held to the wall using three A-36 steel bolts at B, C, and D. Each bolt has a diameter of 0.5 in. and an unstretched length of 2 in. If a force of 800 Ib is placed on the bracket as shown, determine how far, s, the top bracket at bolt D moves away from the wall. For the calculation, assume that the bolts carry no shear; rather, the vertical force of 800 lb is supported...
Figure 1 shows the layout of countershaft used to transmit power to a blower through a pulley drive (4-5). Pulley (driving sheave) 4 has a diameter of 125-mm and pulley (driven sheave) 5 has a diameter of 75 mm. Pulley 5 is mounted vertically below pulley 4 (as shown in the figure). Belt tension on the loose side is 20% of the tension on the tight side. A power of 7.5 kW is transmitted via the gear set (2-3) from...
Chapter 4, Reserve Problem 018 Three bolts are used in the connection shown in the figure. The thickness of plate (1) is 20 mm. The ultimate shear strength of the bolts is 385 MPa, and the ultimate bearing strength of plate (1) is 385 MPa. Determine the minimum bolt diameter required to support an applied load of P = 180 KN if a minimum factor of safety of 2.5 is required with respect to both bolt shear and plate bearing...
please solve with details
Question#1140Marksl The shaft shown in the figure is rotating at 650 rpm and it receives 5592.75 W through a flexible coupling at its right end. The power is delivered to an adjacent shaft through a single helical gear B having a normal pressure angle of 20° and a helix angle of 15o. The pitch diameter for the gear is 105.1814 mm (4.141 in). A spacer is used to position the gear relative to bearing C. The...
