Homework Answers

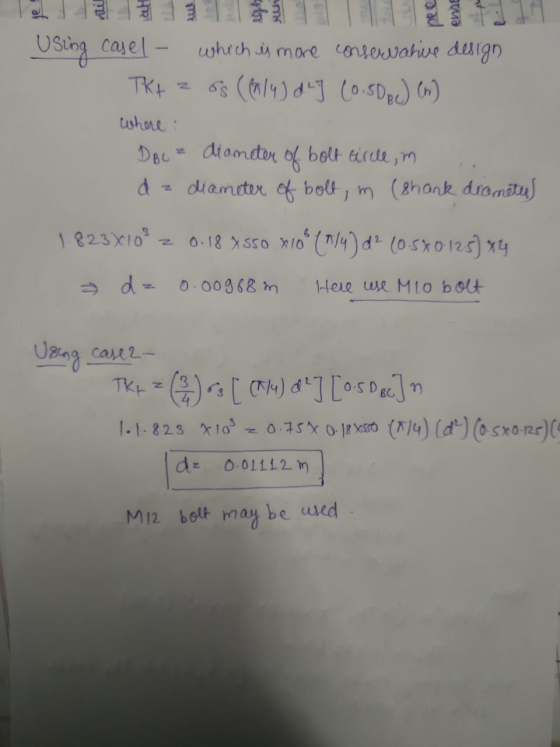

![Using casel - which is more conservative design Tkt z 6s (1/4) d ] (0.5D pc) Cor) where : DBC = diameter of bolt circle, m de](http://img.homeworklib.com/questions/c7f300b0-6bf7-11ec-bc14-85eaec279865.png?x-oss-process=image/resize,w_560)
Add Answer to:

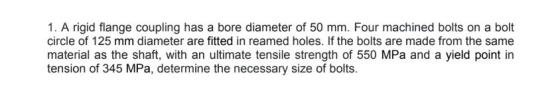

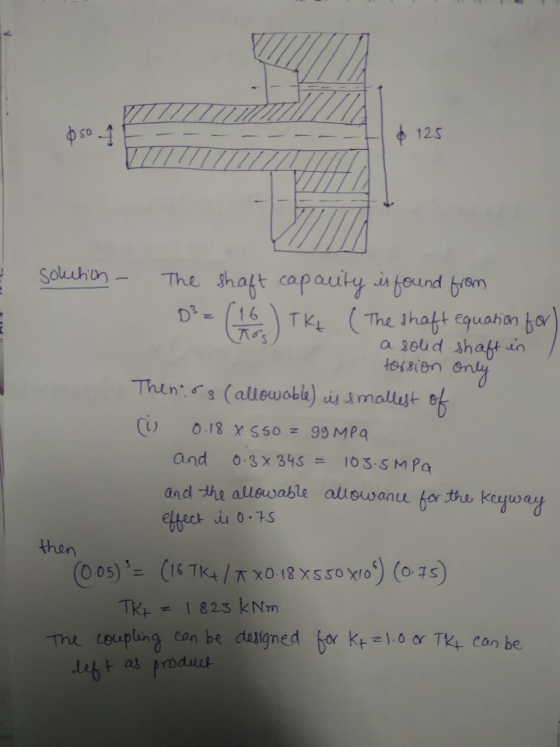

1. A rigid flange coupling has a bore diameter of 50 mm. Four machined bolts on...
