Revi The spool has a weight of 30 lb and a radius of gyration ko =...
The spool has a weight of 30 lb and a radius of gyration ko = 0.65...

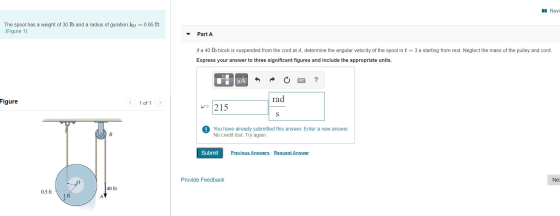

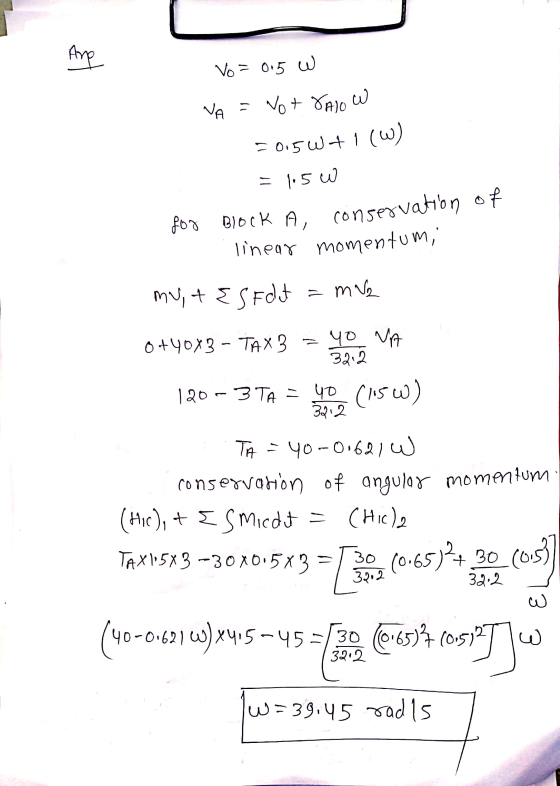

The spool has a weight of 30 lb and a radius of gyration ko = 0.65 ft (Figure 1) Part A If a 40 lb block is suspended from the cord at A, determine the angular velocity of the spool in t=3 s starting from rest. Neglect the mass of the pulley and cord. Express your answer to three significant figures and include the appropriate units. HÅ ? Figure rad 1 of 1 w= 32.8422 S B Submit Previous Answers...
