due in 30 min 8. (10 points) Picture taken from problem 19-21. The spool has a...

Question

Question

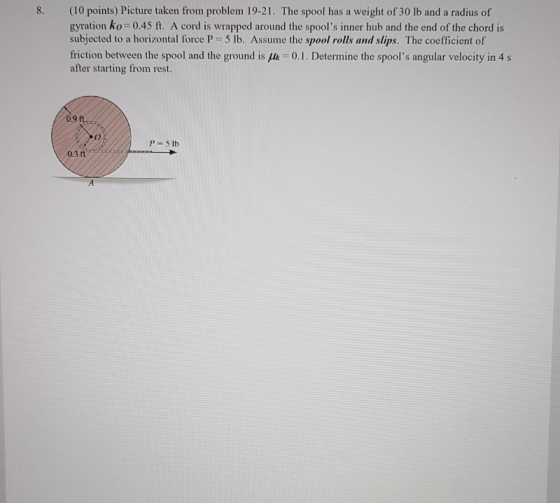

8. (10 points) Picture taken from problem 19-21. The spool has a weight of 30 lb and a radius of gyration ko=0.45 ft. A cord

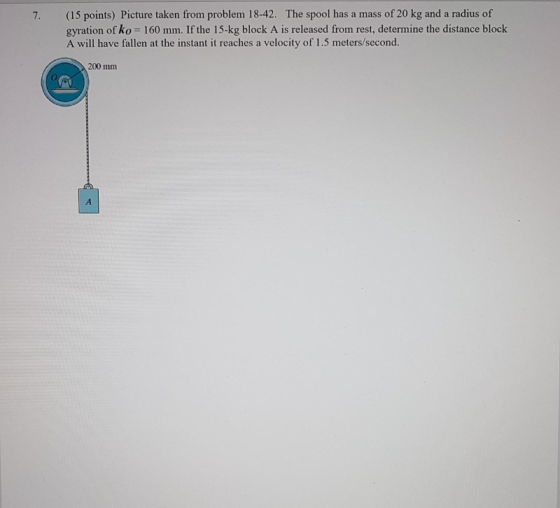

7. (15 points) Picture taken from problem 18-42. The spool has a mass of 20 kg and a radius of gyration of ko = 160 mm. If th

due in 30 min

science Advanced-Physics

Answer 1

Answer #1

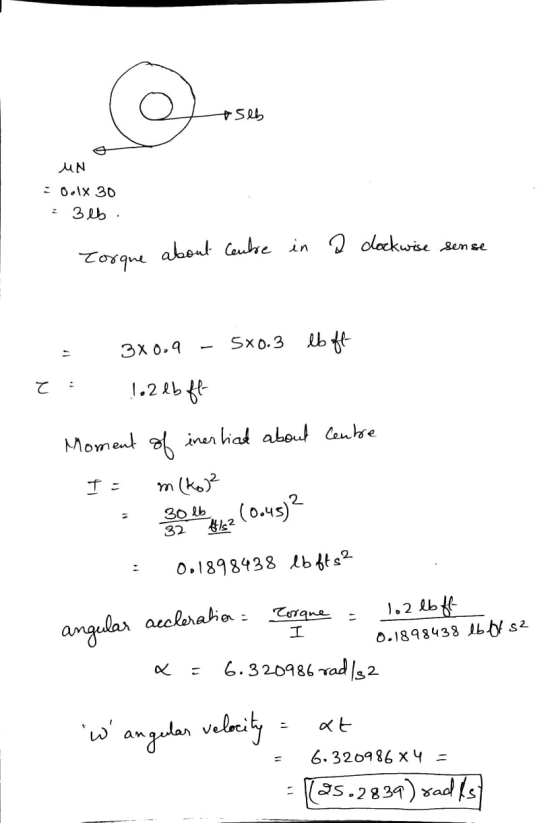

tseb UN : 0.lx 30 = 3 lb . about Centre in a dockwise sense Torque 3x 0.9 5x0.3 lb ft て ! .2 lb ft Moment of inertial about c

I am so sorry but one only question as per HomeworkLib policy guideline Please comment if you have any doubt. Thanks
