5. (10 points) Picture taken from problem 16-108. The rod is in the figure below is...

Question

Question

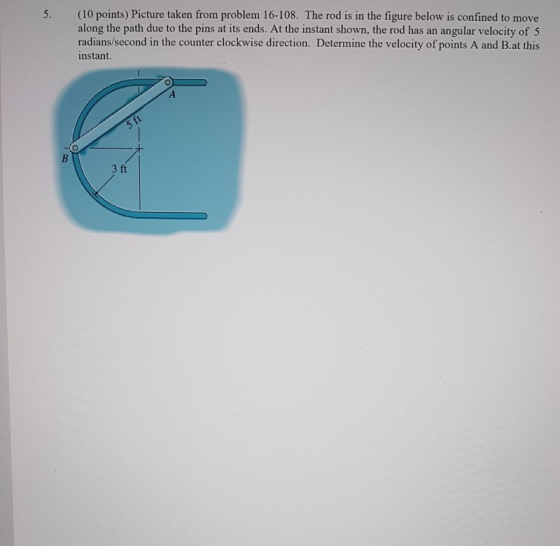

5. (10 points) Picture taken from problem 16-108. The rod is in the figure below is confined to move along the path due to th

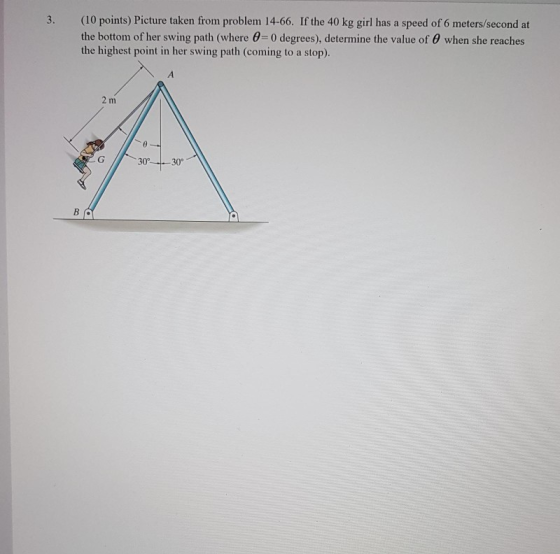

3. (10 points) Picture taken from problem 14-66. If the 40 kg girl has a speed of 6 meters/second at the bottom of her swing

science physics

Answer 1

Answer #1

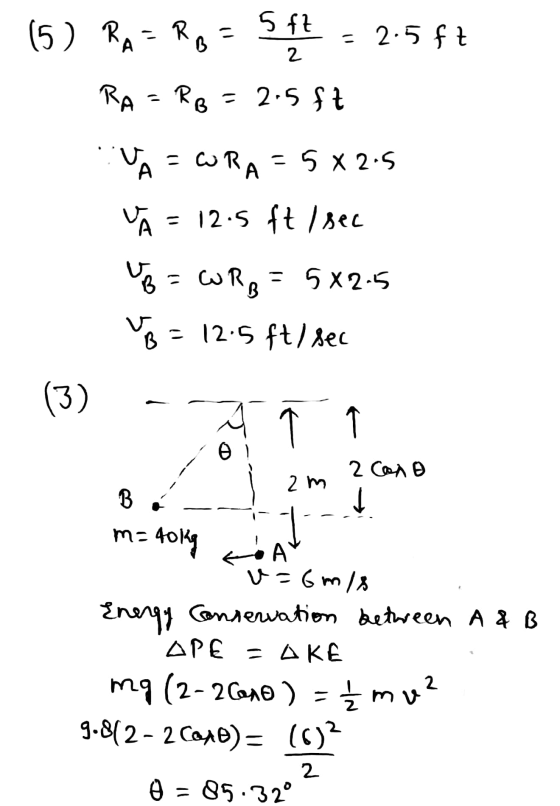

(5) RA= Rp = 542 = 2.567 RA= RB = 2.5 ft A u -WRA = 5 x 2.5 TA = 12.5 ft/sec UB 582.5 B B = 12.5 ft/sec (3) k 지 2 Cono 2 m B

Answer 2
