Add Answer to:

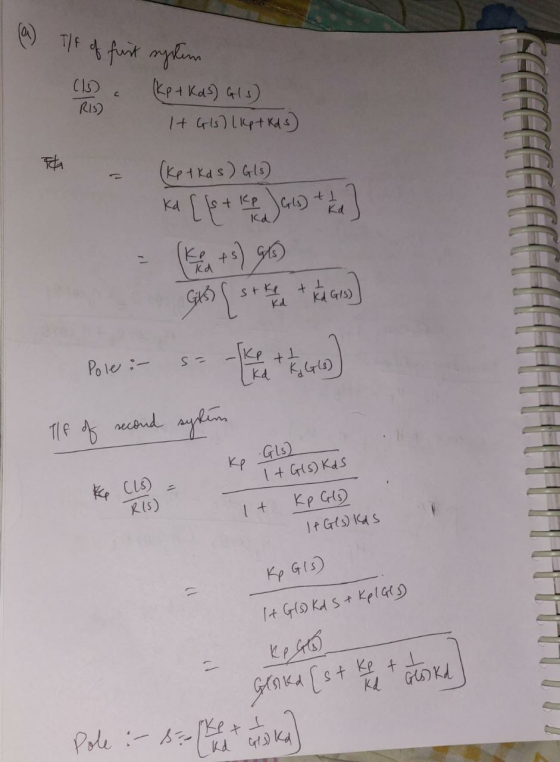

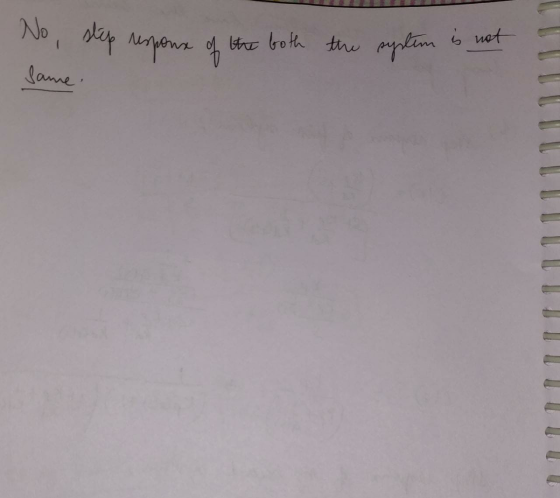

5. In lecture, we have discussed a traditional PD control shown below. + R(s) K, +KAS...
Consider a unity feedback control architecture where P(s) = 1/s^2 and C(s) = K * ((s + z)/(s + p)...
Consider a unity feedback control architecture where P(s) =
1/s^2 and C(s) = K * ((s + z)/(s + p)) . It is desired to design
the controller to place the dominant closed-loop poles at sd = −2 ±
2j. Fix the pole of the compensator at −20 rad/sec and use root
locus techniques to find values of z and K to place the closed–loop
poles at sd .
Problem 4 (placing a zero) Consider a unity feedback control architecture...
<Week 9: Quiz PD Controller Design1 For the closed-loop system shown, and given: C(s) 0052 2+0.99s+11.00 Design a PD Controller ie. where C(s)- Kp + Kas to satisfy the following specification...
<Week 9: Quiz PD Controller Design1 For the closed-loop system shown, and given: C(s) 0052 2+0.99s+11.00 Design a PD Controller ie. where C(s)- Kp + Kas to satisfy the following specifications: t 0.03s t",1% 0.20 s Part A-P Gain Find the P gain (G.e. Kp) Submit Part B·D Gain ▼ A L Find the P gain (i.e. Kp ) vec K. Submit Part B-D Gain ▼ Find the D gain (i.e. Ka) vec Submit Provide Feedback 2
2nd. In the control system below; w(s) + R(s) E(s) Y(s) Ko+Kp.s s(s+1) Sistem a. The...
2nd. In the control system below; w(s) + R(s) E(s) Y(s) Ko+Kp.s s(s+1) Sistem a. The damping factor is & = 0.5 and the complex conjugate poles of the closed loop system K for real part to be -2p and Ko Calculate the values that should be taken. ( 10p) b. Find the absolute value of the continuous regime error against the unit step-breaking effect. This error how to minimize. (20p) c. K to PD, When s is added; K...
(111) Given a negative unity feedback control system with K(s+α) G(s) = s(s +1)(s+B) Without canceling out any pole/zero, determine the values of α and β such that the closed- loop system will have a...
(111) Given a negative unity feedback control system with K(s+α) G(s) = s(s +1)(s+B) Without canceling out any pole/zero, determine the values of α and β such that the closed- loop system will have a pair of complex conjugate poles located at sǐ--2tj2V3. (You do not need to find the value of K.) [15 points]
(111) Given a negative unity feedback control system with K(s+α) G(s) = s(s +1)(s+B) Without canceling out any pole/zero, determine the values of α and...
Copy of R(s) G (s) อา G(s) C(s) Given the control loop above, determine the overall gain K for the Gc(s) for a given G(s) and design requirements Peak Time (Tp) 0.2 second Settling time (Ts)-0.12...
Copy of R(s) G (s) อา G(s) C(s) Given the control loop above, determine the overall gain K for the Gc(s) for a given G(s) and design requirements Peak Time (Tp) 0.2 second Settling time (Ts)-0.12 second Design a Dual PD controller to have two-distinct roots. Assume the angle for (one zero) Z1 60 degreos.
Copy of R(s) G (s) อา G(s) C(s) Given the control loop above, determine the overall gain K for the Gc(s) for a given G(s)...
Prob. 3 (20 pts): A negative feedback control system shown below has the transfer function of...
Prob. 3 (20 pts): A negative feedback control system shown below has the transfer function of a plant, G,(s) (2+2s +100) Design a PD controller G,() - K,+K S so that the natural frequency w, and the damping ratio c of the closed loop system are 20 rad/sec and 0.6respectively.
question b or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a...
question b
or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a value of Kp that will yield less than 15% overshoot for the closed-loop system. (Note: ignore the zero dynamics to calculate Kp initially). c IIsing vour K from nart h) write a MATI AR scrint that calculates the closedloon Motor Plant R(s)+ C(s) Controller 10 Kp (s+9) s2 +6s15 12 Figure 1: Unity feedback with PD control
or the...
Consider the following control system: R + Let G(s) s +23-3 and H(s) K where K is some positive c...
Consider the following control system: R + Let G(s) s +23-3 and H(s) K where K is some positive constant. The transfer function H(s) can be considered a proportional feedback controller. (a) Examine the behavior of the system for different values of K. Try the values K 2, 4, 8. In each case, plot the pole-zero map of the closed-loop system and examine the step response. Comment on the stability of the system. Find the value of K for which...
Transient Analysis for Control System Questions Q1) From transient analysis C(s)/R(s)= k/s+a, how do we find...
Transient Analysis for Control System Questions Q1) From transient analysis C(s)/R(s)= k/s+a, how do we find impulse and unit step response? Q2) Based on Q1, how do we determine transient and steady state response from impulse and unit step response on what basis? Show graph and examples please Q3) How to move close loop poles further away from imaginary axis to make time constant smaller to make transient gone?
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the d...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
Consider a unity feedback control architecture where P(s) =
1/s^2 and C(s) = K * ((s + z)/(s + p)) . It is desired to design
the controller to place the dominant closed-loop poles at sd = −2 ±
2j. Fix the pole of the compensator at −20 rad/sec and use root
locus techniques to find values of z and K to place the closed–loop
poles at sd .
Problem 4 (placing a zero) Consider a unity feedback control architecture...
<Week 9: Quiz PD Controller Design1 For the closed-loop system shown, and given: C(s) 0052 2+0.99s+11.00 Design a PD Controller ie. where C(s)- Kp + Kas to satisfy the following specifications: t 0.03s t",1% 0.20 s Part A-P Gain Find the P gain (G.e. Kp) Submit Part B·D Gain ▼ A L Find the P gain (i.e. Kp ) vec K. Submit Part B-D Gain ▼ Find the D gain (i.e. Ka) vec Submit Provide Feedback 2
2nd. In the control system below; w(s) + R(s) E(s) Y(s) Ko+Kp.s s(s+1) Sistem a. The damping factor is & = 0.5 and the complex conjugate poles of the closed loop system K for real part to be -2p and Ko Calculate the values that should be taken. ( 10p) b. Find the absolute value of the continuous regime error against the unit step-breaking effect. This error how to minimize. (20p) c. K to PD, When s is added; K...
(111) Given a negative unity feedback control system with K(s+α) G(s) = s(s +1)(s+B) Without canceling out any pole/zero, determine the values of α and β such that the closed- loop system will have a pair of complex conjugate poles located at sǐ--2tj2V3. (You do not need to find the value of K.) [15 points]
(111) Given a negative unity feedback control system with K(s+α) G(s) = s(s +1)(s+B) Without canceling out any pole/zero, determine the values of α and...
Copy of R(s) G (s) อา G(s) C(s) Given the control loop above, determine the overall gain K for the Gc(s) for a given G(s) and design requirements Peak Time (Tp) 0.2 second Settling time (Ts)-0.12 second Design a Dual PD controller to have two-distinct roots. Assume the angle for (one zero) Z1 60 degreos.
Copy of R(s) G (s) อา G(s) C(s) Given the control loop above, determine the overall gain K for the Gc(s) for a given G(s)...
Prob. 3 (20 pts): A negative feedback control system shown below has the transfer function of a plant, G,(s) (2+2s +100) Design a PD controller G,() - K,+K S so that the natural frequency w, and the damping ratio c of the closed loop system are 20 rad/sec and 0.6respectively.
question b
or the control system in Figure 1: C(s) Find the closed-loop transfer function T(s)-- R(s) a) b) Find a value of Kp that will yield less than 15% overshoot for the closed-loop system. (Note: ignore the zero dynamics to calculate Kp initially). c IIsing vour K from nart h) write a MATI AR scrint that calculates the closedloon Motor Plant R(s)+ C(s) Controller 10 Kp (s+9) s2 +6s15 12 Figure 1: Unity feedback with PD control
or the...
Consider the following control system: R + Let G(s) s +23-3 and H(s) K where K is some positive constant. The transfer function H(s) can be considered a proportional feedback controller. (a) Examine the behavior of the system for different values of K. Try the values K 2, 4, 8. In each case, plot the pole-zero map of the closed-loop system and examine the step response. Comment on the stability of the system. Find the value of K for which...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
