Identical batteries with negligible internal resistance are connected in different arrangements to the same light bulb,...

Question

Question

science physics

Answer 1

Answer #1

Bulb in C will be brightest

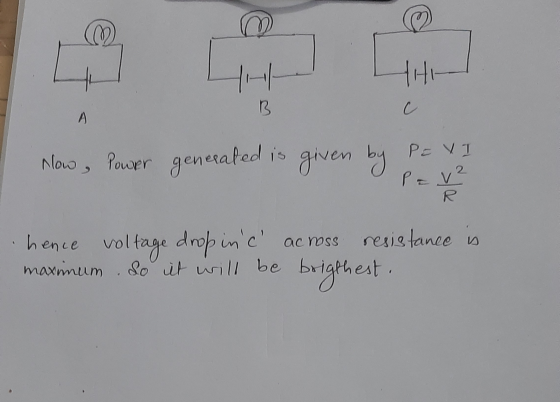

HH B c A PE V Now , Power generated is given by P = V² R across resistance is hence volt maximum do it will be So it will be

Answer 2

Similar Homework Help Questions

Batterles and Bulbs-Bulb Brightness"1 Identical batteries are connected in different arrangements to the identical light bulbs...

Batterles and Bulbs-Bulb Brightness"1 Identical batteries are connected in different arrangements to the identical light bulbs Rank from brightest to least bright these items on the basis of bulb brightness. Brightest 1 2. 3. 5 Least Bright Or, all bulbs have the same brightness. Please carefully explain your reasoning I
14. Ranking Task #161 Batteries and Bulbs-Bulb Brightness 161 Identical batteries are connected in different arrangements...

14. Ranking Task #161 Batteries and Bulbs-Bulb Brightness 161 Identical batteries are connected in different arrangements to the identical light bulbs. Rank from brightest to least bright these items on the basis of bulb brightness. .me Least Bright Brightest Or, all bulbs have the same brightness. Please carefully explain your reasoning.
Identical light bulbs each in a socket can be connected to identical batteries in three different...

Identical light bulbs each in a socket can be connected to identical batteries in three different ways (A, B, or C), as shown in the figure. The ranking (from lowest to highest) of Bulb A's voltage is Bulb A Butb A Butb A C<A B

In the figure are shown 6 different arrangements of identical resistors of resistance R. A) for...

In the figure are shown 6 different arrangements of identical resistors of resistance R. A) for each arrangement give the algebraic expression for the equivalent resistance of the diagramed arrangement and evaluate the expression for R=840ohms. B) evaluate the current through each resistor when the combination is connected to a power supply giving 1200V. C) evaluate the power dissipated in each resistor of each combination, and the total power dissipated by each full combination, when the combination is connected to...
Two different light bulbs (RD> RE) are connected as shown below. If the internal resistance of...

Two different light bulbs (RD> RE) are connected as shown below. If the internal resistance of the battery is not considered negligible (r ≠ 0), what happens to the current through the bulb D when the switch is closed? a) it decreases somewhat b) it increases significantly c) it stays the same d) it increases somewhat e) it decreases significantly S CS2 CS1 D E
3) Three batteries of Emf value E and internal resistance r are used to a light...

3) Three batteries of Emf value E and internal resistance r are used to a light bulb of resistance R. They are attached in both of the following ways: Find the current across the light bulb for each arrangement. IfRT, which arrangement provides a larger current?

the figure shows six different arrangements of identical resistors of resistance R. (a) For each arrangement,...

the figure shows six different arrangements of identical resistors of resistance R. (a) For each arrangement, give the algebraic expression for the equivalent resistance of the diagrammed arrangement, and evaluate the expression for R = 840 ?. (b) Evaluate the current through each resistor when the combination is connected to a power supply giving 1200 V. (c) Evaluate the power dissipated in each resistor of each combination,and the total power dissipated by each full combination, when the combination is connected...
Three identical light bulbs R. R, and R, are connected across a 120V power source as...

Three identical light bulbs R. R, and R, are connected across a 120V power source as shown in the figure. Which light bulb is the brightest? R 120 V Rg R
Two different light bulbs (RD> RE) are connected as shown below. If the internal resistance of...

Two different light bulbs (RD> RE) are connected as shown below. If the internal resistance of the battery is not considered negligible (r ≠ 0), how do you compare the brightness of two light bulbs in the circuit when the switch is closed? a) D is brighter than E b) E is brighter than D c) Both are equally bright S CS2 CS1 D E

Two identical batteries with fem ξ and internal resistance "r" can be connected through a resistor...

Two identical batteries with fem ξ and internal resistance "r" can be connected through a resistor "R" in series or in parallel. Which connection method provides the greatest power to R, when (a) R <r or when (b) R> r? Justify your answers analytically.
