Two identical batteries with fem ξ and internal resistance "r" can be connected through a resistor...
Two identical batteries with fem ξ and internal resistance "r" can be connected through a resistor "R" in series or in parallel. Which connection method provides the greatest power to R, when (a) R <r or when (b) R> r? Justify your answers analytically.
Homework Answers

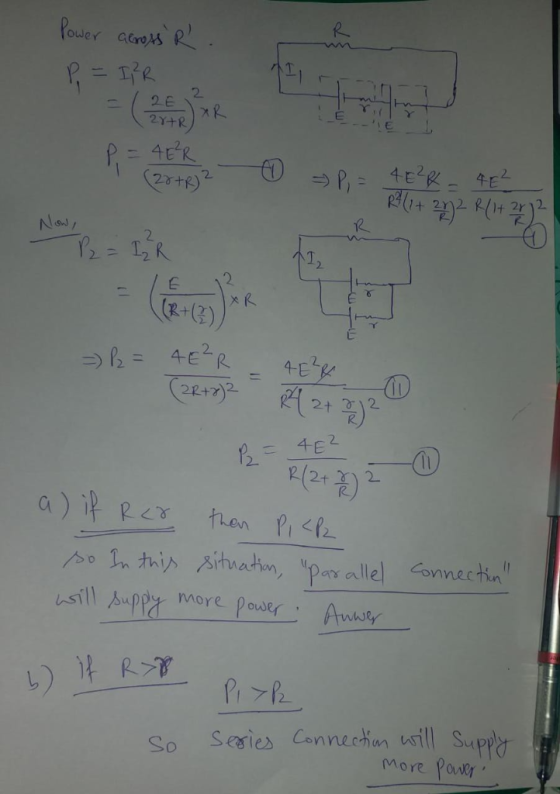

Dear student,
Find this solution.if any issue with that don't forget to write in comment section.I will rectify them as soon as possible.
If you find the solution helpful and kindly RATE THE ANSWER it would be appreciated.
Your rating is important to me.
Thanks for asking..
