Two batteries with EMFs of 6V and internal reisstances of 0.5 ohm are connected in parallel...

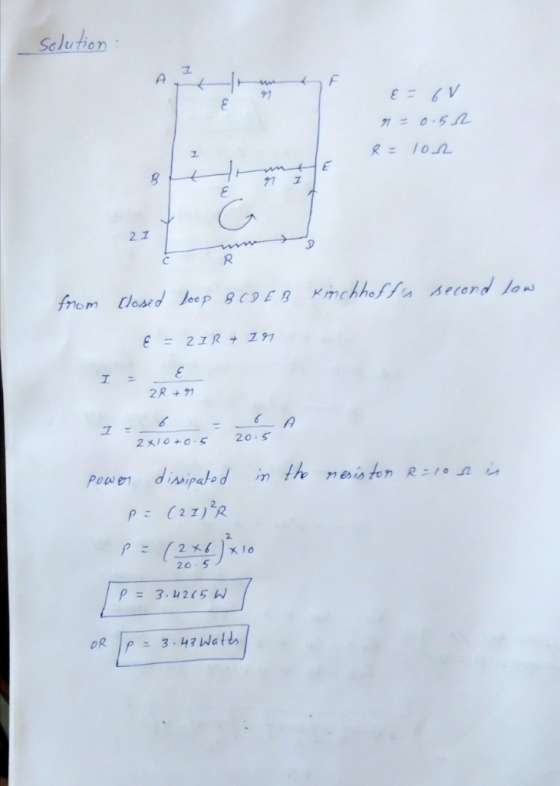

Two batteries with EMFs of 6V and internal reisstances of 0.5 ohm are connected in parallel to a 10 ohm resistor. How much power is dissipated in the resistor?
Homework Answers
