A 24-volt battery is hooked to four 25-watt light bulb in series. a. Draw a digram...

A 24-volt battery is hooked to four 25-watt light bulb in series.

a. Draw a digram of this circuit

b. Find the voltage across each light bulb

c. Find the current in each light bulb

d. Find the resistance in each light bulb

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

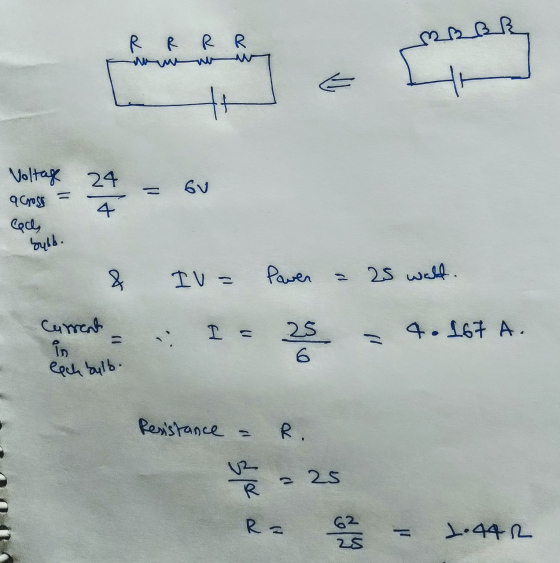

R RR R BBR E + 24 Gu Voltage 9 Cross coce 4 sylb. & IV= Power 25 walt. I = 4.167 A. Current in eech bulb. 25 6 26 ResistanceP.S : Please do give a thumbs up since we as an expert take pain and take our time out by typing answer in lucid language and putting best of our knowledge at your doorstep.
Thank you

0 0
Add a comment
