CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to...

Question

Question

engineering Mechanical-Engineering

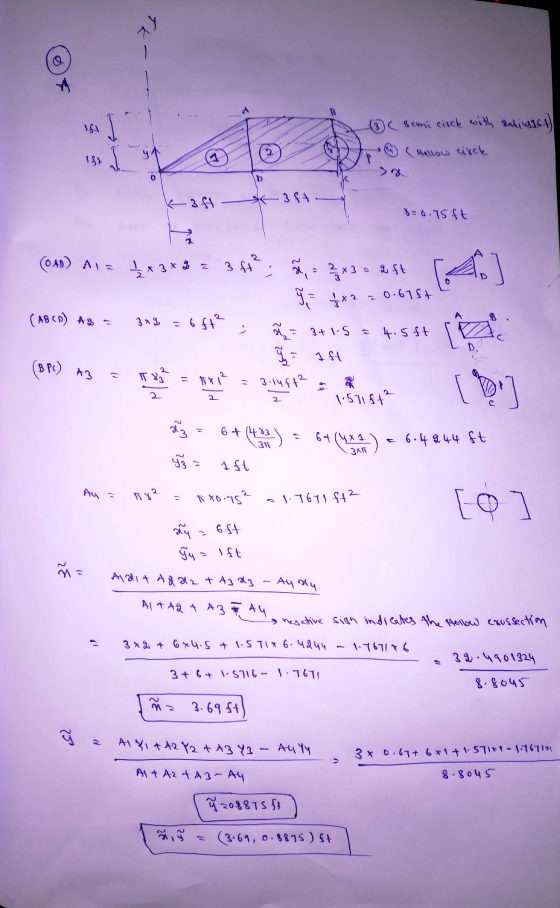

Answer 1

Answer #1

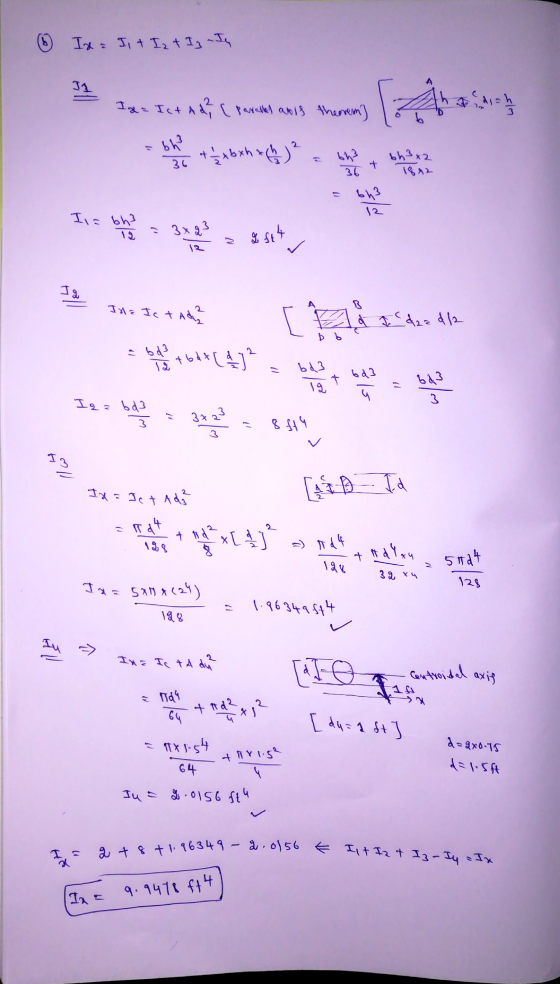

2 + 8 + 1 96349 - 2.0156 € Ist Iz & Iz- Iy Ix Id = Ist Izt Iz - Je 11 Ioga Ict Ad? ( parallel anis theorem] h 3 b bh 3 + 2 x

Answer 2

Similar Homework Help Questions

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

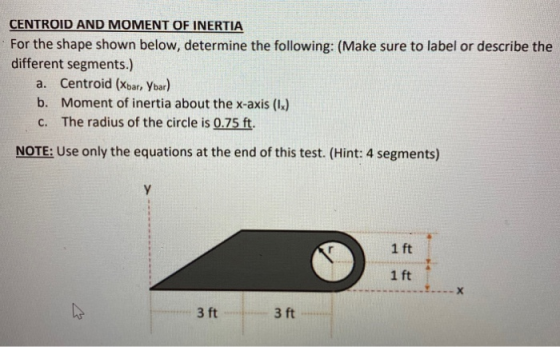

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (1x) C. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) y 1 ft 1 ft Х 3 ft 3 ft
CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to...

CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (1x) c. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) у 1 ft 1 ft X 3 ft 3 ft
2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (1x) C. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) y 1 ft 1 ft 3 ft 3 ft

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (lx) The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) C. у 1 ft 1 ft х 3 ft 3 ft
2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (lx) C. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) у 1 ft 1 ft 3 ft 3 ft Sõda S dA SỹdA j= S dA ΣΧΑ x= ΣΑ ΣΥΑ y =...
2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xoar, you) b. Moment of inertia about the x-axis (1) c. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) Y 1 ft 1 ft X 3 ft 3 ft

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure...

2. CENTROID AND MOMENT OF INERTIA For the shape shown below, determine the following: (Make sure to label or describe the different segments.) a. Centroid (Xbar, Ybar) b. Moment of inertia about the x-axis (lx) C. The radius of the circle is 0.75 ft. NOTE: Use only the equations at the end of this test. (Hint: 4 segments) у 1 ft 1 ft X 3 ft 3 3 ft ſõda Ž= S dA Sõda j = S dA ΣΧΑ ž=...
