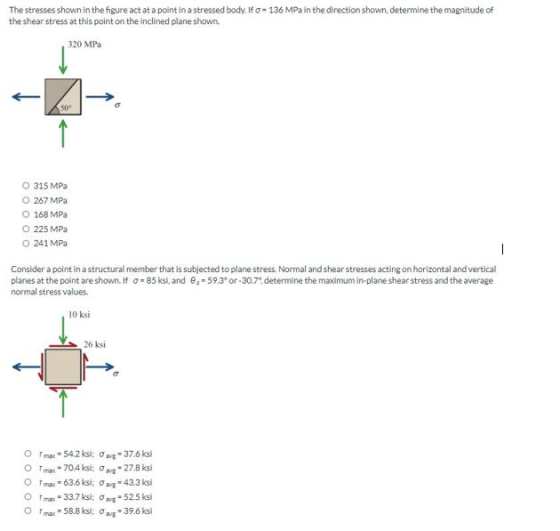

The stresses shown in the figure act at a point in a stressed body. If o...
P12.037 The stresses shown act at a point on the free surface of a stressed body....
P12.037 The stresses shown act at a point on the free surface of a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 98.00 MPa 20 MPa, and Sxv = 72 MPa. Assume B = 57. Determine the normal stresses on and ot and the shear stress Int at this point if they act on the rotated stress element shown. 5 Su 15 Answers: On= MPa o MPа Int =...
The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx...
The stresses shown act at a point in a stressed body. Assume
stress magnitudes of Sx = 5.7 ksi,
Sy = 10.6 ksi, Sxy = 11
ksi, and β=58∘. Using the equilibrium equation approach, determine
the normal and shear stresses σ (positive if tensile, negative if
compressive) and τ (magnitude only) at this point on the inclined
plane shown.
S, ty Answers: 12.6 ksi,t- ksi.
The stresses shown act at a point in a stressed body. Normal and shear stress magnitudes...
The stresses shown act at a point in a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 16 MPa, Sv = 29 MPa, and Syy = 32 MPa 1. Using the equilibrium equation approach, determine the normal and shear stresses o (positive if tensile, negative if compressive) and T = 8.13°, a = 7, and b Assume B tan (magnitude only) at this point on the inclined plane shown....
Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of...
Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx 66 MPa, Sy 45 MPa, Sxy 32 MPa, and/-52. Using the equilibrium equation approach, determine the normal and shear stresses ? (positive if tensile, negative if compressive) and t (magnitude only) at this point on the inclined plane shown. S, Answers: MPa. Answer * 1: the tolerance is +/-590
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes...
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx-83 MPa, Sy-54 MPa, Sxy-33 MPa, and β = 67°. Using the equilibrium equation approach, determine the normal and shear stresses σ (positive if tensile, negative if compressive) and τ (magnitude only) at this point on the inclined plane shown. Answers: MPa.
1,100 psi Problem 1 The stresses shown in Figure (a) act at a point on the...
1,100 psi Problem 1 The stresses shown in Figure (a) act at a point on the free surface of a stressed body. Determine the normal stresses on and o, and the shear stress that this point if they act on the rotated stress element shown in Figure (b). 1,750 psi 2,900 psi (b)
Problem 2 The normal and shear stresses act on normal and shear stresses at this point...
Problem 2 The normal and shear stresses act on normal and shear stresses at this point on the in equilibrium equations (free body wedge diagram) a stressed body as shown in the figure. Determine the clined plane 5 horizontal to 2 vertical using the (25 pts.) 86 MPa S8 MPa 45 MPa
2) The plane state of stresses at a point is as shown in the figure. Using...
2) The plane state of stresses at a point is as shown in the figure. Using the methods of your preference determine 1 ksi a) Principal stresses and maximum in-plane shear and represent them on a triangular element indicating angles and directions. 3 ksi 60° b) The normal and shear stress along plane ab
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
The stresses shown on the left act at a point on the free surface of a...
The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sx = 2,850 psi, Sy 1,300 psi, Sxy = 1,600 psi, and B = 27°. Determine the normal stresses On and Ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 tnt Soy Answers: on = 1 psi 0 = psi Tnt = psi
P12.037 The stresses shown act at a point on the free surface of a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 98.00 MPa 20 MPa, and Sxv = 72 MPa. Assume B = 57. Determine the normal stresses on and ot and the shear stress Int at this point if they act on the rotated stress element shown. 5 Su 15 Answers: On= MPa o MPа Int =...
The stresses shown act at a point in a stressed body. Assume
stress magnitudes of Sx = 5.7 ksi,
Sy = 10.6 ksi, Sxy = 11
ksi, and β=58∘. Using the equilibrium equation approach, determine
the normal and shear stresses σ (positive if tensile, negative if
compressive) and τ (magnitude only) at this point on the inclined
plane shown.
S, ty Answers: 12.6 ksi,t- ksi.
The stresses shown act at a point in a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 16 MPa, Sv = 29 MPa, and Syy = 32 MPa 1. Using the equilibrium equation approach, determine the normal and shear stresses o (positive if tensile, negative if compressive) and T = 8.13°, a = 7, and b Assume B tan (magnitude only) at this point on the inclined plane shown....
Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx 66 MPa, Sy 45 MPa, Sxy 32 MPa, and/-52. Using the equilibrium equation approach, determine the normal and shear stresses ? (positive if tensile, negative if compressive) and t (magnitude only) at this point on the inclined plane shown. S, Answers: MPa. Answer * 1: the tolerance is +/-590
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx-83 MPa, Sy-54 MPa, Sxy-33 MPa, and β = 67°. Using the equilibrium equation approach, determine the normal and shear stresses σ (positive if tensile, negative if compressive) and τ (magnitude only) at this point on the inclined plane shown. Answers: MPa.
1,100 psi Problem 1 The stresses shown in Figure (a) act at a point on the free surface of a stressed body. Determine the normal stresses on and o, and the shear stress that this point if they act on the rotated stress element shown in Figure (b). 1,750 psi 2,900 psi (b)
Problem 2 The normal and shear stresses act on normal and shear stresses at this point on the in equilibrium equations (free body wedge diagram) a stressed body as shown in the figure. Determine the clined plane 5 horizontal to 2 vertical using the (25 pts.) 86 MPa S8 MPa 45 MPa
2) The plane state of stresses at a point is as shown in the figure. Using the methods of your preference determine 1 ksi a) Principal stresses and maximum in-plane shear and represent them on a triangular element indicating angles and directions. 3 ksi 60° b) The normal and shear stress along plane ab
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sx = 2,850 psi, Sy 1,300 psi, Sxy = 1,600 psi, and B = 27°. Determine the normal stresses On and Ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 tnt Soy Answers: on = 1 psi 0 = psi Tnt = psi
