Add Answer to:

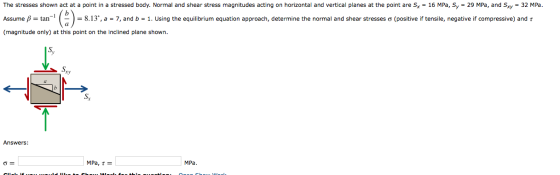

The stresses shown act at a point in a stressed body. Normal and shear stress magnitudes...
Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of...

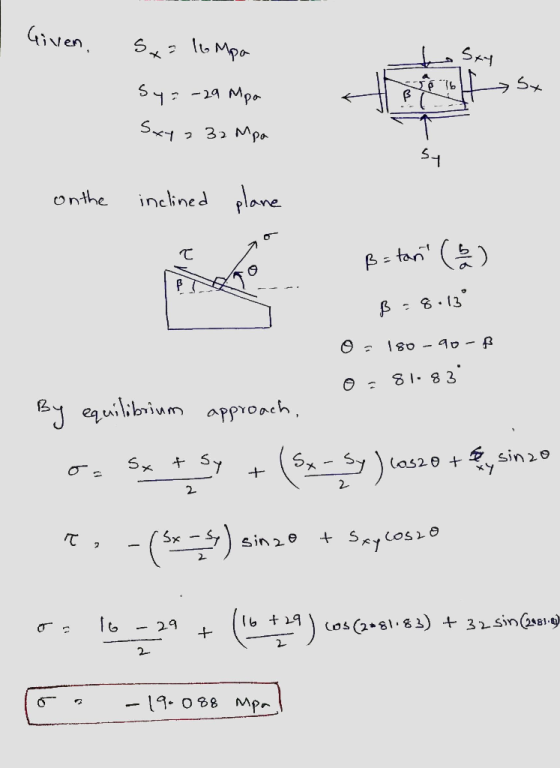

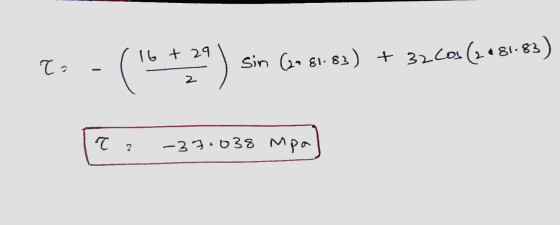

Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx 66 MPa, Sy 45 MPa, Sxy 32 MPa, and/-52. Using the equilibrium equation approach, determine the normal and shear stresses ? (positive if tensile, negative if compressive) and t (magnitude only) at this point on the inclined plane shown. S, Answers: MPa. Answer * 1: the tolerance is +/-590
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes...
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx-83 MPa, Sy-54 MPa, Sxy-33 MPa, and β = 67°. Using the equilibrium equation approach, determine the normal and shear stresses σ (positive if tensile, negative if compressive) and τ (magnitude only) at this point on the inclined plane shown. Answers: MPa.
The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx...
The stresses shown act at a point in a stressed body. Assume
stress magnitudes of Sx = 5.7 ksi,
Sy = 10.6 ksi, Sxy = 11
ksi, and β=58∘. Using the equilibrium equation approach, determine
the normal and shear stresses σ (positive if tensile, negative if
compressive) and τ (magnitude only) at this point on the inclined
plane shown.
S, ty Answers: 12.6 ksi,t- ksi.
P12.037 The stresses shown act at a point on the free surface of a stressed body....
P12.037 The stresses shown act at a point on the free surface of a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 98.00 MPa 20 MPa, and Sxv = 72 MPa. Assume B = 57. Determine the normal stresses on and ot and the shear stress Int at this point if they act on the rotated stress element shown. 5 Su 15 Answers: On= MPa o MPа Int =...
The stresses shown in the figure act at a point in a stressed body. If o...
The stresses shown in the figure act at a point in a stressed body. If o - 136 MPa in the direction shown, determine the magnitude of the shear stress at this point on the inclined plane shown, 320 MPa 50 O 315 MPa 267 MPa O 168 MPa O 225 MPa 0 241 MPa - Consider a point in a structural member that is subjected to plane stress. Normal and shear stresses acting on horizontal and vertical planes at...
Consider a point in a structural member that is subjected to plane stress. Normal and shear...
Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sx = 95.3 MPa, Sy = 79.3 MPa, and Sxy = 41.0 MPa. (a) Determine the principal stresses and the maximum in-plane shear stress acting at the point. (b) On your paper show these stresses in an appropriate sketch (e.g., see Figure 12.15 or Figure 12.16). (c) Compute the absolute maximum shear...
The stresses shown act at a point on the free surface of a machine component. Normal...
The stresses shown act at a point on the free surface of a machine component. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 12.4 ksi, Sy = 1.9 ksi, and Sxy = 3.4 ksi. Assume B = 32°. Determine the normal stresses Ox and Oy and the shear stress Try at the point. S σα B Answers: *1 ksi. Ox = Oy ksi. Try ksi.
P12.024 The stresses shown on the left act at a point on the free surface of...
P12.024 The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sy = 2,650 psi, Sy = 1,500 psi, Sxy = 1,850 psi, and ß = 27°. Determine the normal stresses on and ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 Sxy 0 n Answers: On = psi t = psi Tnt = psi
The stresses shown on the left act at a point on the free surface of a...
The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sx = 2,850 psi, Sy 1,300 psi, Sxy = 1,600 psi, and B = 27°. Determine the normal stresses On and Ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 tnt Soy Answers: on = 1 psi 0 = psi Tnt = psi
Problem 2 The normal and shear stresses act on normal and shear stresses at this point...
Problem 2 The normal and shear stresses act on normal and shear stresses at this point on the in equilibrium equations (free body wedge diagram) a stressed body as shown in the figure. Determine the clined plane 5 horizontal to 2 vertical using the (25 pts.) 86 MPa S8 MPa 45 MPa
Question1 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx 66 MPa, Sy 45 MPa, Sxy 32 MPa, and/-52. Using the equilibrium equation approach, determine the normal and shear stresses ? (positive if tensile, negative if compressive) and t (magnitude only) at this point on the inclined plane shown. S, Answers: MPa. Answer * 1: the tolerance is +/-590
Question 2 The stresses shown act at a point in a stressed body. Assume stress magnitudes of Sx-83 MPa, Sy-54 MPa, Sxy-33 MPa, and β = 67°. Using the equilibrium equation approach, determine the normal and shear stresses σ (positive if tensile, negative if compressive) and τ (magnitude only) at this point on the inclined plane shown. Answers: MPa.
The stresses shown act at a point in a stressed body. Assume
stress magnitudes of Sx = 5.7 ksi,
Sy = 10.6 ksi, Sxy = 11
ksi, and β=58∘. Using the equilibrium equation approach, determine
the normal and shear stresses σ (positive if tensile, negative if
compressive) and τ (magnitude only) at this point on the inclined
plane shown.
S, ty Answers: 12.6 ksi,t- ksi.
P12.037 The stresses shown act at a point on the free surface of a stressed body. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 98.00 MPa 20 MPa, and Sxv = 72 MPa. Assume B = 57. Determine the normal stresses on and ot and the shear stress Int at this point if they act on the rotated stress element shown. 5 Su 15 Answers: On= MPa o MPа Int =...
The stresses shown in the figure act at a point in a stressed body. If o - 136 MPa in the direction shown, determine the magnitude of the shear stress at this point on the inclined plane shown, 320 MPa 50 O 315 MPa 267 MPa O 168 MPa O 225 MPa 0 241 MPa - Consider a point in a structural member that is subjected to plane stress. Normal and shear stresses acting on horizontal and vertical planes at...
Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sx = 95.3 MPa, Sy = 79.3 MPa, and Sxy = 41.0 MPa. (a) Determine the principal stresses and the maximum in-plane shear stress acting at the point. (b) On your paper show these stresses in an appropriate sketch (e.g., see Figure 12.15 or Figure 12.16). (c) Compute the absolute maximum shear...
The stresses shown act at a point on the free surface of a machine component. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sy = 12.4 ksi, Sy = 1.9 ksi, and Sxy = 3.4 ksi. Assume B = 32°. Determine the normal stresses Ox and Oy and the shear stress Try at the point. S σα B Answers: *1 ksi. Ox = Oy ksi. Try ksi.
P12.024 The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sy = 2,650 psi, Sy = 1,500 psi, Sxy = 1,850 psi, and ß = 27°. Determine the normal stresses on and ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 Sxy 0 n Answers: On = psi t = psi Tnt = psi
The stresses shown on the left act at a point on the free surface of a stressed body. Assume stress magnitudes of Sx = 2,850 psi, Sy 1,300 psi, Sxy = 1,600 psi, and B = 27°. Determine the normal stresses On and Ok, and the shear stress Tnt at this point if they act on the rotated stress element shown on the right. 0 tnt Soy Answers: on = 1 psi 0 = psi Tnt = psi
Problem 2 The normal and shear stresses act on normal and shear stresses at this point on the in equilibrium equations (free body wedge diagram) a stressed body as shown in the figure. Determine the clined plane 5 horizontal to 2 vertical using the (25 pts.) 86 MPa S8 MPa 45 MPa
