3. (a) A solid conducting slab with thickness a little bit smaller than the separation between...
3. (a) A solid conducting slab with thickness a little bit smaller than the separation between...

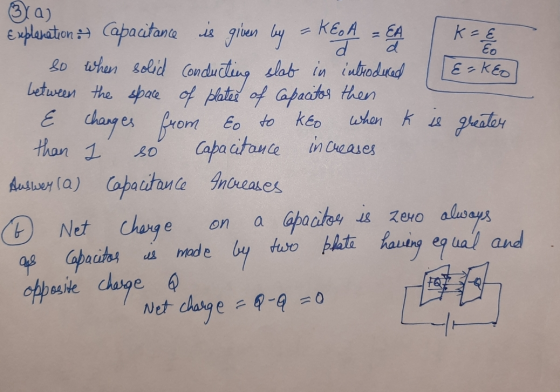

3. (a) A solid conducting slab with thickness a little bit smaller than the separation between the two plates of a capacitor is introduced between them. Does the capacitance increase, decrease, or stay the same? Explain (b) A capacitor is said to carry a charge what is the net charge on the entire capacitor? 4. Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at a distance d. The slab thickness is 50% of...
Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at...
Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at a distance d. The slab thickness is 50% of the plates spacing, with area that of the plates. (a) what happens to the capacitance (Hint: the thickness of the field region is reduced with the introduced slab) (b) What happens to the stored energy is the capacitor is isolated?
4. Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated...
4. Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at a distance d. The slab thickness is 50% of the plates spacing, with area that of the plates. (a) what happens to the capacitance (Hint: the thickness of the field region is reduced with the introduced slab) (b) What happens to the stored energy is the capacitor is isolated?
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area...
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
Copper (8e25p74) A slab of copper of thickness b = 1.273 mm is thrust into a...
Copper (8e25p74) A slab of copper of thickness b = 1.273 mm is thrust into a parallel-plate capacitor of C-9.00x10-11 F of gap d = 7.0 mm, as shown in the figure; it is centered exactly halfway between the plates. What is the capacitance after the slab is introduced? Submit Answer Tries 0/10 lf a charge q-4.00×10-6 C is maintained on the plates, what is the ratio of the stored energy before to that after the slab is inserted? Submit...
Mаппүеnu Grades Contents »Assignment #5 » 25-70 Slab of copper thrust into a parallel-plate capacitor Course...
Mаппүеnu Grades Contents »Assignment #5 » 25-70 Slab of copper thrust into a parallel-plate capacitor Course Contents » ... Evaluate Feedback Timer Notes Сopper A slab of copper of thickness b = 2.25 mm is thrust into a parallel-plate capacitor of plate area A = 2.40 cm2 and plate separation d = 5.50 mm, as shown in the figure; the slab is exactly halfway between the plates. What is the capacitance after the slab is introduced? Tries 0/10 Submit Answer...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery...
A parallel-plate capacitor has plates of area 0.13 m2 and a separation of 1.9 cm. A battery charges the plates to a potential difference of 150 V and is then disconnected. A dielectric slab of thickness 9.3 mm and dielectric constant 4.0 is then placed symmetrically between the plates. (a) What is the capacitance before the slab is inserted? (b) What is the capacitance with the slab in place? What is the free charge q (c) before and (d) after the slab is inserted? What is the magnitude of the...
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V....
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged...
A parallel-plate capacitor has plate area of 0.12 m2and plate separation 1.2 cm. It is charged by a battery to potential difference of 120 V, then disconnected. A dielectric slab, thickness 4.0 mm and dielectric constant 4.8, is placed symmetrically between the plates.(a) Calculate the capacitance before and after the slab is inserted.(b) Calculate the free charge q before and after the slab is inserted.(c) Calculate the magnitude of the electric field in the space between the plates and the...
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates.
The figure shows a parallel-plate capacitor of plate area A and plate separation d. A potential differenceV0 is applied between the plates. While the
battery remains connected, a dielectric slab of thickness b and dielectric constant κ is placed between the plates
as shown. Assume A = 130 cm2, d = 1.94
cm, V0 = 72.6 V, b = 0.735 cm, and κ =
3.15. Calculate (a) the capacitance,(b) the charge on the capacitor plates,(c) the electric field in the gap, and(d)...
3. (a) A solid conducting slab with thickness a little bit smaller than the separation between the two plates of a capacitor is introduced between them. Does the capacitance increase, decrease, or stay the same? Explain (b) A capacitor is said to carry a charge what is the net charge on the entire capacitor? 4. Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at a distance d. The slab thickness is 50% of...
4. Capacitors. A solid conducting slab is inserted between the plates of a charged capacitor, separated at a distance d. The slab thickness is 50% of the plates spacing, with area that of the plates. (a) what happens to the capacitance (Hint: the thickness of the field region is reduced with the introduced slab) (b) What happens to the stored energy is the capacitor is isolated?
Effect of a Metallic Slab A parallel-plate capocitor has a plate separation d and plate area A. An uncharged metallic slab of thickness a is inserted midway between the plates (b) The equivalent circuit of the device in part (a) consists of two capacitors in series, each having a plate separation (a) A parallel-plate capacitor of plate separation d partially filled with a metalic slab of (d-a) (a) Find the capacitance of the device. SOLUTION Conceptualize Figure (a) shows the...
Copper (8e25p74) A slab of copper of thickness b = 1.273 mm is thrust into a parallel-plate capacitor of C-9.00x10-11 F of gap d = 7.0 mm, as shown in the figure; it is centered exactly halfway between the plates. What is the capacitance after the slab is introduced? Submit Answer Tries 0/10 lf a charge q-4.00×10-6 C is maintained on the plates, what is the ratio of the stored energy before to that after the slab is inserted? Submit...
Mаппүеnu Grades Contents »Assignment #5 » 25-70 Slab of copper thrust into a parallel-plate capacitor Course Contents » ... Evaluate Feedback Timer Notes Сopper A slab of copper of thickness b = 2.25 mm is thrust into a parallel-plate capacitor of plate area A = 2.40 cm2 and plate separation d = 5.50 mm, as shown in the figure; the slab is exactly halfway between the plates. What is the capacitance after the slab is introduced? Tries 0/10 Submit Answer...
A parallel-plate capacitor of capacitance Co, plate area A, spacing d is charged to voltage V. and then disconnected from the charging battery. A slab with dielectric constant K and thickness d/2 is thrust into the capacitor, as shown in the figure below; the slab is exactly halfway between the plates. к (a) What is the new capacitance in terms of Co? (b) What is the ratio of the stored energy before to that after the slab is inserted (U/0.)?...
